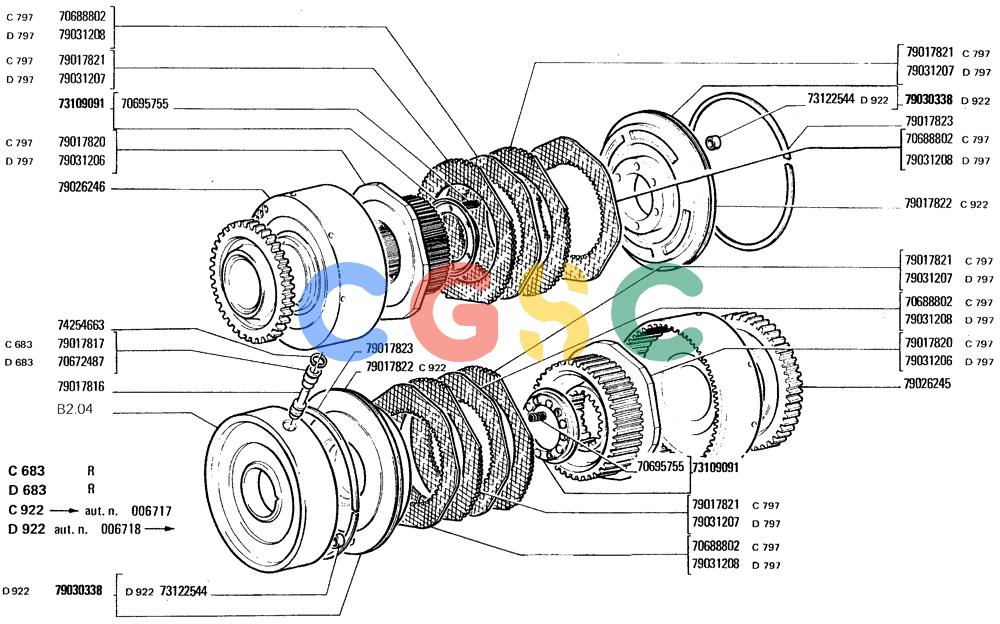

纽荷兰零件查询(FD20) - CRAWLER DOZER (B2.04/1[001]) - TRANSMISSION CLUTCHES New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
801 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 70642147. | 70642147 | [10] | PLATE | MKTCLUTCH DRIVING PLATE |
| 70672487. | 70672487 | [2] | SLEEVE | CMI |
| 70688802. | 70688802 | [20] | DISC | LECCLUTCH DRIVING PLATE |
| 70695755. | 70695755 | [12] | SPRING | CMI |
| 73109091. | 73109091 | [2] | CUP | CMI |
| 73122544. | 73122544 | [4] | SPACER | CMIBUSH |
| 74254663. | 74254663 | [2] | RING | MKTLOCKRING Superseded by part number: 70926800 |
| 79017816. | 79017816 | [2] | STD EXHAUST VALVE | LECVALVE |
| 79017817. | 79017817 | [2] | SLEEVE | LEC Superseded by part number: 70672487 |
| 79017820. | 79017820 | [2] | HUB | LEC Superseded by part number: 79031206 |
| 79017821. | 79017821 | [20] | DISC | LECCLUTCH DRIVING PLATE Superseded by part number: REFERENCE |
| 79017822. | 79017822 | [2] | PISTON | LEC Superseded by part number: 79030338 |
| 79017823. | 79017823 | [2] | O-RING | LECSEAL Superseded by part number: 73143625 |
| 79026245. | 79026245 | [1] | GEAR | LECDRUM Superseded by part number: 79030931 |
| 79026246. | 79026246 | [1] | GEAR | LECDRUM Superseded by part number: 79030929 |
| 79030338. | 79030338 | [2] | PISTON | LEC |
| 79031206. | 79031206 | [2] | HUB | LEC |
| 79031207. | 79031207 | [20] | DISC | LECCLUTCH DRIVING PLATE Superseded by part number: 79019030 |
| 79031208. | 79031208 | [20] | DISC | LECCLUTCH DRIVING PLATE |
