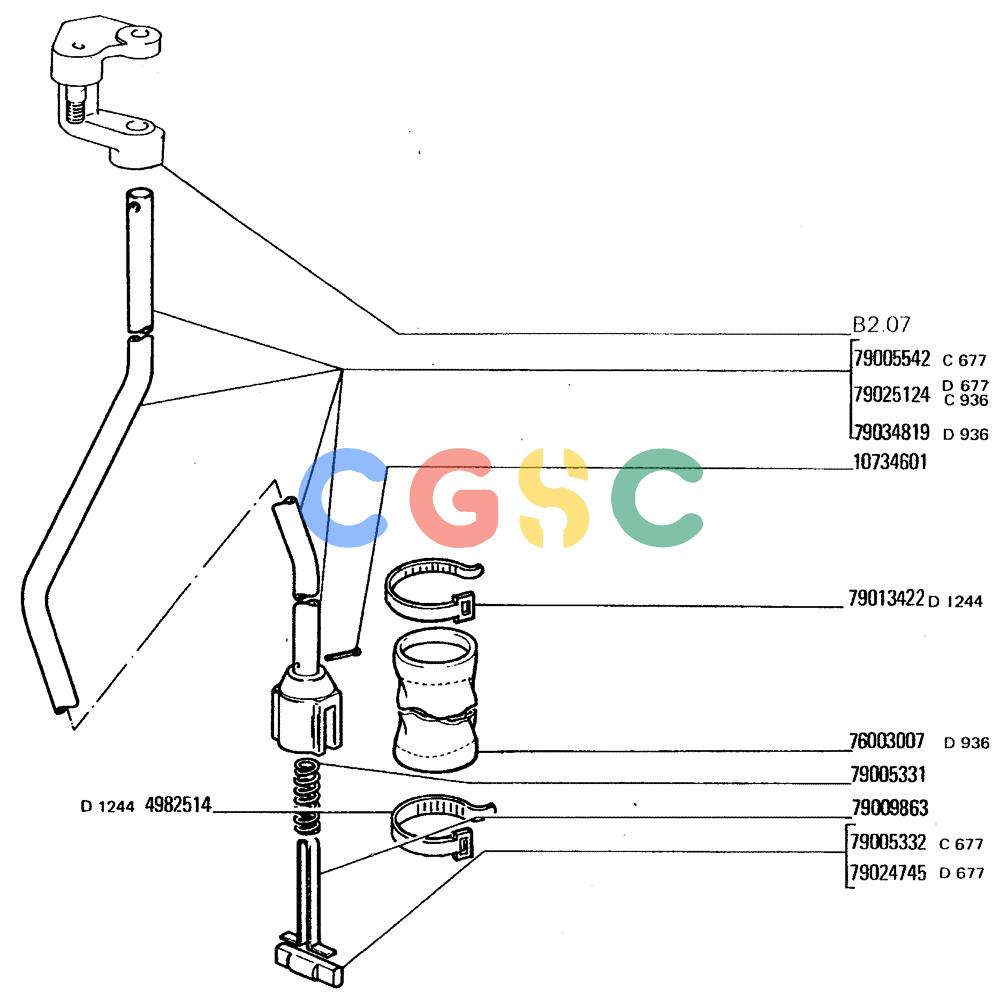

纽荷兰零件查询(FD20) - CRAWLER DOZER (B2.10[001]) - GEARSHIFT INNER CONTROLS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
960 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 4982514. | 4982514 | [1] | CABLE TIE | LECSTRAP Superseded by part number: 87615202 |
| 10734601. | 10734601 | [1] | COTTER PIN,3.2mm OD x 28mm OAL | WINSPLIT PIN Superseded by part number: |
| 76003007. | 76003007 | [1] | BOOT | LEC |
| 79005331. | 79005331 | [1] | SPRING | LEC |
| 79005332. | 79005332 | [1] | PIN | LEC Superseded by part number: 79024745 |
| 79005542. | 79005542 | [1] | SHAFT | LEC Superseded by part number: 79025124 |
| 79009863. | 79009863 | [1] | BRACKET | LEC |
| 79013422. | 79013422 | [1] | CABLE TIE,145mm L | LECSTRAP, CABLE, 145mm L |
| 79024745. | 79024745 | [1] | PIN | LEC |
| 79025124. | 79025124 | [1] | SHAFT | LEC |
| 79034819. | 79034819 | [1] | SHAFT | LEC |
