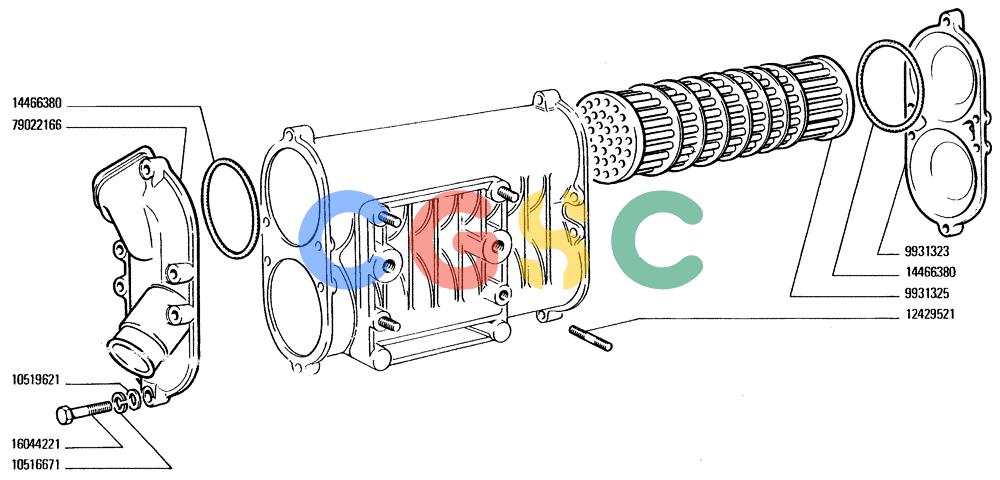

纽荷兰零件查询(FD20) - CRAWLER DOZER (B2.21[001]) - HEAT EXCHANGER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
279 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 9931323. | 9931323 | [1] | COVER | LEC |
| 9931325. | 9931325 | [2] | INTERNAL EXCHANGE UNIT | LECPIPE ASSY |
| 10516671. | 10516671 | [12] | LOCK WASHER | BHBLOCKWASHER Superseded by part number: 83990583 |
| 10519621. | 10519621 | [12] | WASHER,8.15mm ID x 17mm OD x 2mm Thk | BHB Superseded by part number: 10519624 |
| 12429521. | 12429521 | [4] | STUD | LEC |
| 14466380. | 14466380 | [4] | O-RING,0.139" Thk x 4.359" ID, -245, Cl 5, 75 Duro | MKTSEAL Superseded by part number: 14466381 |
| 16044221. | 16044221 | [12] | SCREW,Hex, M8 x 1.25 x 50mm, Cl 8.8 | TTFBOLT, Hex, M8 x 50, 8.8 Superseded by part number: 16606121 |
| 79022166. | 79022166 | [1] | COVER | LEC |
