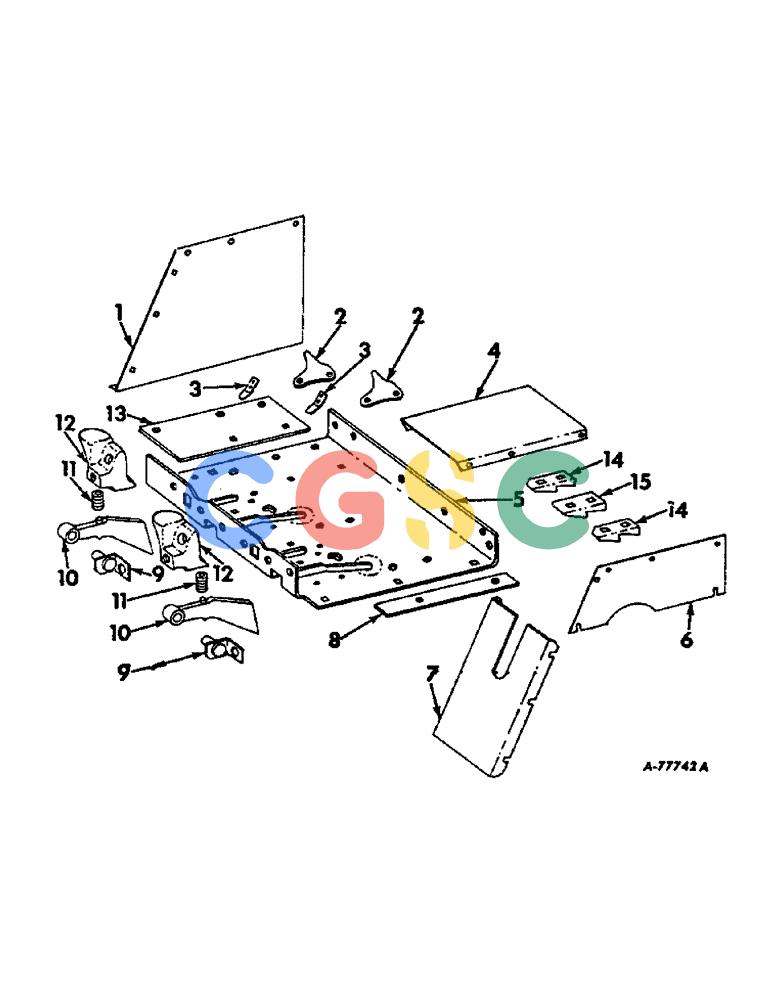

| 1. |
670638R1
|
[1] |
|
P
SHEET, knotter shield RH
|
| 2. |
495412R71
|
[2] |
NO LONGER SERVICED
|
IH
FINGER W/RIVETS, breast plate Superseded by part number: 495412R81
|
| . . |
104168
|
[4] |
RIVET,Csk, 1/4" x 7/8"
|
IH
Superseded by part number: 88929
|
| . . |
104166
|
[4] |
SCREW
|
BER
RIVET, 1/4 x 5/8 small csk-hd solid
|
| 3. |
662112R1
|
[2] |
SPRING
|
IH
twine retainer
|
| . . |
112620
|
[4] |
RIVET
|
IH
1/4 x 7/16 small csk-hd small Superseded by part number: 216378
|
| . . |
15543R1
|
[1] |
BOLT
|
IH
3/8 x 3/4 No. 3 plow
|
| . . |
102635
|
[1] |
NUT,3/8"-16, G5
|
IH
Superseded by part number: 280136
|
| . . |
103321
|
[1] |
LOCK WASHER,3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 4. |
670637R1
|
[1] |
|
P
SHEET, knotter shield top
|
| 5. |
670632R11
|
[1] |
STRIPPER
|
IH
PLATE ASSY, breast
|
| 6. |
670639R1
|
[1] |
|
P
SHEET, knotter shield LH
|
| 7. |
670640R1
|
[1] |
|
P
PANEL, knotter shield front
|
| . . |
14985R1
|
[4] |
BOLT
|
IH
1/4 x 1/2 sq-nk crg Superseded by part number: 598794R1
|
| . . |
14993R1
|
[3] |
|
P
BOLT, 1/4 x 3/4 sq-nk crg
|
| . . |
109084
|
[7] |
NUT,1/4"-20, G5
|
IH
Superseded by part number: 7770
|
| . . |
103319
|
[7] |
LOCK WASHER,1/4"
|
IH
WASHER, LOCK, 1/4" Superseded by part number: 92-11025
|
| . . |
Q392
|
[7] |
WASHER
|
CAS
9/32 x 3/4 x 18 ga Superseded by part number: 495-21031
|
| . . |
144811
|
[8] |
SCREW,Sl Rnd Hd, #10 - 12 x 1/2"
|
IH
10-12 x 1/2 C-Z slt-rd-hd tap Superseded by part number: 143306C1
|
| 8. |
662149R1
|
[1] |
|
P
FILLER, breast plate LH
|
| 9. |
670633R91
|
[2] |
SUPPORT
|
IH
BRACKET ASSY, hay retainer
|
| . . |
17426R1
|
[2] |
BOLT,Hex, 3/8" - 16 x 1", Gr 2
|
IH
3/8 x 1 hex-hd mach Superseded by part number: 24840R1
|
| 10. |
670636R1
|
[2] |
RETAINER
|
IH
hay top
|
| 11. |
668869R1
|
[2] |
SPRING
|
IH
hay retainer
|
| 12. |
662009R3
|
[2] |
ANCHOR
|
IH
knotter Superseded by part number: 662009R4
|
| . . |
15551R1
|
[2] |
BOLT,3/8"-16 x 1", G2, Full Thd
|
IH
3/8 x 1 No. 3 plow Superseded by part number: 419-3616
|
| . . |
93-41039
|
[2] |
LOCK WASHER,Ext Tooth, 3/8"
|
CAS
WASHER, 3/8 ext-tooth lock Superseded by part number: 280295
|
| . . |
17447R1
|
[2] |
BOLT
|
IH
7/16 x 1-1/4 hex-hd mach
|
| . . |
103322
|
[2] |
LOCK WASHER,7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| . . |
W6652
|
[2] |
WASHER
|
IH
15/32 x 1 x 16 ga Superseded by part number: 495-81158
|
| 13. |
667780R2
|
[1] |
|
P
STRAP, filler breast plate RH
|
| . . |
14995R1
|
[1] |
BOLT
|
IH
3/8 x 3/4 sq-nk crg Superseded by part number: 19284R1
|
| . . |
17412R1
|
[2] |
BOLT,Hex, 3/8" - 16 x 3/4", Gr 2
|
IH
3/8 x 3/4 hex-hd mach Superseded by part number: 86500692
|
| 14. |
495929R2
|
[2] |
WEDGE
|
IH
hay retainer narrow
|
| . . |
80280503
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
|
BEL
BOLT, 3/8 x 1 sq-nk crg
|
| 15. |
495930R1
|
[1] |
WEDGE
|
IH
hay retainer wide
|
| . . |
15009R1
|
[2] |
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
|
IH
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G2, Full Thd Superseded by part number: 412-716
|
| . . |
NLS
|
[2] |
NO LONGER SERVICED
|
BAS
7/16-14 hex.
|
