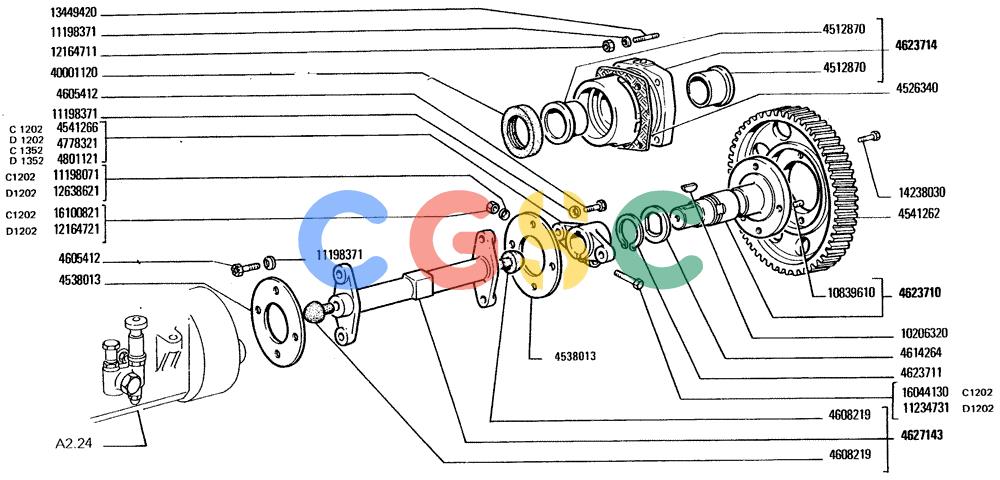

纽荷兰零件查询(FD20) - CRAWLER DOZER (A1.16[001]) - INJECTION PUMP DRIVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
510 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 4512870. | 4512870 | [2] | BUSHING | BRE |
| 4526340. | 4526340 | [1] | SEAL | BRE Superseded by part number: 4837644 |
| 4538013. | 4538013 | [14] | DISC | BREDISK |
| 4541262. | 4541262 | [1] | GEAR | BRE |
| 4541266. | 4541266 | [1] | SLEEVE | MKT Superseded by part number: 12164721, 12638621, 4778321 |
| 4605412. | BRE4605412 | [8] | SCREW | BRE |
| 4608219. | 4608219 | [2] | INSULATOR BLOCK | BREPAD |
| 4614264. | 4614264 | [1] | DISC | BREWASHER |
| 4623710. | 4623710 | [1] | SHAFT | BRE |
| 4623711. | 4623711 | [1] | O-RING,33" ID x 4.25" Width | BRELOCKRING |
| 4623714. | 4623714 | [1] | SUPPORT | BRE |
| 4627143. | 4627143 | [1] | SHAFT | BRE Superseded by part number: 4626943, 4608219 |
| 4778321. | 4778321 | [1] | HOSE | LECSLEEVE Superseded by part number: 4801121 |
| 4801121. | 4801121 | [1] | SUPPORT | BRESLEEVE Superseded by part number: 98442366 |
| 10206320. | 10206320 | [1] | KEY | MKTFEATHER KEY |
| 10839610. | 10839610 | [1] | DOWEL,M8 x 12mm | TOR |
| 11198071. | 11198071 | [1] | BELLEVILLE WASHER,Belleville, M8.4 | TORWASHER, SPRING, Belleville, M8.4 Superseded by part number: |
| 11198371. | 11198371 | [12] | BELLEVILLE WASHER,Belleville, M10.5 | MKTLOCKWASHER Superseded by part number: 11198374 |
| 11234731. | 11234731 | [1] | SCREW,Hex, M10 x 1.25 x 45mm, Cl 10.9 | LECBOLT, Hex, M10 x 1.25 x 45, 10.9 |
| 12164711. | 12164711 | [4] | NUT,M10 x 1.25, Cl 8 | TTF Superseded by part number: 12164714 |
| 12164721. | 12164721 | [1] | NUT,M10 x 1.25, Cl 10 | TTF |
| 12638621. | 12638621 | [1] | WASHER,M10 x 18 x 2 | BHBLOCKWASHER Superseded by part number: 17095014 |
| 13449420. | 13449420 | [4] | STUD | MKT Superseded by part number: 13449424 |
| 14238030. | 14238030 | [4] | SCREW,M8 x 1.25 x 30mm | JES Superseded by part number: |
| 16044130. | 16044130 | [1] | BOLT,Hex, M8 x 45, 10.9 | MKTSCREW Superseded by part number: 16044131 |
| 16100821. | 16100821 | [1] | NUT,M8, Cl 10 | LEC Superseded by part number: 43362 |
| 40001120. | 40001120 | [1] | SEAL | MKTO-RING Superseded by part number: 40001124 |
