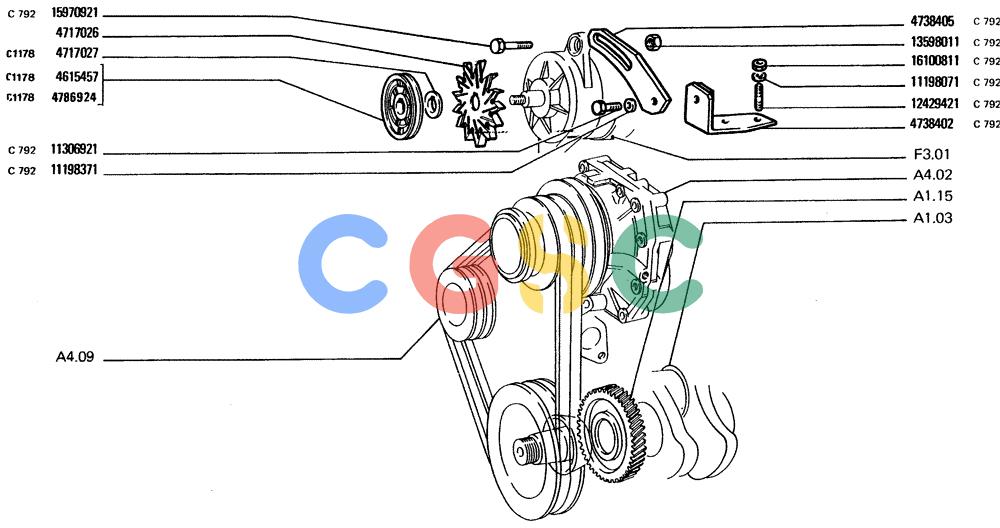

纽荷兰零件查询(FD20) - CRAWLER DOZER (A1.19[001]) - ALTERNATOR DRIVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
864 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 4615457. | 4615457 | [1] | DRIVEN PULLEY | MOD Superseded by part number: 4600130 |
| 4717026. | 87750659 | [1] | FAN | TORBLOWER |
| 4717027. | 4717027 | [1] | WASHER | MODSPACER |
| 4738402. | 4738402 | [1] | SUPPORT | LEC |
| 4738405. | 4738405 | [1] | TOP LINK | LECBELT STRETCHER |
| 4786924. | 4808603 | [1] | PULLEY | MODDRIVEN PULLEY Superseded by part number: 4814180 |
| 11198071. | 11198071 | [2] | BELLEVILLE WASHER,Belleville, M8.4 | TORWASHER, SPRING, Belleville, M8.4 Superseded by part number: |
| 11198371. | 11198371 | [1] | BELLEVILLE WASHER,Belleville, M10.5 | MKTLOCKWASHER Superseded by part number: 11198374 |
| 11306921. | 11306921 | [1] | SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd | HFIBOLT, Hex, M10 x 1.25 x 30, 8.8, Full Thd Superseded by part number: 11306924 |
| 12429421. | 12429421 | [2] | STUD | MKT Superseded by part number: 12429420 |
| 13598011. | 13598011 | [1] | NUT | MOD Superseded by part number: 13598021 |
| 15970921. | 15970921 | [1] | SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd | TTFBOLT, Hex, M10 x 1.25 x 35, 8.8, Full Thd Superseded by part number: 16204524 |
| 16100811. | 16100811 | [2] | NUT,Hex, M8, 6.80mm, Cl 8, ZND | TTFM8, Cl 8 Superseded by part number: 43362 |
