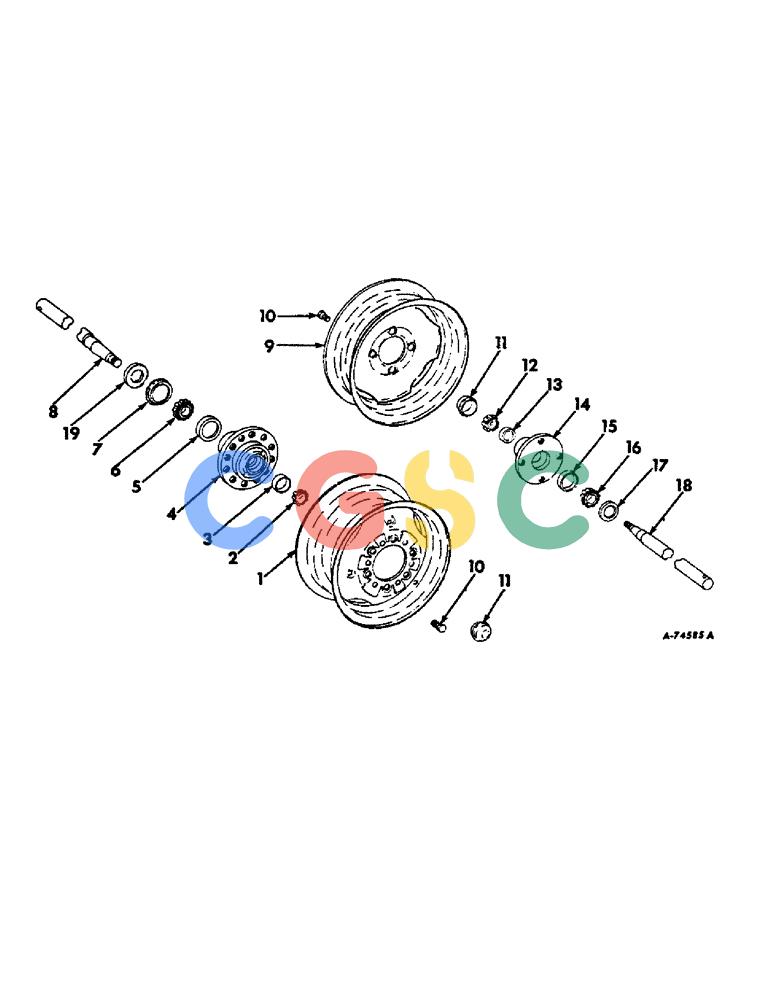

| 1. |
518823R91
|
[1] |
WHEEL
|
IH
RIM ASSY, left wheel
|
| 2. |
519467R91
|
[1] |
BEARING ASSY,0.8125" ID x 1.939" OD x 0.848"
|
IH
ASSY, left wheel outer cone Superseded by part number: 86613102
|
| 3. |
M32951
|
[1] |
BEARING CUP,0.75" ID x 1.938" OD x 0.78125"
|
IH
BEARING, left wheel outer cup Superseded by part number: 86539200
|
| 4. |
662993R11
|
[1] |
HUB
|
IH
W/BEARING CUPS & BOLTS, wheel LH
|
| 5. |
54628H
|
[1] |
BEARING CUP,1.375" ID x 2.717" OD x 0.7813, 0.6250"
|
IH
BEARING, left wheel inner cup Superseded by part number: ST991
|
| 6. |
453279R91
|
[1] |
ROLLER BEARING,1.375" ID x 2.717" OD x 1.0625"
|
IH
ASSY, left wheel inner cone Superseded by part number: 36737
|
| 7. |
670702R1
|
[1] |
SPINDLE
|
IH
wheel LH
|
| . . |
427639
|
[1] |
SLOTTED NUT,3/4"-16, G5
|
IH
NUT, 3/4-16 slt-hex. Superseded by part number: 129-290
|
| . . |
615168R1
|
[1] |
WASHER
|
IH
25/32 x 1-1/2 x 11 ga Superseded by part number: 95-81024
|
| . . |
103397
|
[1] |
COTTER PIN,5/32" x 1 1/4"
|
IH
Pin, Split (Cotter), 5/32" x 1 1/4" Superseded by part number: 132-341
|
| 9. |
662994R91
|
[1] |
WHEEL
|
IH
RIM ASSY, right wheel
|
| 10. |
351079R1
|
[10] |
BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"
|
IH
wheel Superseded by part number: 32383
|
| 11. |
651194R1
|
[2] |
CAP
|
IH
hub
|
| 12. |
651815R91
|
[1] |
BEARING ASSY,7.508" ID x 17.82" OD x 6"
|
IH
BEARING ASSY, right wheel outer cone Superseded by part number: 179080
|
| 12. |
651815R91GV
|
[1] |
BEARING CONE
|
MKT
Value, Cone Bearing
|
| 13. |
651814R1
|
[1] |
BEARING CUP
|
IH
BEARING, right wheel outer cup Superseded by part number: 36725
|
| 14. |
663054R91
|
[1] |
HUB
|
IH
W/BEARING CUPS & BOLTS, wheel RH
|
| 15. |
651817R1
|
[1] |
BEARING CUP
|
IH
BEARING, right wheel inner cup Superseded by part number: 84356153
|
| 15. |
651817R1GV
|
[1] |
BEARING CUP
|
MKT
Value, Bearing Cup
|
| 16. |
651818R91
|
[1] |
ROLLER BEARING,31.77 mm ID x 16.08 mm
|
IH
BEARING ASSY, right wheel inner cone Superseded by part number: 84356153
|
| 17. |
663004R91
|
[1] |
OIL SEAL
|
IH
right wheel brg oil Superseded by part number: B13281
|
| 18. |
670864R1
|
[1] |
|
P
SPINDLE, wheel RH
|
| . . |
102649
|
[1] |
SLOTTED NUT,5/8"-18, G5
|
IH
NUT, 5/8"-18, G5 Superseded by part number: 87446
|
| . . |
496-21066
|
[1] |
WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk
|
CAS
21/32 x 1-5/16 x .095 Superseded by part number: 5122064
|
| . . |
103396
|
[1] |
PIN, SPLIT (COTTER),5/32" x 1"
|
IH
5/32" x 1" Superseded by part number: 120169
|
