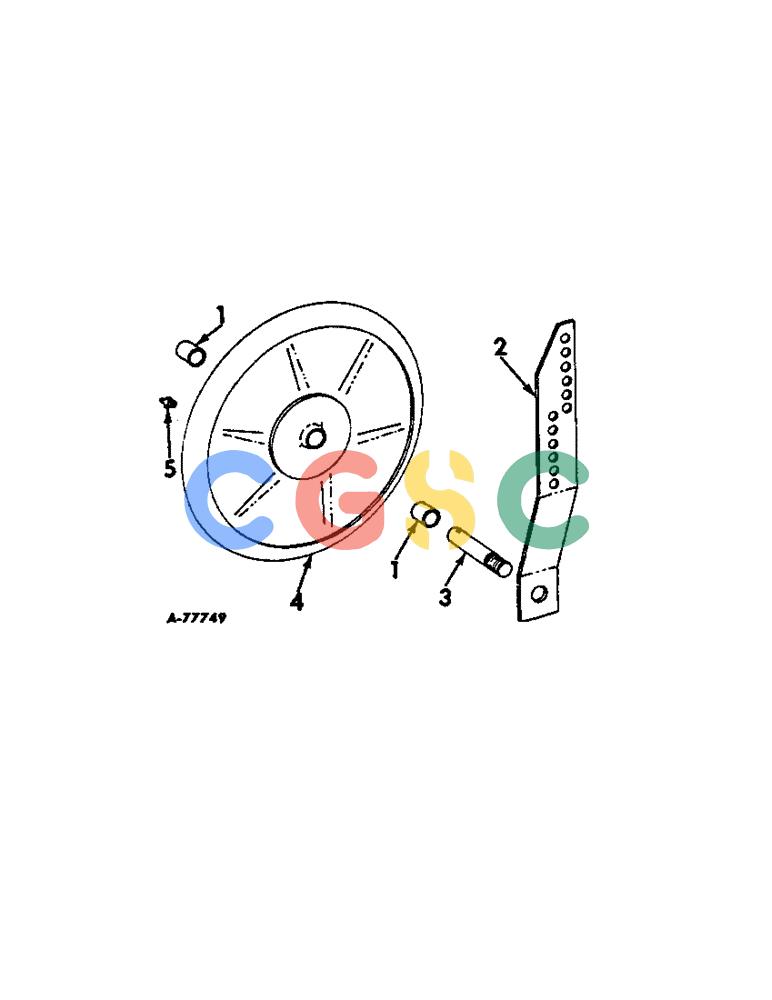

凯斯零件查询(27) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/65-12/68) (C-32[A]) - PICKUP WHEEL ATTACHMENT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
805 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
659918R1
|
[2] |
BUSHING
|
IH
pickup wheel
|
| 2. |
670691R1
|
[1] |
BRACKET
|
IH
pickup gauge wheel
|
| . . |
179841
|
[2] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
|
IH
3/8-16 x 1-1/4 hex-hd cap Superseded by part number: 88011
|
| . . |
103321
|
[2] |
LOCK WASHER,3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| . . |
Q1505
|
[2] |
WASHER
|
IH
13/32 x 1 x 16 ga Superseded by part number: 495-21044
|
| 3. |
670692R1
|
[1] |
SHAFT
|
IH
pickup gauge wheel
|
| . . |
220081
|
[2] |
SEALING ELEMENT
|
NNA
3/4-10 hex. Superseded by part number: 425-1012, 425-1012, 84814913
|
| . . |
575813R1
|
[2] |
WASHER
|
IH
25/32 x 1-1/4 x 11 ga (or as req) Superseded by part number: 87024778
|
| . . |
103409
|
[1] |
PIN, SPLIT (COTTER),3/16" x 1 1/2"
|
IH
Superseded by part number: 20328R1
|
| 4. |
659917R91
|
[1] |
|
P
WHEEL ASSY, pickup
|
| 5. |
219-37
|
[1] |
LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF
|
CAS
FITTING, 1/4-28 NS 45 deg angle lub, replaces 274508 Superseded by part number: 87569
|
