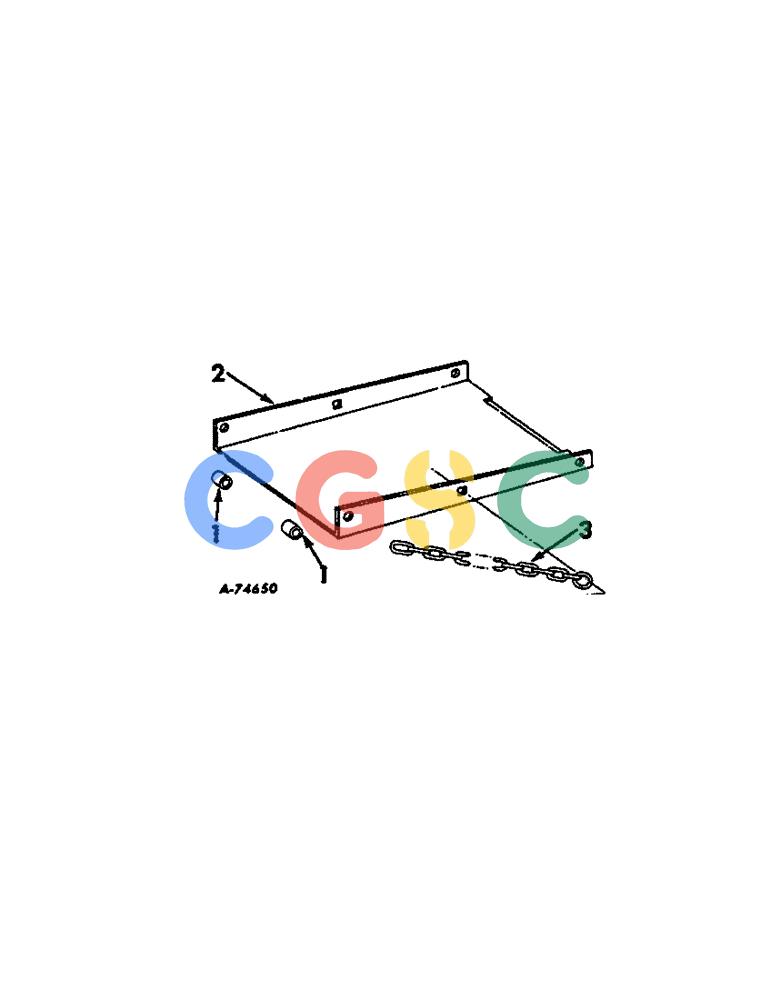

凯斯零件查询(27) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/65-12/68) (C-32[B]) - BALE CHUTE ATTACHMENT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
662 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
661290R1
|
[2] |
SPACER
|
IH
bale chute Superseded by part number: 359105R1
|
| 2. |
667882R2
|
[1] |
CHUTE ASSY.
|
IH
CHUTE, bale Superseded by part number: 203091C1
|
| . . |
86508749
|
[2] |
CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5
|
GI
BOLT, 3/8 x 1-1/4 sq-nk crg
|
| . . |
14995R1
|
[2] |
BOLT
|
IH
3/8 x 3/4 sq-nk crg Superseded by part number: 19284R1
|
| . . |
102635
|
[4] |
NUT,3/8"-16, G5
|
IH
Superseded by part number: 280136
|
| . . |
575807R1
|
[2] |
WASHER
|
IH
13/32 x 1 x 11 ga Superseded by part number: 95-81086
|
| 3. |
669647R1
|
[2] |
CHAIN (AG)
|
IH
CHAIN, bale chute
|
| . . |
668986R1
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5
|
IH
BOLT, 5/16 x 1-1/4 sq-nk crg Superseded by part number: 280827
|
| . . |
657803R1
|
[2] |
|
P
NUT, 5/16-18 wing
|
| . . |
9635082
|
[2] |
NUT,5/16" - 18, Gr 5
|
NH
5/16-18 hex.
|
| . . |
103320
|
[2] |
LOCK WASHER,5/16"
|
IH
WASHER, LOCK, 5/16" Superseded by part number: 322358, 83990583
|
| . . |
Q397
|
[2] |
WASHER
|
IH
11/32 x 3/4 x 16 ga Superseded by part number: 95-81069
|
