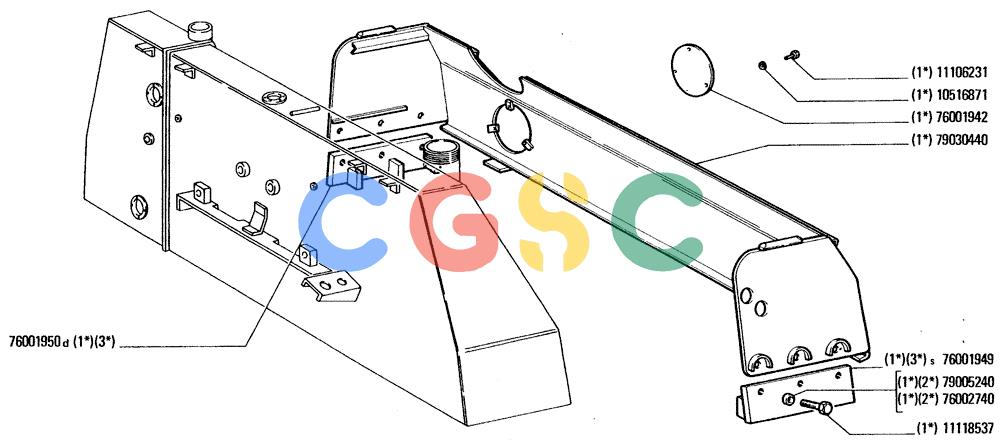

纽荷兰零件查询(FD20) - CRAWLER DOZER (A2.01[002]) - FUEL TANK AND LINES New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
899 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 10516871. | 10516871 | [3] | LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk | HFILOCKWASHER Superseded by part number: 10571873 |
| 11106231. | 11106231 | [3] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LECBOLT, Hex, M10 x 25, 10.9, Full Thd |
| 11118537. | 11118537 | [6] | SCREW | LEC Superseded by part number: 374835 |
| 76001942. | 76001942 | [1] | COVER | LEC |
| 76001949. | 76001949 | [1] | SUPPORT | LEC |
| 76001950. | 76001950 | [1] | SUPPORT | LEC |
| 76002740. | 76002740 | [6] | WASHER | LEC Superseded by part number: 79032222 |
| 79005240. | 79005240 | [6] | WASHER,16.8mm ID x 36mm OD x 8mm Thk | LEC |
| 79030440. | 79030440 | [1] | GUARD | LECPROTECTION |
