纽荷兰零件查询(FD20) - CRAWLER DOZER (A2.22/1[001]) - AIR PRECLEANER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
358 次

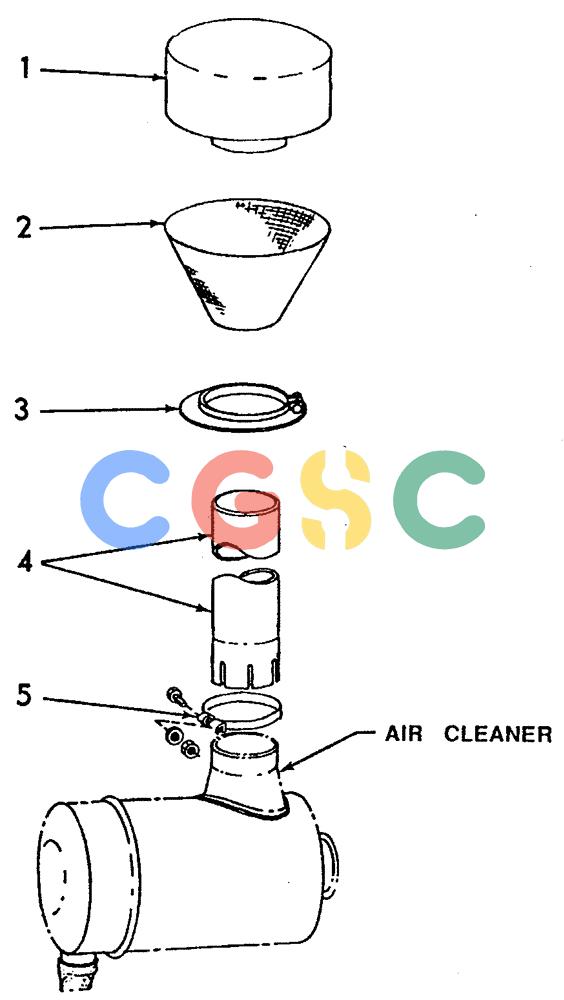

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73153017 | [1] | CONTAINER | HITPRECLEANER |
| 2. | 73153018 | [1] | MESH | NHSCREEN |
| 3. | 12185290 | [1] | COLLAR | LECCLAMP Superseded by part number: 79083855 |
| 4. | 70645029 | [1] | RIGID TUBE | CMITUBE |
| 5. | 76000170 | [1] | WASHER | LECCLAMP |
| 5. | 11112231 | [1] | SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | LECCAPSCREW , 3/8''NFX3-1/4'' Superseded by part number: 398792 |
| 5. | 10517071 | [1] | LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk | HFIWASHER Superseded by part number: 10517073 |
| 5. | 11702921 | [1] | NUT,M12, Cl 10 | LEC3/8'' NF Superseded by part number: 17038425 |
