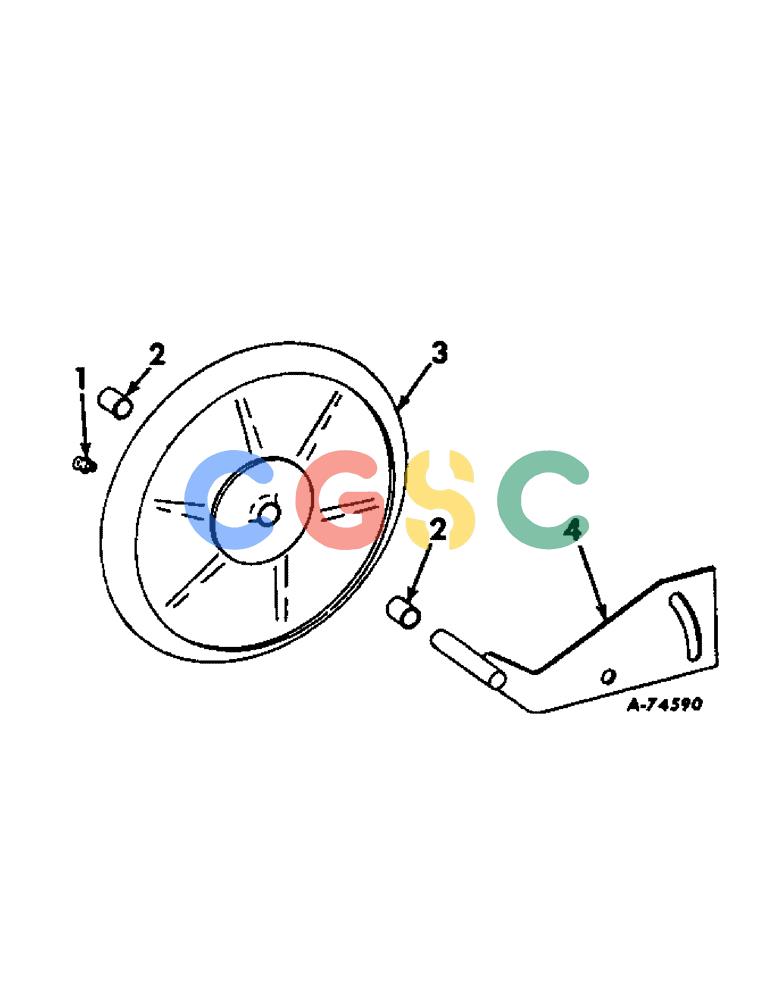

凯斯零件查询(37) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/63-12/88) (B-17[A]) - PICKUP WHEEL STEEL, WHEN ORDERED Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
195 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
274508
|
[1] |
LUBE NIPPLE
|
IH
FITTING, 1/4-28NS 45 deg angle lub Superseded by part number: 87569
|
| 2. |
659918R1
|
[2] |
BUSHING
|
IH
pickup wheel
|
| 3. |
659917R91
|
[1] |
|
P
WHEEL, pickup
|
| 4. |
667723R91
|
[1] |
|
P
BRACKET ASSY, pickup wheel
|
| . . |
NLS
|
[1] |
NO LONGER SERVICED
|
BAS
13/16 x 1-1/2 x 10 ga
|
| . . |
18795R1
|
[2] |
BOLT,Hex, 7/16"-14 x 1 1/4", G2
|
IH
7/16-14 x 1-1/4 CDP hex-hd mach Superseded by part number: 179860
|
| . . |
120383
|
[2] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| . . |
W6652
|
[1] |
WASHER
|
IH
15/32 x 1 x 16 ga Superseded by part number: 495-81158
|
| . . |
Q3501
|
[2] |
WASHER
|
IH
25/32 x 1-1/4 x 16 ga Superseded by part number: 95-81056
|
| . . |
187988
|
[1] |
COTTER PIN,3/16" x 1 1/4"
|
IH
PIN, SPLIT (COTTER), 3/16" x 1 1/4" Superseded by part number: 87398
|
