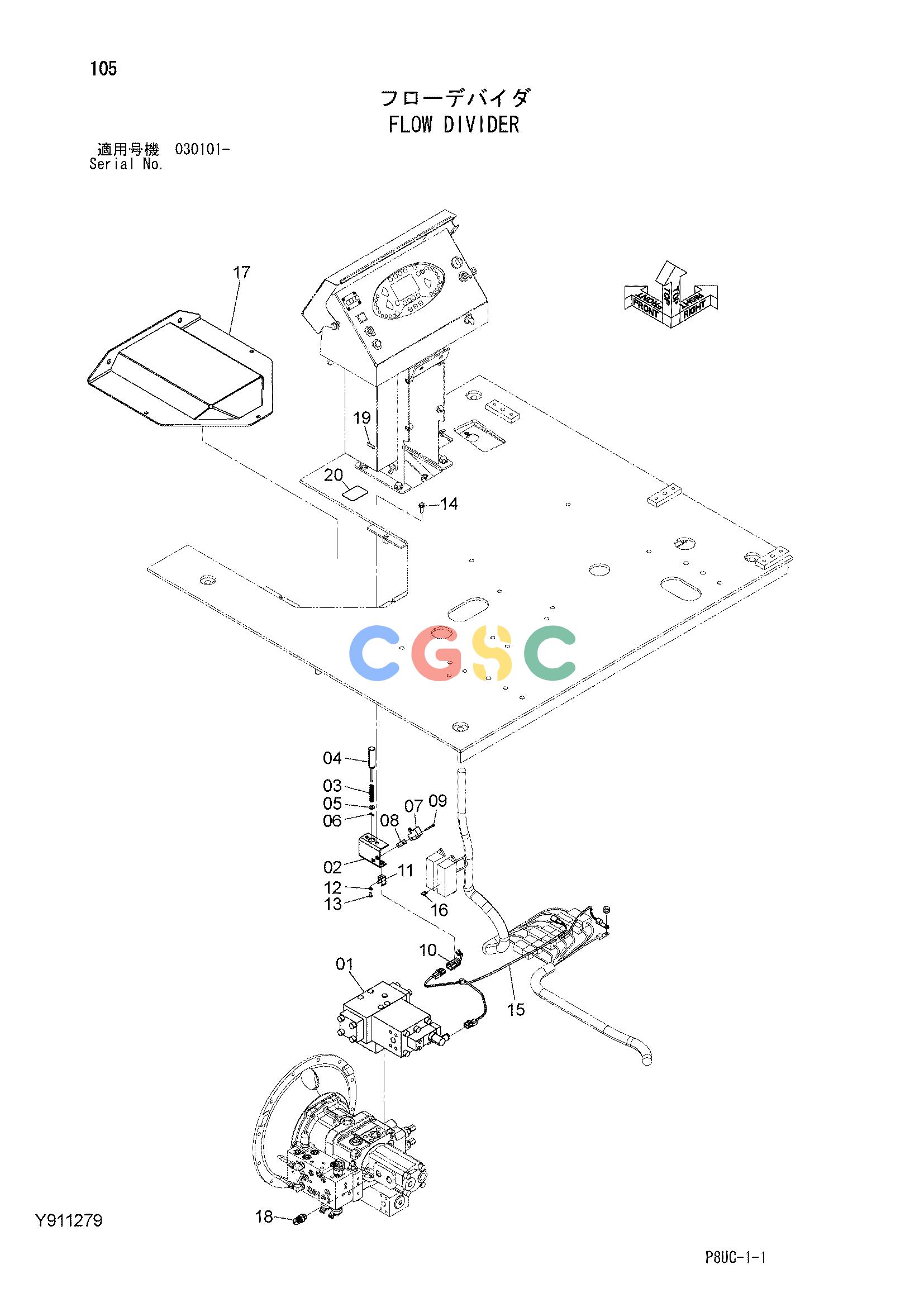

日立零件查询（CP220-3）FLOW DIVIDER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
811 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y411418 | [1] | VALVE | |
| 02. | 8046469 | [1] | BRACKET | |
| 03. | 4261680 | [1] | SPRING;COMPRES. | |
| 04. | 4261679 | [1] | ROD | |
| 05. | A590108 | [1] | WASHER;PLANE | |
| 06. | A763016 | [1] | PIN;SPLIT | |
| 07. | 4261681 | [1] | SWITCH;LIMIT | |
| 08. | 4261671 | [1] | SPACER | |
| 09. | J450435 | [2] | SCREW;SEMS | |
| 10. | 4313480 | [1] | HARNESS;WIRE | |
| 11. | 4243527 | [1] | BRACKET | |
| 12. | A590906 | [1] | WASHER;SPRING | |
| 13. | M430613 | [1] | SCREW | |
| 14. | J260825 | [2] | BOLT;SEMS | |
| 14A. | J900825 | [1] | BOLT | |
| 14B. | A590108 | [1] | WASHER;PLANE | |
| 15. | Y417437 | [1] | HARNESS;WIRE | |
| 16. | 4428910 | [1] | FUSE | |
| 17. | Y802760 | [1] | COVER | |
| 18. | A852333 | [1] | ELBOW;S | |
| 18A. | 4509180 | [1] | O-RING | |
| 19. | Y417824 | [1] | DECAL (FUSE) | |
| 20. | Y417825 | [1] | DECAL | (DIFF. LOCKING SWITCH) |
