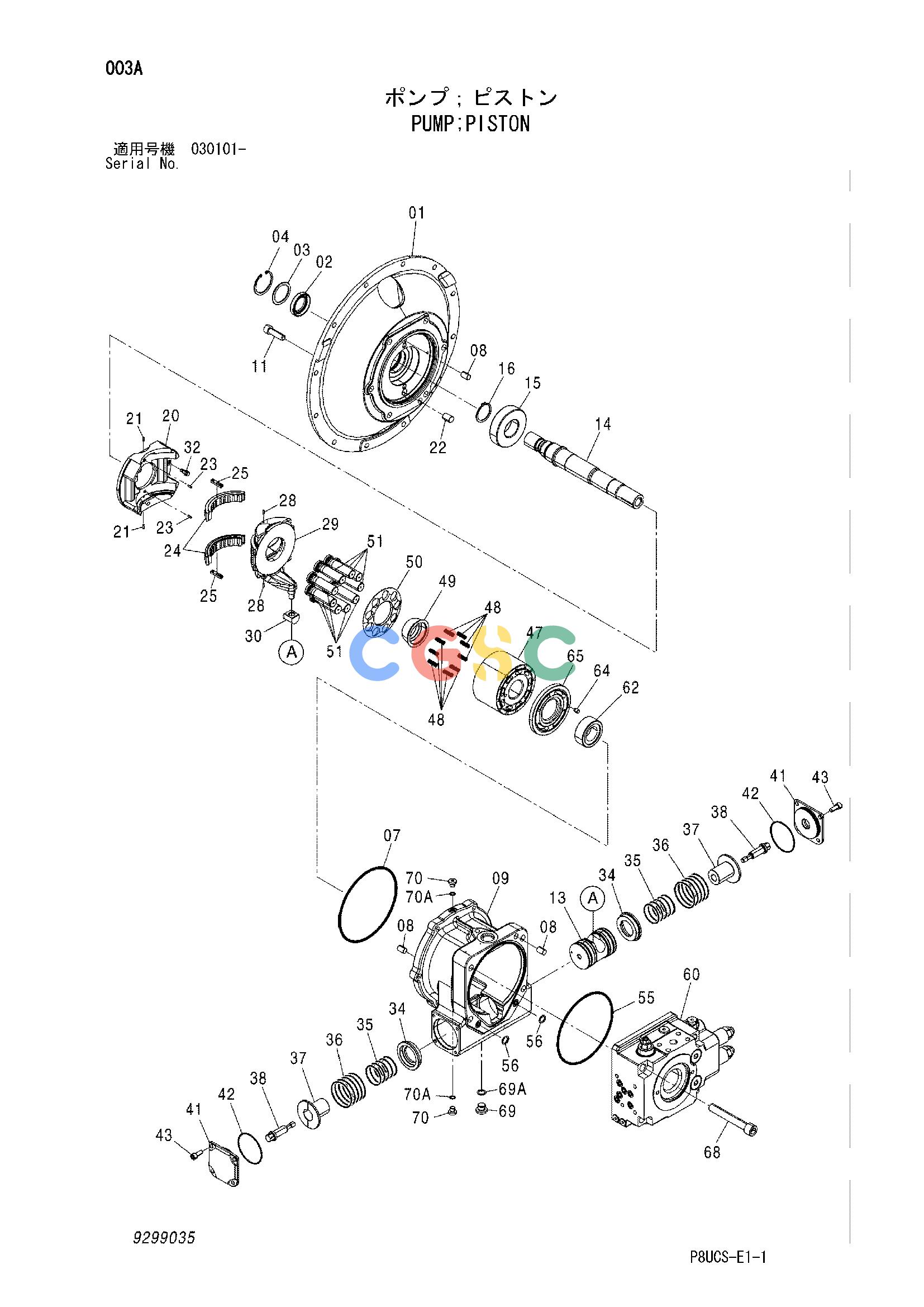

日立零件查询（CP220-3）PUMP;PISTON Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
838 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | +++++++ | [1] | PUMP;PISTON | |
| 01. | 1033907 | [1] | CASING;FRONT | |
| 02. | 4320490 | [1] | SEAL;OIL | |
| 03. | 4665799 | [1] | PLATE | |
| 04. | 930451 | [1] | RING;RETAINING | |
| 07. | 4410166 | [1] | O-RING | |
| 08. | 4409640 | [3] | PIN;KNOCK | |
| 09. | 1033965 | [1] | CASING;PUMP | |
| 11. | M341245 | [6] | BOLT;SOCKET | |
| 13. | 3109741 | [1] | PISTON;SERVO | |
| 14. | 2054173 | [1] | SHAFT;DRIVE | |
| 15. | 4653144 | [1] | BRG.;ROL. | |
| 16. | 962002 | [1] | RING;RETAINING | |
| 20. | 2054175 | [1] | PLATE;CRADLE | |
| 21. | 4120550 | [2] | NEEDLE | |
| 22. | 4463033 | [1] | PIN;KNOCK | |
| 23. | 4666998 | [2] | PIN;KNOCK | |
| 24. | 4666997 | [2] | BRG. | |
| 25. | 4667767 | [2] | PIN;LINK | |
| 28. | 4144008 | [2] | PIN;SPRING | |
| 29. | 2054269 | [1] | PLATE;SWASH | |
| 30. | 4667768 | [1] | SLIDER | |
| 32. | 4665846 | [1] | BOLT;STOPPER | |
| 34. | 4666851 | [2] | GUIDE;SPRING | |
| 35. | 4653225 | [2] | SPRING;COMPRES. | |
| 36. | 4653223 | [2] | SPRING;COMPRES. | |
| 37. | 4666853 | [2] | GUIDE;SPRING | |
| 38. | 4670372 | [2] | BOLT;STOPPER | |
| 41. | 3109923 | [2] | COVER | |
| 42. | A810065 | [2] | O-RING | |
| 43. | M340820 | [8] | BOLT;SOCKET | |
| 47. | 2053337 | [1] | ROTOR | |
| 48. | 4312681 | [9] | SPRING;COMPRES. | |
| 49. | 4689774 | [1] | BUSHING | |
| 50. | 3107710 | [1] | RETAINER | |
| 51. | 8107769 | [9] | PISTON | |
| 55. | 4364323 | [1] | O-RING | |
| 56. | 4506412 | [2] | O-RING | |
| 60. | +++++++ | [1] | VALVE;BRAKE | |
| 62. | 4666971 | [1] | BRG.;ROL. | |
| 64. | 4413761 | [1] | PIN;KNOCK | |
| 65. | 2054200 | [1] | PLATE;VALVE | |
| 68. | M341611 | [4] | BOLT;SOCKET | |
| 69. | 9134111 | [1] | PLUG | |
| 69A. | 4509180 | [1] | O-RING | |
| 70. | 9134109 | [2] | PLUG | |
| 70A. | 4506408 | [1] | O-RING | |
