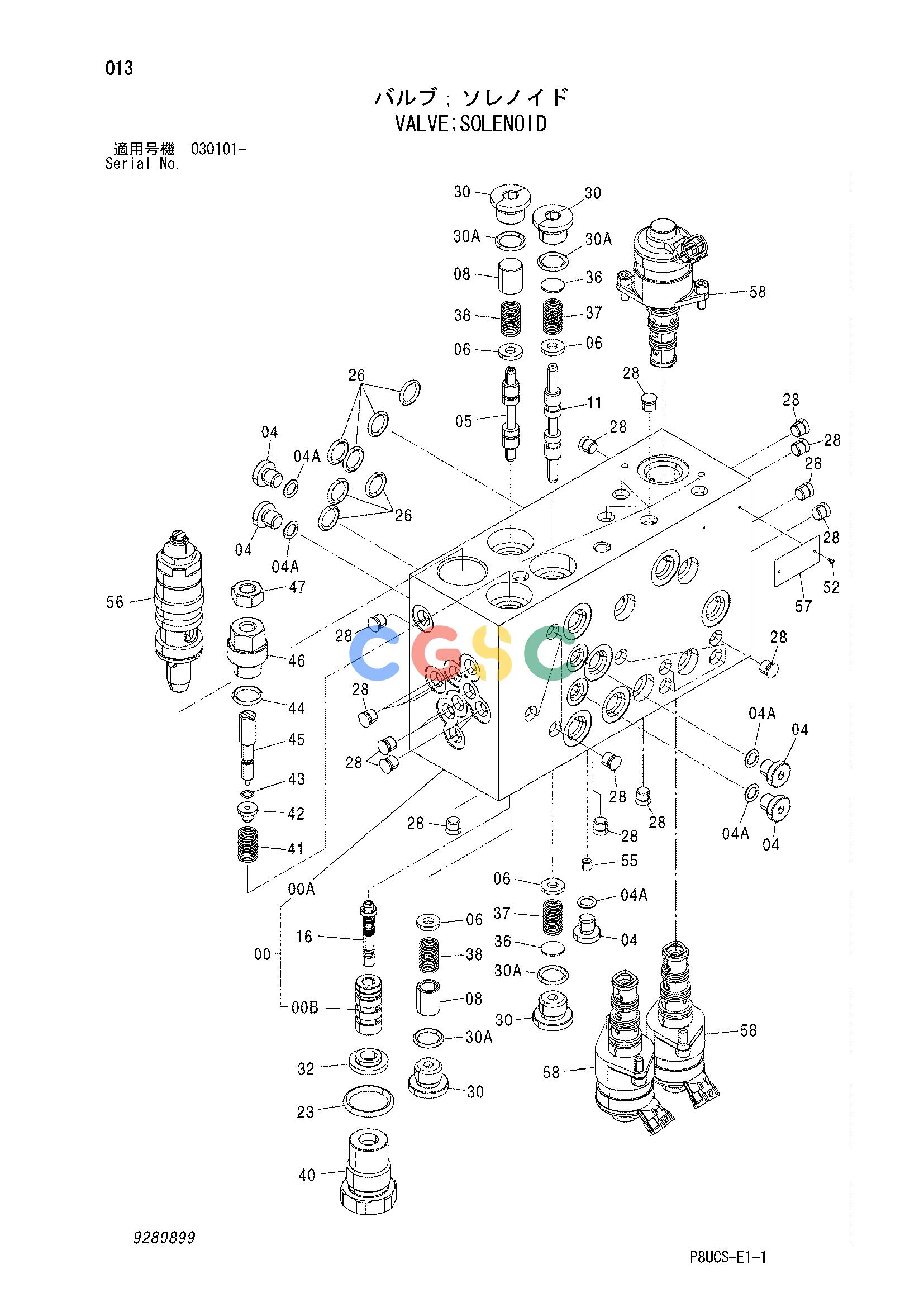

日立零件查询（CP220-3）VALVE;SOLENOID Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
911 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9280899 | [1] | VALVE;SOLENOID | |
| 00. | +++++++ | [1] | HOUSING | |
| 00A. | +++++++ | [1] | HOUSING | |
| 00B. | +++++++ | [1] | VALVE | |
| 04. | 9134109 | [5] | PLUG | |
| 04A. | 4506408 | [1] | O-RING | |
| 05. | 3109000 | [1] | SPOOL | |
| 06. | 4661318 | [4] | SEAT;SPRING | |
| 08. | 4661317 | [2] | SEAT;SPRING | |
| 11. | 3108999 | [1] | SPOOL | |
| 16. | +++++++ | [1] | SPOOL | |
| 23. | 4506424 | [1] | O-RING | |
| 26. | 4506412 | [7] | O-RING | |
| 28. | +++++++ | [30] | PLUG | |
| 30. | 9134111 | [4] | PLUG | |
| 30A. | 4509180 | [1] | O-RING | |
| 32. | 4680580 | [1] | SEAT | |
| 36. | 4682001 | [2] | SPACER | |
| 37. | 4682347 | [2] | SPRING;COMPRES. | |
| 38. | 4674908 | [2] | SPRING;COMPRES. | |
| 40. | 3113524 | [1] | PLUG | |
| 41. | +++++++ | [1] | SPRING;COMPRES. | |
| 42. | +++++++ | [1] | SEAT;SPRING | |
| 43. | +++++++ | [1] | O-RING | |
| 44. | 4509180 | [1] | O-RING | |
| 45. | +++++++ | [1] | SCREW | |
| 46. | +++++++ | [1] | PLUG | |
| 47. | +++++++ | [1] | NUT | |
| 52. | M491832 | [2] | SCREW;DRIVE | |
| 55. | 3098625 | [1] | ORIFICE | |
| 56. | 9292024 | [1] | VALVE;RELIEF | |
| 57. | +++++++ | [1] | NAME-PLATE | |
| 58. | 9302859 | [3] | VALVE;SOLENOID | |
