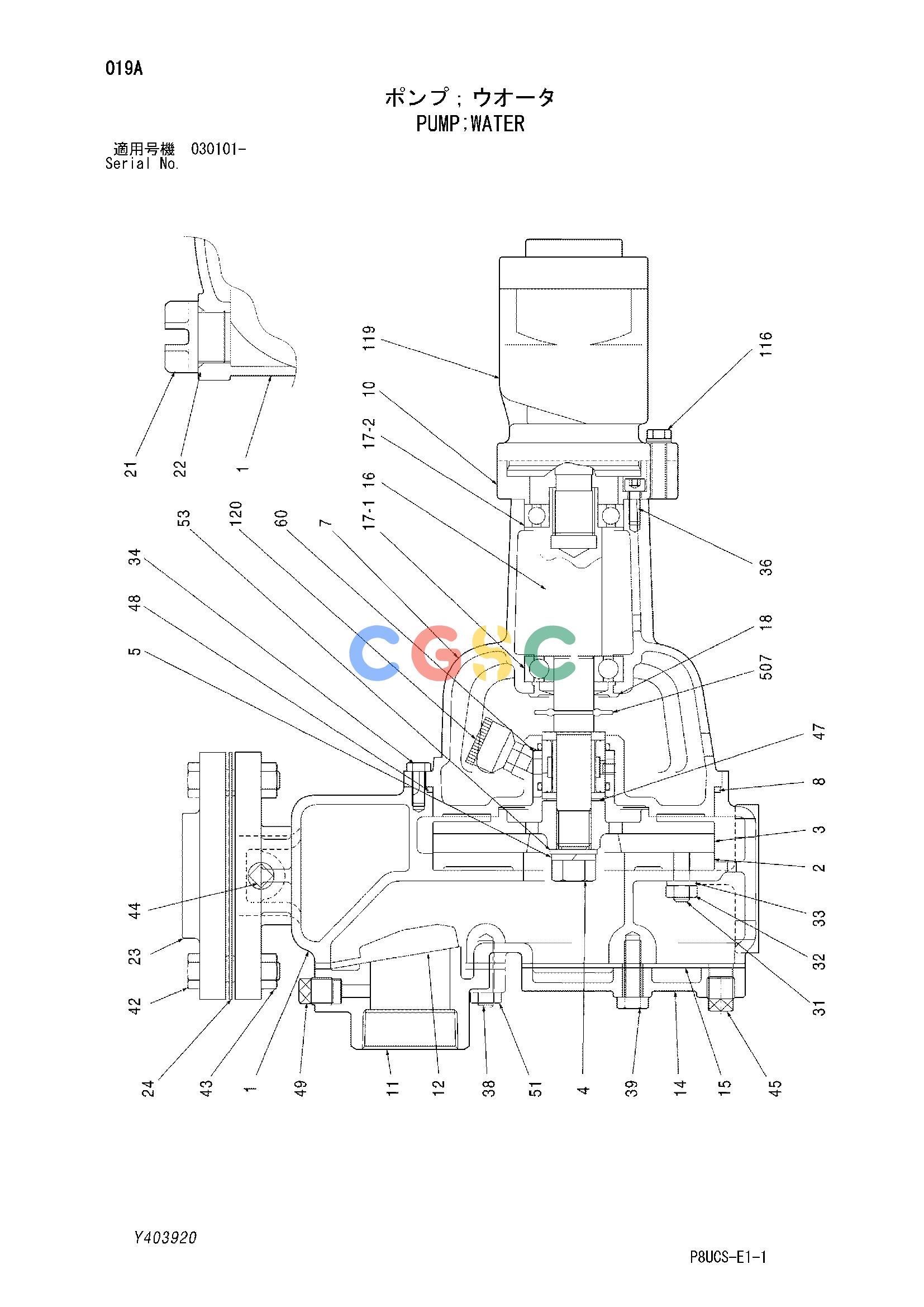

日立零件查询（CP220-3）PUMP;WATER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
238 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y403920 | [1] | PUMP;WATER | |
| 1. | Y413934 | [1] | CASING | |
| 2. | Y413935 | [1] | PLATE | |
| 3. | Y413936 | [1] | WHEEL | |
| 4. | Y413937 | [1] | NUT | |
| 5. | Y413938 | [1] | WASHER;SPRING | |
| 7. | Y413939 | [1] | COVER | |
| 8. | Y413940 | [1] | PACKING | |
| 10. | Y413941 | [1] | CAP | |
| 11. | Y413942 | [1] | PLUG | |
| 12. | Y413943 | [1] | VALVE | |
| 14. | Y413944 | [1] | COVER | |
| 15. | Y413945 | [1] | PACKING | |
| 16. | Y413946 | [1] | SHAFT | |
| 17-1. | Y413947 | [1] | BRG.;BALL | |
| 17-2. | Y413948 | [1] | BRG.;BALL | |
| 18. | Y413949 | [1] | BRIM | |
| 21. | Y413950 | [1] | PLUG | |
| 22. | Y413951 | [1] | PACKING | |
| 23. | Y413952 | [1] | FLANGE | |
| 24. | Y413953 | [1] | PACKING | |
| 31. | Y413954 | [2] | BOLT;STUD | |
| 32. | Y413955 | [2] | NUT | |
| 33. | Y413956 | [2] | WASHER;SPRING | |
| 34. | Y413957 | [6] | BOLT | |
| 36. | Y413958 | [4] | BOLT | |
| 38. | Y413959 | [4] | BOLT;STUD | |
| 39. | Y413960 | [1] | BOLT | |
| 42. | Y413961 | [4] | BOLT | |
| 43. | Y413962 | [4] | NUT | |
| 44. | Y413963 | [1] | PLUG | |
| 45. | Y413964 | [1] | PLUG;DRAIN | |
| 47. | Y413965 | [1] | LINER | |
| 48. | Y413966 | [1] | LINER | |
| 49. | Y413967 | [1] | PLUG | |
| 51. | Y413968 | [4] | NUT | |
| 53. | Y413969 | [4] | WASHER;PLANE | |
| 60. | Y413970 | [1] | SEAL | |
| 116. | J271035 | [2] | BOLT | |
| 119. | Y407280 | [1] | MOTOR;OIL | |
| 120. | Y413736 | [1] | CUP;GREASE | |
| 507. | Y413772 | [1] | FLINGER | |
