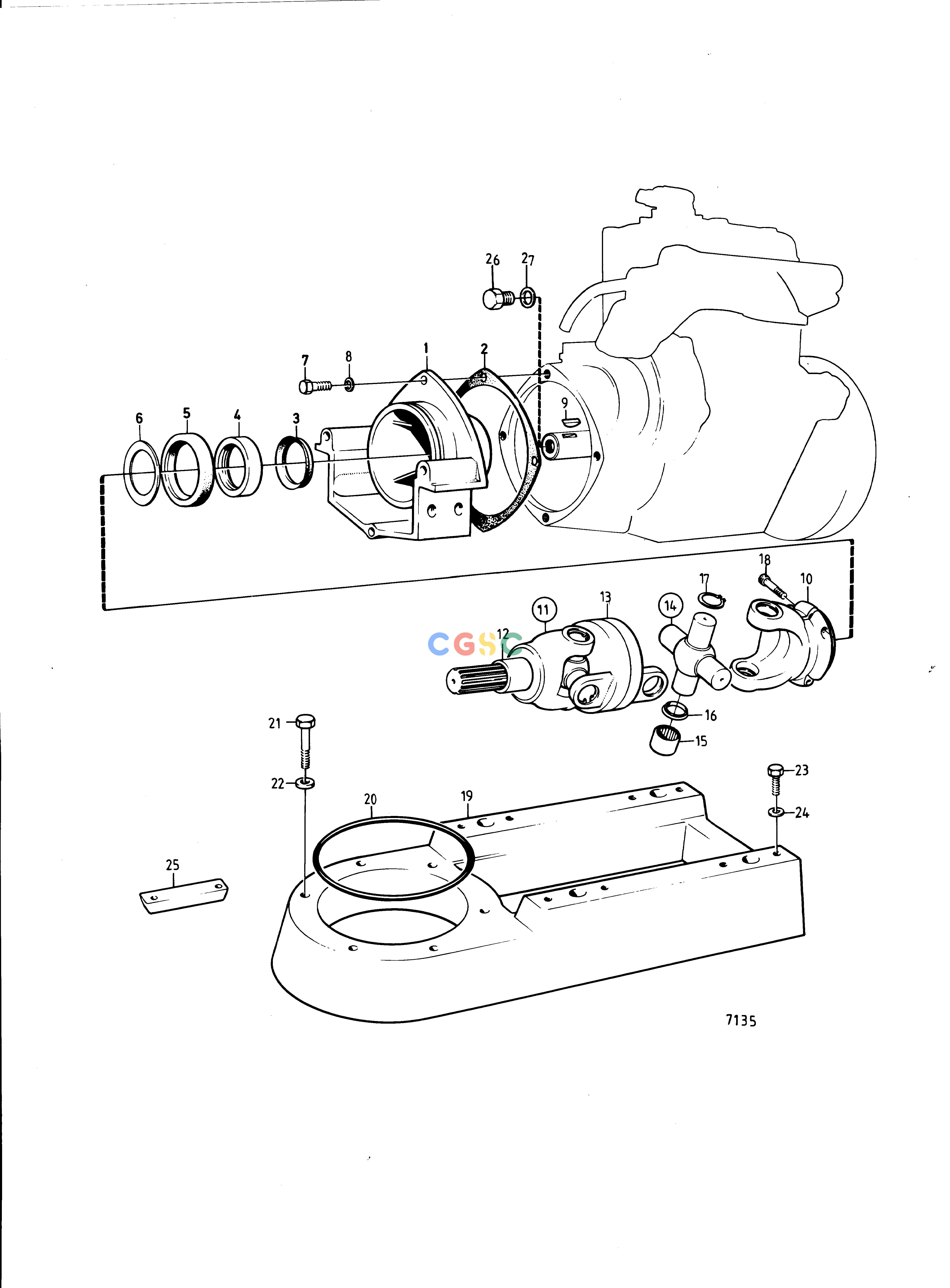

沃尔沃零件查询MD11; MD11C; MD11D; MD17; MD17C; MD17DTransmissionsConnecting Components Sail Boat Drive Unit 100SEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
822 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
839371
|
[1] |
End cover
|
|
| 2. |
803227
|
[1] |
Gasket
|
|
| 3. |
945352
|
[1] |
Sealing ring
|
|
| 4. |
839408
|
[1] |
Wear ring
|
|
| 5. |
948188
|
[1] |
Sealing ring
|
|
| 6. |
850211
|
[1] |
Adjusting washer
|
TH=0.5mm
|
| 7. |
955317
|
[4] |
Hexagon screw
|
|
| 8. |
960148
|
[4] |
Washer
|
|
| 9. |
910121
|
[1] |
Woodruff key
|
|
| 10. |
850016
|
[1] |
Fork
|
|
| 11. |
839232
|
[1] |
Fork
|
|
| 12. |
839233
|
[1] |
Bushing
|
|
| 13. |
832157
|
[1] |
Intermediate section
|
|
| 14. |
832158
|
[2] |
Spider
|
|
| 15. |
|
|
|
|
| 16. |
|
|
|
|
| 17. |
914507
|
[8] |
Snap ring
|
|
| 18. |
956572
|
[2] |
Hex. socket screw
|
|
| 19. |
|
|
|
See group 2A
|
| 20. |
839224
|
[1] |
Sealing strip
|
|
| 21. |
955563
|
[6] |
Hexagon screw
|
|
| 22. |
945442
|
[6] |
Washer
|
|
| 23. |
940115
|
[8] |
Hexagon screw
|
|
| 24. |
940097
|
[8] |
Washer
|
|
| 25. |
832344
|
[1] |
Zinc electrode
|
See group 4C
|
| 26. |
959665
|
[1] |
Hexagon screw
|
|
| 27. |
803226
|
[1] |
Lock washer
|
|
