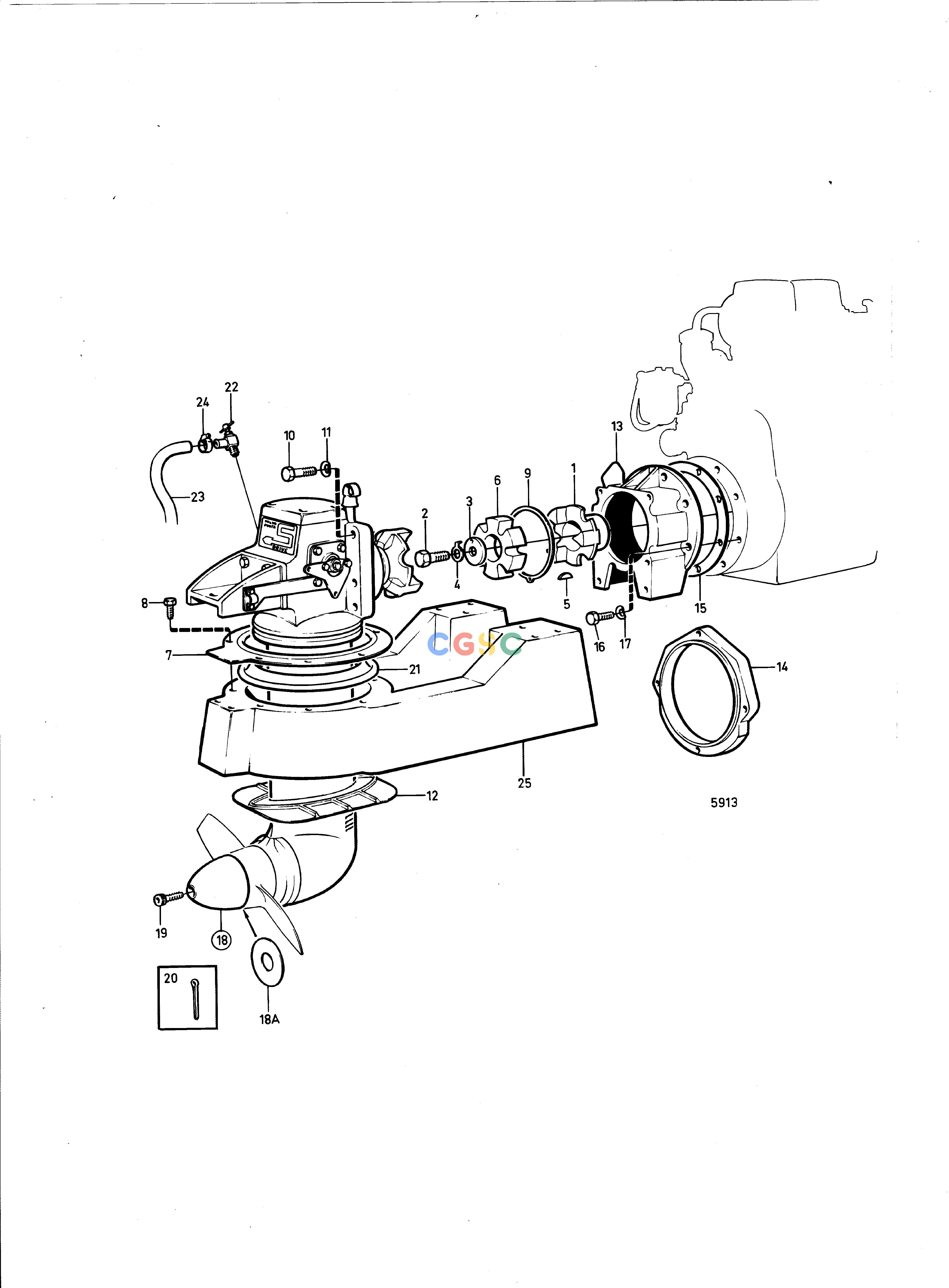

沃尔沃零件查询MD11; MD11C; MD11D; MD17; MD17C; MD17DTransmissionsConnecting Components Sail Boat Drive Unit 110S: MD11EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
356 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
833746
|
[1] |
Companion flange
|
|
| 2. |
959665
|
[1] |
Hexagon screw
|
|
| 3. |
833785
|
[1] |
Spacer washer
|
|
| 4. |
833849
|
[1] |
Lock washer
|
|
| 5. |
910121
|
[1] |
Woodruff key
|
|
| 6. |
827615
|
[1] |
Rubber coupling
|
|
| 7. |
3586701
|
[1] |
Clamping ring
|
|
| 8. |
946730
|
[6] |
Hexagon screw
|
(955297)
|
| 9. |
850345
|
[1] |
Gasket
|
|
| 10. |
955322
|
[6] |
Hexagon screw
|
|
| 11. |
955895
|
[6] |
Washer
|
|
| 12. |
22303438
|
[1] |
Mounting kit
|
|
| 13. |
850077
|
[1] |
Extension part
|
|
| 15. |
803227
|
[1] |
Gasket
|
|
| 16. |
959238
|
[4] |
Hex. socket screw
|
L=25mm
|
| 17. |
942336
|
[4] |
Spring washer
|
|
| 18. |
850396
|
[1] |
Propeller cone kit
|
See group 4C
|
| 18A. |
850888
|
[1] |
Plastic washer
|
See group 4C
|
| 19. |
851773
|
[1] |
Screw
|
L=70mm, see group 4C
|
| 20. |
949807
|
[1] |
Split pin
|
For folding propeller., See group 4C
|
| 21. |
21389074
|
[1] |
Rubber bellows
|
|
| 22. |
852230
|
[1] |
Cock
|
See group 4C
|
| 22. |
952076
|
[1] |
Plug
|
(946559) alt
|
| 23. |
943368
|
[1] |
Rubber hose
|
L=250mm
|
| 24. |
961665
|
[2] |
Hose clamp
|
(943372) see group 4C
|
| 25. |
|
|
|
See group 2A
|
