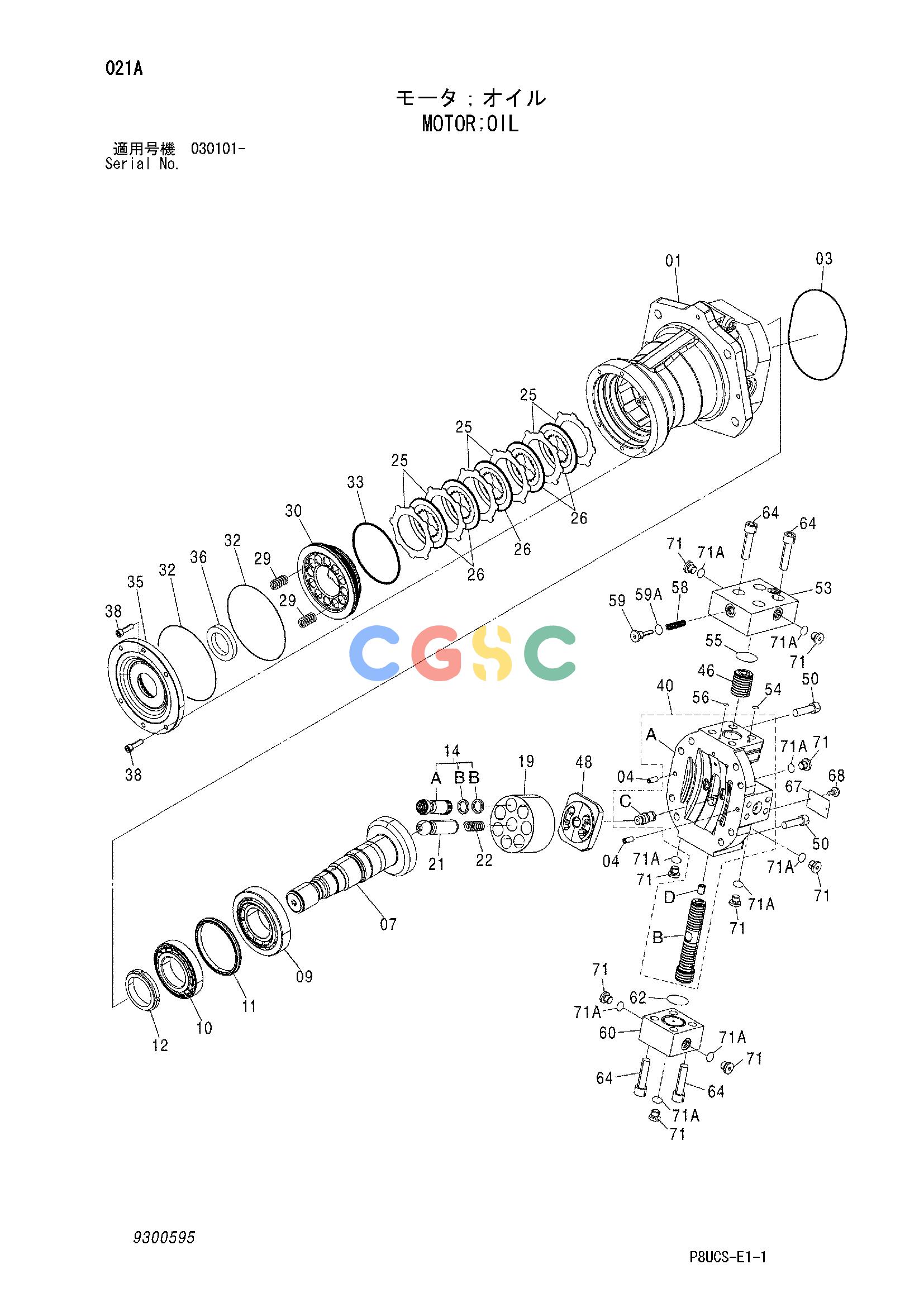

日立零件查询（CP220-3）MOTOR;OIL Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
848 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 9300595 | [1] | MOTOR;OIL | I9300596(for assembly of machine) |
| | 9300596 | [1] | MOTOR;OIL | (for transportation) |
| 01. | 1033967 | [1] | CASING | |
| 03. | 4648372 | [1] | O-RING | |
| 04. | 4099290 | [2] | PIN;SPRING | |
| 07. | 2054187 | [1] | DISC;DRIVING | |
| 09. | 4691444 | [1] | BRG.;ROL. | |
| 10. | 4633470 | [1] | BRG.;ROL. | |
| 11. | 4339171 | [1] | RING | |
| 12. | 4178173 | [1] | NUT;BRG. | |
| 14. | 9310438 | [7] | PISTON ASS'Y | |
| 14A. | +++++++ | [1] | PISTON | |
| 14B. | +++++++ | [2] | RING;PISTON | |
| 19. | 3108980 | [1] | ROTOR | |
| 21. | 4681360 | [1] | SHAFT;CENTER | |
| 22. | 4643568 | [1] | SPRING;COMPRES. | |
| 25. | 3109930 | [6] | PLATE | |
| 26. | 3109929 | [5] | PLATE;FRICTION | |
| 29. | 4667792 | [12] | SPRING;COMPRES. | |
| 30. | 2054188 | [1] | PISTON | |
| 32. | 4667793 | [2] | O-RING | |
| 33. | 4667794 | [1] | O-RING | |
| 35. | 3111907 | [1] | COVER;SEAL | |
| 36. | 4667805 | [1] | SEAL;OIL | |
| 38. | M340830 | [6] | BOLT;SOCKET | |
| 40. | 9310513 | [1] | HEAD ASS'Y | |
| 40A. | +++++++ | [1] | HEAD | |
| 40B. | +++++++ | [1] | PISTON;SERVO | |
| 40C. | +++++++ | [1] | PIN | |
| 40D. | +++++++ | [1] | SCREW;SET | |
| 46. | 4684113 | [1] | PISTON | |
| 48. | 2055016 | [1] | VALVE;SECTOR | |
| 50. | M341245 | [8] | BOLT;SOCKET | |
| 53. | 9272129 | [1] | VALVE | |
| 54. | 4705230 | [1] | O-RING | |
| 55. | 4292386 | [1] | O-RING | |
| 56. | 4180349 | [1] | O-RING | |
| 58. | 4297257 | [1] | SPRING;COMPRES. | |
| 59. | 9167977 | [1] | PLUG | |
| 59A. | 957366 | [1] | O-RING | |
| 60. | 9272128 | [1] | VALVE | |
| 62. | 4292942 | [1] | O-RING | |
| 64. | M341456 | [8] | BOLT;SOCKET | |
| 67. | +++++++ | [1] | NAME-PLATE | |
| 68. | M492564 | [2] | SCREW;DRIVE | |
| 71. | 9134110 | [9] | PLUG | |
| 71A. | 957366 | [1] | O-RING | |
