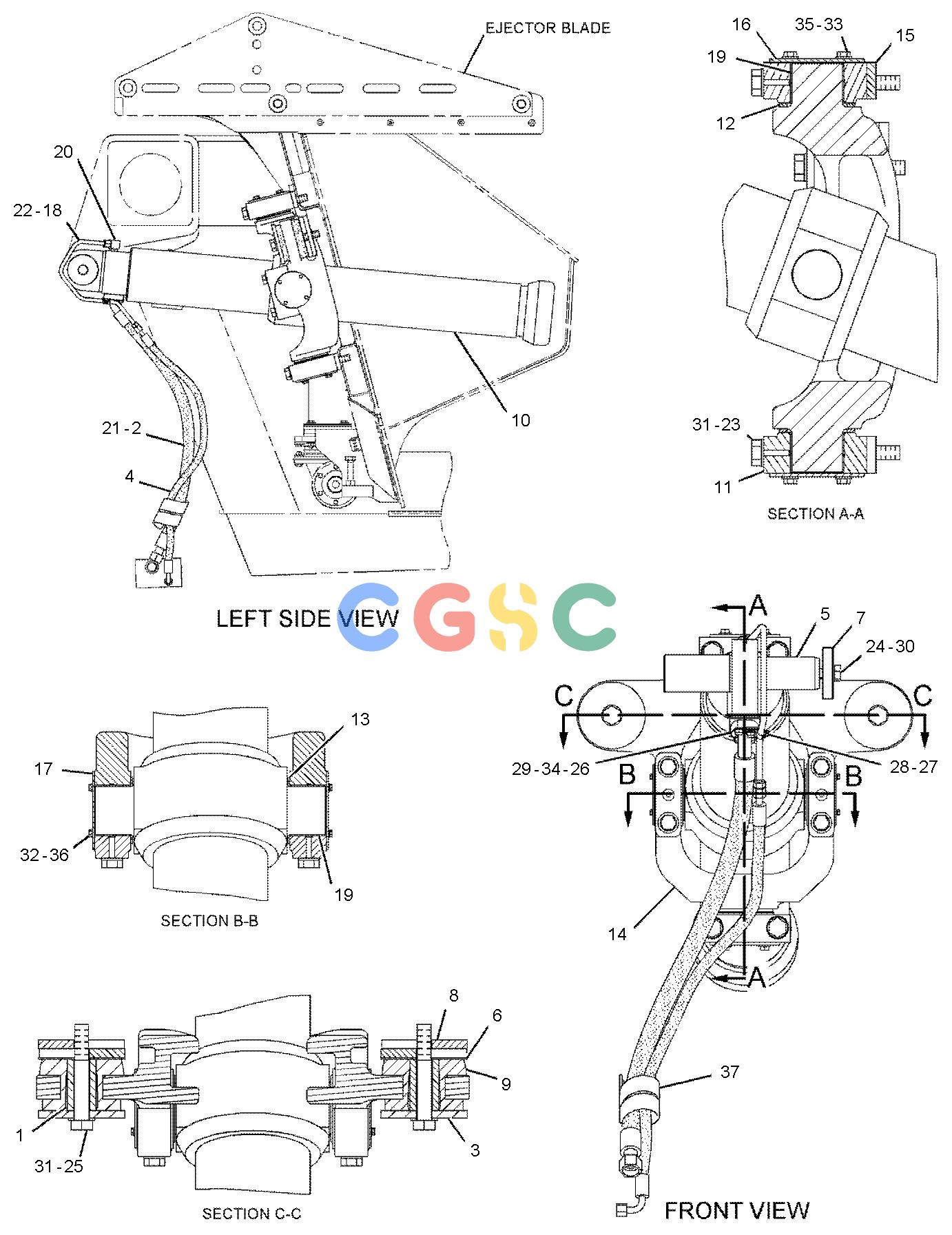

卡特零件查询（730） 394-8012: CYLINDER & MTG GP-EJECTOR
广数供应链运营团队, 15 02月, 2025，浏览：
721 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6Y-6884 | [2] | SLEEVE-TAPERED | |
| 2. | 9C-1216I | [1] | HOSE AS | |
| 3. | 8Y-7119C | [2] | WASHER(26X144X12-MM THK) | |
| 4. | 120-4553I | [1] | HOSE AS | |
| 5. | 174-3154 | [1] | PIN | |
| 6. | 177-3347 | [2] | SPACER(26X144X2-MM THK) | |
| 7. | 178-2194 | [1] | WASHER(22X110X22-MM THK) | |
| 8. | 184-7177 | [4] | SPACER(15-MM THK) | |
| 9. | 241-3799 | [2] | MOUNT AS | |
| 10. | 443-8482CY | [1] | CYLINDER GP-EJECTOR | |
| 11. | 251-8804 | [2] | PLATE | |
| 12. | 251-8819 | [2] | WASHER(95X120X6-MM THK) | |
| 13. | 251-9066 | [2] | WASHER(90X110X3-MM THK) | |
| 14. | 253-7131 | [1] | GIMBAL AS | |
| | 251-8802 | [1] | GIMBAL | |
| | 8T-0655M | [4] | BOLT(M20X2.5X130-MM) | |
| | 8T-3282 | [4] | WASHER-HARD(22X35X3.5-MM THK) | |
| | 251-8820 | [2] | CAP | |
| 15. | 254-7856B | [2] | SHIM(15-MM THK) | |
| 16. | 254-8277 | [2] | COVER | |
| 17. | 255-6529 | [2] | PLATE | |
| 18. | 446-5343C | [1] | TUBE AS | |
| 19. | 256-6234 | [4] | BUSHING AS | |
| 20. | 148-8364 | [1] | ELBOW AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8625 | [1] | ELBOW | |
| 21. | 4J-0520 | [1] | SEAL-O-RING | |
| 22. | 6V-8398 | [1] | SEAL-O-RING | |
| 23. | 7X-2476M | [4] | BOLT(M24X3X220-MM) | |
| 24. | 7X-2566M | [1] | BOLT(M20X2.5X110-MM) | |
| 25. | 7X-2567M | [2] | BOLT(M24X3X160-MM) | |
| 26. | 8C-3206 | [2] | FLANGE-HALF | |
| 27. | 8T-1885 | [1] | CLIP(SLOT) | |
| 28. | 8T-1886 | [1] | CLIP(TAB) | |
| 29. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 30. | 8T-4123 | [1] | WASHER(22X35X3.5-MM THK) | |
| 31. | 8T-4167 | [6] | WASHER-HARD(26X44X4-MM THK) | |
| 32. | 8T-4171M | [8] | BOLT(M6X1X12-MM) | |
| 33. | 8T-4192M | [8] | BOLT(M12X1.75X25-MM) | |
| 34. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| 35. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 36. | 9X-8256 | [8] | WASHER(6.6X12X2-MM THK) | |
| 37. | 276-1789 | [1] | COVER | |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
