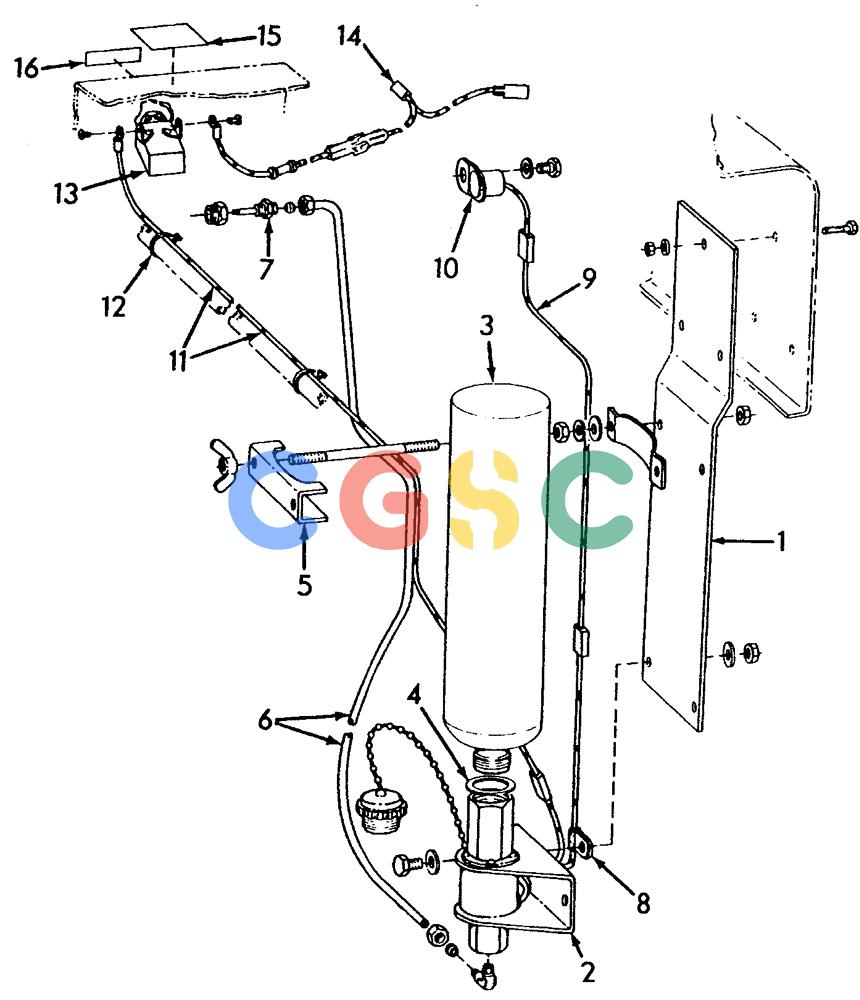

纽荷兰零件查询(FD20) - CRAWLER DOZER (A2.43/1[001]) - COLD WEATHER START+ New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
709 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73138080 | [1] | PLATE | CMIBRACKET |
| 1. | 16043331 | [3] | SCREW,Hex, M8 x 1.25 x 18mm, Cl 10.9, Full Thd | LEC |
| 1. | 10516671 | [3] | LOCK WASHER | BHBLOCKWASHER Superseded by part number: 83990583 |
| 1. | 16100821 | [3] | NUT,M8, Cl 10 | LEC Superseded by part number: 43362 |
| 2. | 73121001 | [1] | HYDRAULIC VALVE | CMIVALVE, INCLUDES CAP AND CHAIN |
| 2. | 70928138 | [2] | SCREW | BHBCAPSCREW, 1/4"" NC x 5/8"" |
| 2. | 70911114 | [4] | WASHER | CMI Superseded by part number: 70928190 |
| 2. | 70911327 | [2] | NUT | CMI1/4"" NC |
| 3. | 73132158 | [1] | CYLINDER | CMIKIT, INCLUDES ITEM 4 |
| 4. | 73070169 | [1] | GASKET | BHB |
| 5. | 70669359 | [1] | BRACKET | BHBCLAMP ASSY., INCLUDES MOUNTING HARDWARE |
| 6. | 73110484 | [1] | HOSE,72" Length | BHBTUBE, 72"" LONG |
| 6. | 70911841 | [2] | CONE TYPE FERRULE | BHBSLEEVE |
| 6. | 70912589 | [2] | NUT | BHB |
| 6. | 73052086 | [1] | ELBOW | BHB Superseded by part number: 70917310 |
| 7. | 73119442 | [1] | NOZZLE | CMIATOMIZER |
| 8. | 70639388 | [1] | HOSE CLIP | CMICLIP |
| 9. | 73115567 | [1] | CABLE | CMI |
| 10. | 73115568 | [1] | GUARD | CMITHERMO GUARD |
| 11. | 73128244 | [1] | CABLE | CMI |
| 12. | 70932747 | [1] | HOSE CLIP | CMITIE, USE AS REQUIRED Superseded by part number: 79013422 |
| 13. | 73115559 | [1] | SWITCH | CMI |
| 14. | 73116489 | [1] | ELECTRIC CABLE | CMICABLE ASSY., INCLUDES FUSE |
| 15. | 74029499 | [1] | DECAL | BHBINSTRUCTION |
| 16. | 73128002 | [1] | DECAL | CMIETHER AID |
