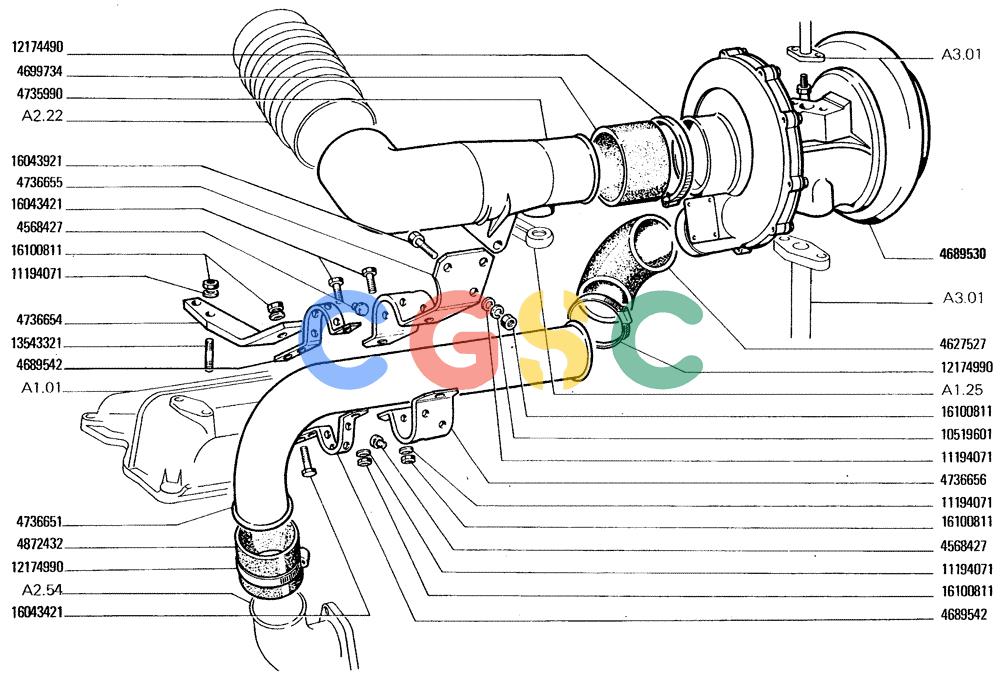

纽荷兰零件查询(FD20) - CRAWLER DOZER (A2.52[001]) - SUPERCHARGING SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
837 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 4568427. | 4568427 | [18] | STOP PLUG | BREPAD |
| 4627527. | 4627527 | [1] | HOSE | LECSLEEVE Superseded by part number: 4786941 |
| 4689530. | 4689530 | [1] | TURBOCHARGER | LECAIR COMPRESSOR |
| 4689542. | 4689542 | [2] | CLAMP | LECRETAINER |
| 4699734. | 4699734 | [1] | HOSE | LECSLEEVE Superseded by part number: 4865235 |
| 4735990. | 4735990 | [1] | AIR DUCT | LECPIPE |
| 4736651. | 4736651 | [1] | RIGID TUBE | LECPIPE |
| 4736654. | 4736654 | [1] | CLAMP | LECCLIP |
| 4736655. | 4736655 | [1] | CLAMP | LECRETAINER |
| 4736656. | 4736656 | [1] | CLAMP | LECRETAINER |
| 4872432. | 4872432 | [1] | HOSE | LECSLEEVE Superseded by part number: 98443275 |
| 10519601. | 10519601 | [3] | WASHER,8.15mm ID x 17mm OD x 2mm Thk | BHB Superseded by part number: 17094914 |
| 11194071. | 11194071 | [10] | LOCK WASHER | MODLOCKWASHER Superseded by part number: 11194079 |
| 12174490. | 12174490 | [2] | HOSE CLIP | MKTCOLLAR Superseded by part number: 17765392 |
| 13543321. | 13543321 | [2] | STUD | TOR Superseded by part number: 16746624 |
| 16043421. | 16043421 | [5] | BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd | TTFBOLT, Hex, M8 x 20, 8.8 Superseded by part number: 16043424 |
| 16043921. | 16043921 | [3] | BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8 | TTF Superseded by part number: 16625734 |
| 16100811. | 16100811 | [10] | NUT,Hex, M8, 6.80mm, Cl 8, ZND | TTFM8, Cl 8 Superseded by part number: 43362 |
