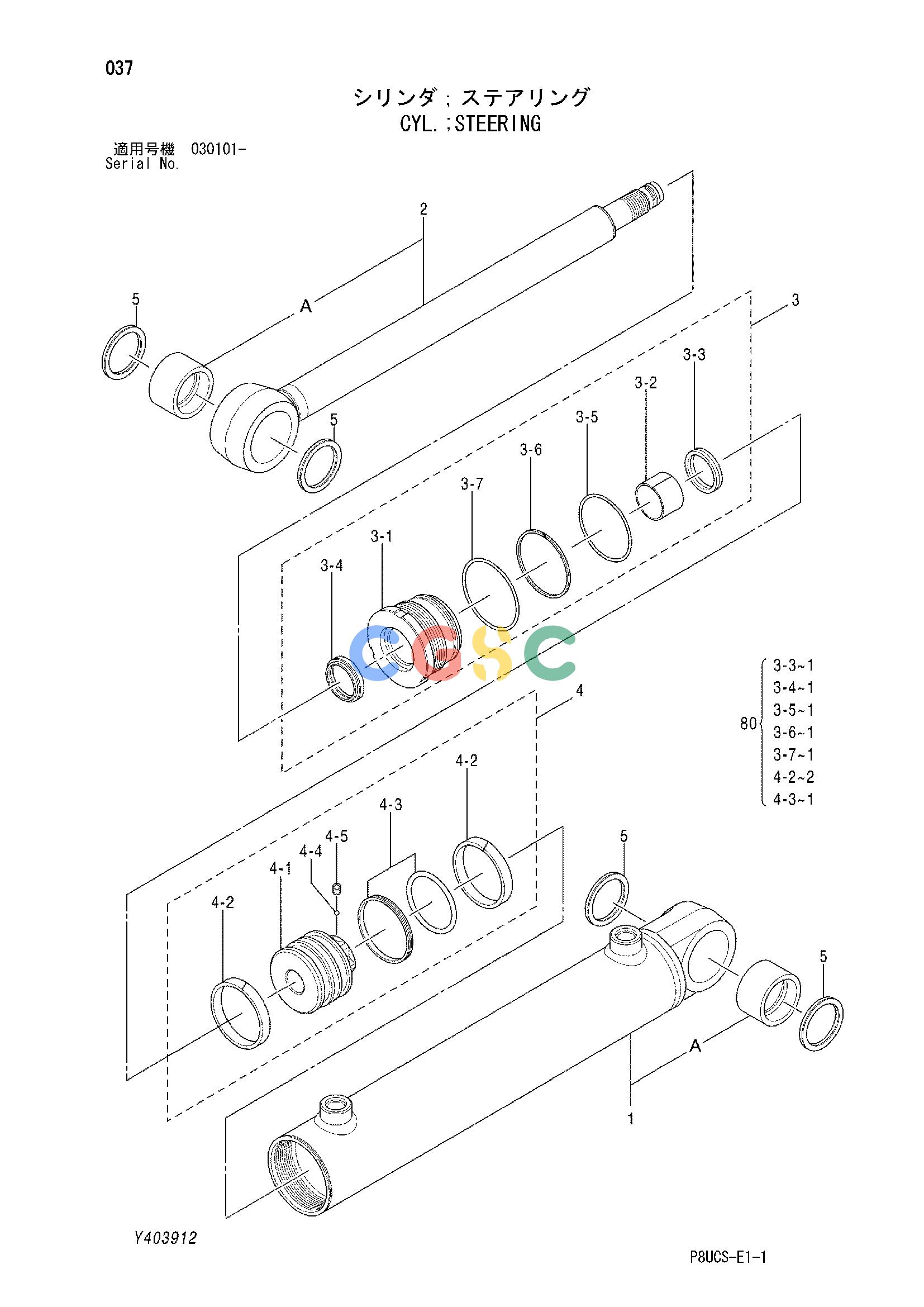

日立零件查询（CP220-3）CYL.;STEERING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
574 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y403912 | [1] | CYL.;STEERING | |
| 1. | Y413382 | [1] | TUBE;CYL. | |
| 1A. | Y413383 | [1] | BUSHING | |
| 2. | Y413384 | [1] | ROD;PISTON | |
| 2A. | Y413383 | [1] | BUSHING | |
| 3. | Y413385 | [1] | HEAD;CYL. ASS'Y | |
| 3-1. | Y413386 | [1] | HEAD;CYL. | |
| 3-2. | 0430303 | [1] | BUSHING | |
| 3-3. | 0430304 | [1] | PACKING;U-RING | |
| 3-4. | 0800104 | [1] | RING;WIPER | |
| 3-5. | 0430809 | [1] | O-RING | |
| 3-6. | 0481107 | [1] | RING;BACK-UP | |
| 3-7. | 0430903 | [1] | O-RING | |
| 4. | Y413387 | [1] | PISTON ASS'Y | |
| 4-1. | Y413388 | [1] | PISTON | |
| 4-2. | 0652205 | [2] | RING;SLIDE | |
| 4-3. | 0430906 | [1] | RING;SEAL | |
| 4-4. | 0429917 | [1] | BALL;STEEL | |
| 4-5. | 0429918 | [1] | SCREW;SET | |
| 5. | 0480915 | [4] | SEAL;DUST | |
| 80. | Y413389 | [1] | KIT;SEAL | |
