日立零件查询（CP220-3）AXLE;REAR (1/2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
721 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

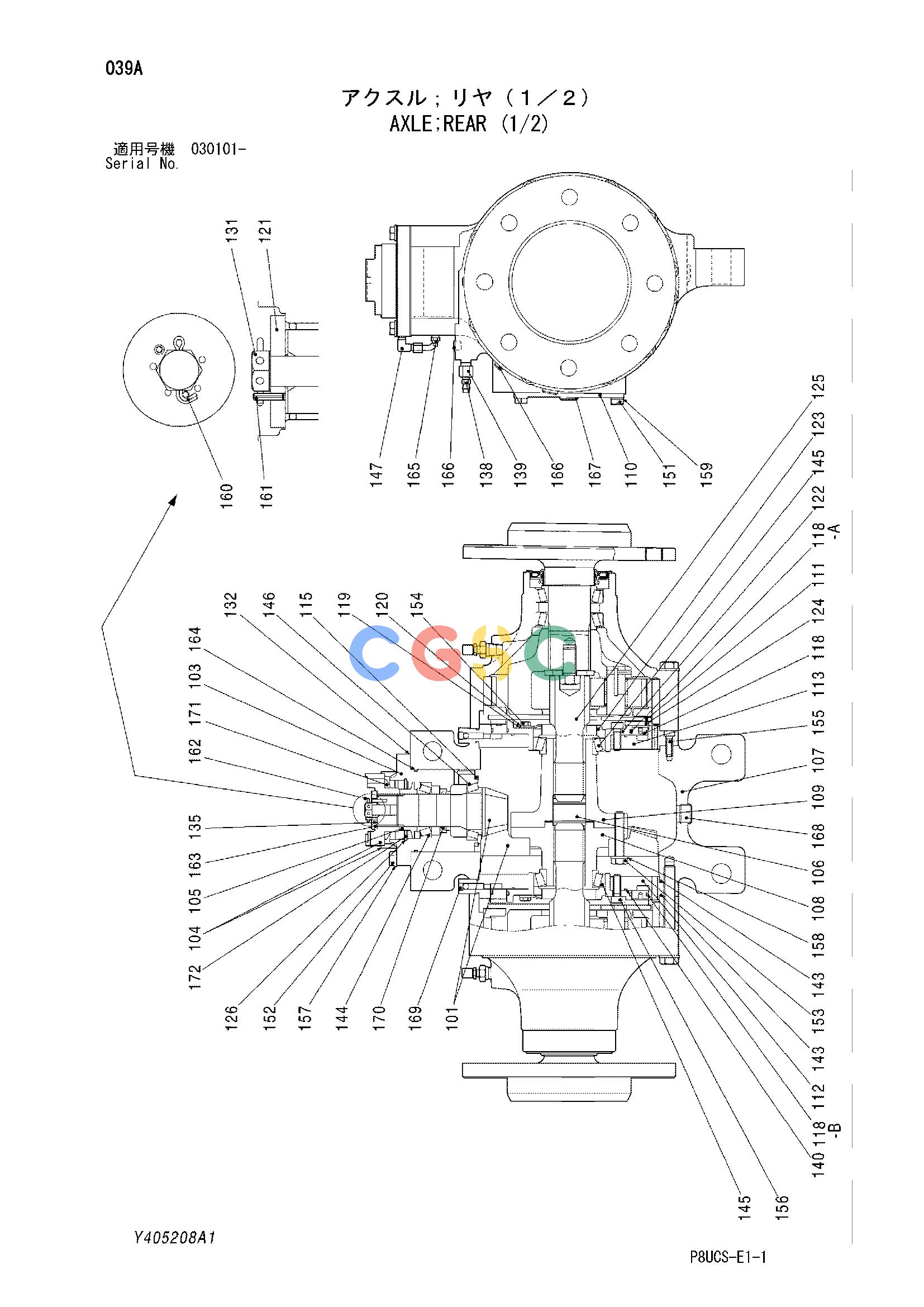

| | Y405208 | [1] | AXLE;REAR (1/2) | This PART NO. consists of all parts shown in AXLE;REAR (1/2) to (2/2). |
| 101. | Y413728 | [1] | GEAR;PINION | |
| 103. | Y413729 | [1] | CAGE;BRG. | |
| 104. | Y413730 | [1] | YOKE | |
| 105. | Y413731 | [1] | SPACER | |
| 106. | Y413732 | [1] | SPACER | |
| 107. | Y413733 | [1] | CASE | |
| 108. | Y413734 | [1] | SUPPORT | |
| 109. | Y413735 | [1] | SUPPORT | |
| 110. | Y412275 | [1] | COVER | |
| 111. | Y413737 | [2] | DISK | |
| 112. | Y413739 | [1] | CASE | |
| 113. | Y413741 | [1] | CASE | |
| 115. | Y413742 | [1] | GUIDE | |
| 118. | Y413743 | [2] | PISTON | |
| 118A. | Y413744 | [1] | O-RING | |
| 118B. | Y413745 | [1] | O-RING | |
| 119. | Y412273 | [2] | PLATE;LOCK | |
| 120. | Y412274 | [2] | WASHER;LOCK | |
| 121. | Y413746 | [1] | WASHER | |
| 122. | Y413747 | [2] | CASE | |
| 123. | Y413748 | [2] | NUT | |
| 124. | Y413749 | [2] | PLATE | |
| 125. | Y413750 | [2] | GEAR;SUN | |
| 125. | Y413395 | [2] | GEAR;SUN | |
| 126. | Y413751 | [1] | PLATE | |
| 131. | Y413752 | [1] | BOLT | |
| 132. | Y413753 | [1] | SHIM ASS'Y | |
| 135. | Y413754 | [1] | SHIM ASS'Y | |
| 138. | Y412302 | [2] | BREATHER;AIR | |
| 139. | Y413755 | [2] | JOINT | |
| 140. | Y413756 | [2] | O-RING | |
| 143. | Y413757 | [4] | O-RING | |
| 144. | Y412304 | [1] | BRG.;ROL. | |
| 145. | Y413758 | [2] | BRG.;ROL. | |
| 146. | Y413759 | [1] | BRG.;ROL. | |
| 146. | Y412332 | [1] | BRG.;ROL. | |
| 147. | Y413760 | [1] | UNION | |
| 151. | 0763008 | [8] | BOLT | |
| 152. | Y413761 | [7] | BOLT | |
| 153. | Y413762 | [14] | BOLT | |
| 154. | Y412308 | [4] | BOLT | |
| 155. | Y413763 | [4] | BOLT;SOCKET | |
| 156. | Y413764 | [16] | BOLT;SOCKET | |
| 157. | Y413765 | [7] | WASHER | |
| 158. | Y412336 | [14] | WASHER;PLANE | |
| 159. | 0328832 | [8] | WASHER;SPRING | |
| 160. | Y413766 | [1] | PIN;SPLIT | |
| 161. | Y413767 | [1] | PIN;SPRING | |
| 162. | Y413768 | [1] | PIN;SPRING | |
| 163. | Y413769 | [1] | O-RING | |
| 164. | Y412289 | [1] | O-RING | |
| 165. | Y413771 | [1] | FITTING;GREASE | |
| 166. | Y412315 | [4] | PLUG | |
| 167. | 0153426 | [1] | PLUG | |
| 168. | 0153547 | [1] | PLUG;MAGNET | |
| 169. | Y413770 | [2] | FITTING;GREASE | |
| 170. | Y413774 | [1] | SEAL;OIL | |
| 171. | Y413775 | [1] | SEAL;OIL | |
| 171. | Y413396 | [1] | SEAL;OIL | |
| 172. | Y413776 | [1] | RING;RETAINING | |
