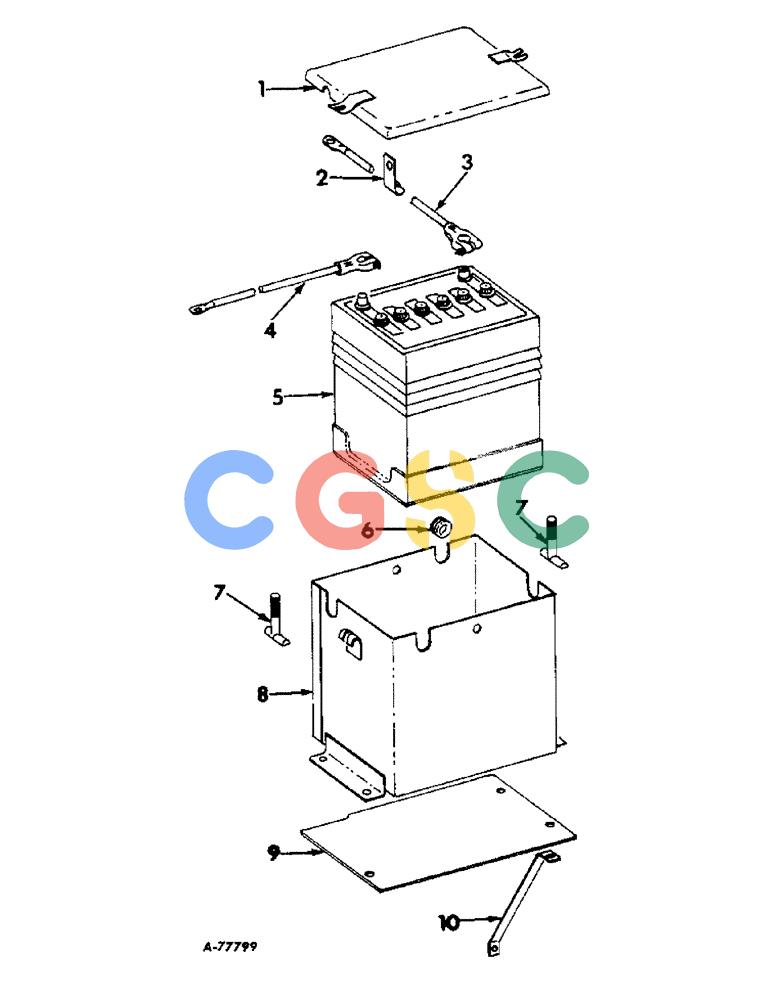

| 1. |
671087R91
|
[1] |
|
P
COVER ASSY, battery box, units C, D, and E
|
| 2. |
56277D
|
[1] |
|
P
CLIP, cable, units C, D, and E
|
| 3. |
672143R91
|
[1] |
|
P
CABLE, battery to starter, units C, D, and E
|
| 4. |
672144R91
|
[1] |
|
P
CABLE ASSY, battery to ground, units C, D, and E
|
| . . |
18778R1
|
[1] |
SCREW,Hex, 3/8"-16 x 3/4", G2
|
IH
BOLT, 3/8 x 3/4 C-Z hex-hd mach Superseded by part number: 180120
|
| . . |
120377
|
[1] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[1] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 5. |
387258R91
|
[1] |
|
P
BATTERY, Prestolite 2005X, 12 volt, units C, D and E, not a part of engine attachment
|
| 6. |
52118D
|
[1] |
GROMMET
|
IH
battery box, units C, D, and E
|
| 7. |
50939DA
|
[2] |
SPECIAL BOLT,1/4" - 20 x 2 1/4"
|
IH
battery box cover holddown, units C, D, and E
|
| . . |
665621R1
|
[2] |
|
P
NUT, 1/4-20 wing
|
| . . |
95-11028
|
[2] |
WASHER,1/4"
|
CAS
9/32 x 5/8 x 16 ga
|
| 8. |
671086R91
|
[1] |
|
P
BODY ASSY, battery box, units C, D, and E
|
| . . |
18764R1
|
[2] |
HARDWARE,Hex, 5/16"-18 x 3/4", G2
|
IH
BOLT, 5/16 x 3/4 C-Z hex-hd mach Superseded by part number: 424-512
|
| . . |
120376
|
[2] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| . . |
80681
|
[2] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 9. |
672145R1
|
[1] |
|
P
PLATE, battery support, units C, D, and E
|
| . . |
18494R1
|
[2] |
BOLT,Hex, 3/8" - 16 x 1", Gr 2
|
IH
3/8 x 1 C-Z hex-hd mach Superseded by part number: 424-616
|
| 10. |
672146R1
|
[1] |
|
P
BRACE, battery support plate, units C, D, and E
|
| . . |
18474R1
|
[1] |
BOLT,Hex, 5/16" - 18 x 1", Gr 2
|
IH
5/16 x 1 C-Z hex-hd mach Superseded by part number: 424-516
|
