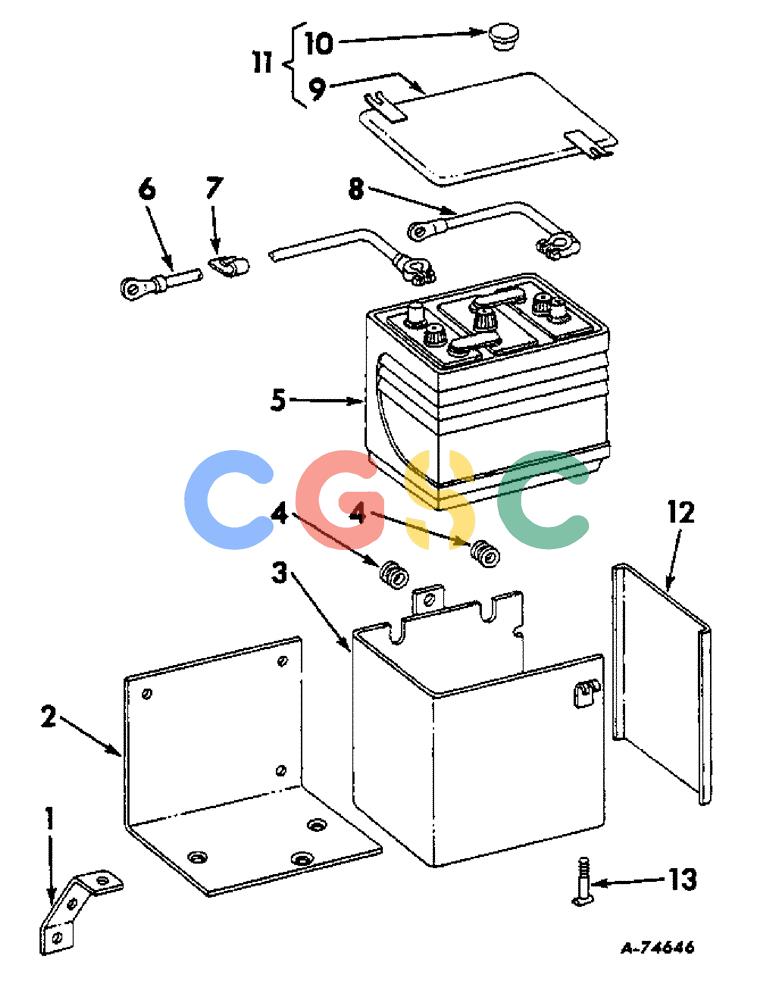

| 1. |
662345R1
|
[1] |
|
P
BRACKET, battery support rear, units C, D, and E
|
| . . |
18494R1
|
[1] |
BOLT,Hex, 3/8" - 16 x 1", Gr 2
|
IH
3/8 x 1 cd-pltd hex-hd mach Superseded by part number: 424-616
|
| . . |
120377
|
[1] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[1] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 2. |
662347R2
|
[1] |
|
P
PLATE, battery support, units C, D, and E
|
| . . |
133901
|
[2] |
SCREW,Sl Flat Hd, 3/8" - 16 x 1"
|
IH
3/8 x 1 cd-pltd slt-fil-hd Superseded by part number: 473-13816
|
| . . |
437690
|
[1] |
SCREW, 7/16 x 3/4 cd-pltd slt-fil-hd
|
|
| . . |
NLS
|
[1] |
NO LONGER SERVICED
|
BAS
NUT, 7/16 cd-pltd hex.
|
| . . |
120383
|
[1] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| 3. |
661232R91
|
[1] |
|
P
BODY, battery box, units C, D, and E
|
| 4. |
52118D
|
[1] |
GROMMET
|
IH
battery box, 2 for units C, D, and E
|
| 5. |
355192R92
|
[1] |
BATTERY, IHPRT, 6 volt, units C, E, not a part of engine attachment
|
|
| 6. |
663457R91
|
[1] |
|
P
CABLE, battery to starting switch, units C, D, and E
|
| 7. |
56277D
|
[1] |
|
P
CLIP, cable, units C, D, and E
|
| 8. |
69510DA
|
[1] |
CABLE
|
IH
battery to ground, units C, D, and E Superseded by part number: 71198C1
|
| . . |
18778R1
|
[1] |
SCREW,Hex, 3/8"-16 x 3/4", G2
|
IH
BOLT, 3/8 x 3/4 cd-pltd hex-hd mach Superseded by part number: 180120
|
| 10. |
51690D
|
[1] |
|
P
RUBBER, battery hold down, 2 for units C, D, and E
|
| 11. |
661226R91
|
[1] |
|
P
COVER, battery box, units C, D, and E
|
| 12. |
661236R1
|
[1] |
|
P
BOX, battery front, units C, D, and E
|
| 13. |
50939DA
|
[1] |
SPECIAL BOLT,1/4" - 20 x 2 1/4"
|
IH
battery box cover hold down, 2 for units C, D, and E
|
| . . |
665621R1
|
[2] |
|
P
NUT, 1/4 wing
|
| . . |
95-11028
|
[2] |
WASHER,1/4"
|
CAS
9/32 x 5/8 x 16 ga
|
