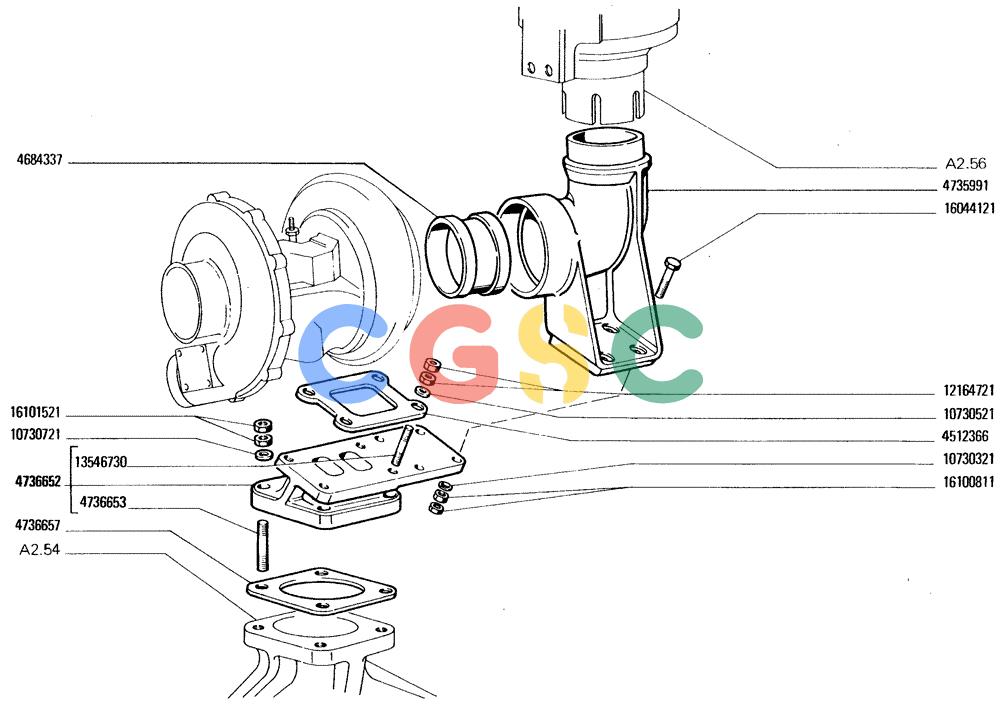

纽荷兰零件查询(FD20) - CRAWLER DOZER (A2.52[002]) - SUPERCHARGING SYSTEMS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
165 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 4512366. | 4512366 | [1] | GASKET,0.5mm Thk | BRE Superseded by part number: 4874100 |
| 4684337. | 4684337 | [1] | RING | LECCONNECTION |
| 4735991. | 4735991 | [1] | ELBOW | LEC |
| 4736652. | 4736652 | [1] | SPACER | LEC |
| 4736653. | 4736653 | [4] | STUD | LEC |
| 4736657. | 4736657 | [1] | MANIFOLD GASKET,0.5mm Thk | LEC |
| 10730321. | 10730321 | [4] | WASHER,8.15mm ID x 17mm OD x 2mm Thk | JES Superseded by part number: 16665514 |
| 10730521. | 10730521 | [4] | WASHER,M10 x 20 OD x 2.5 Thk | MKT Superseded by part number: 14499521 |
| 10730721. | 10730721 | [4] | SEALING WASHER | MKTWASHER Superseded by part number: 10520021 |
| 12164721. | 12164721 | [8] | NUT,M10 x 1.25, Cl 10 | TTF |
| 13546730. | 13546730 | [4] | STUD | LEC |
| 16044121. | 16044121 | [4] | BOLT,Hex, M8 x 45mm, Cl 8.8 | TTFBOLT, Hex, M8 x 45, 8.8 Superseded by part number: 782914, 782914, 86625002 |
| 16100811. | 16100811 | [8] | NUT,Hex, M8, 6.80mm, Cl 8, ZND | TTFM8, Cl 8 Superseded by part number: 43362 |
| 16101521. | 16101521 | [8] | NUT,M12 x 1.25, Cl 10 | ZED Superseded by part number: |
