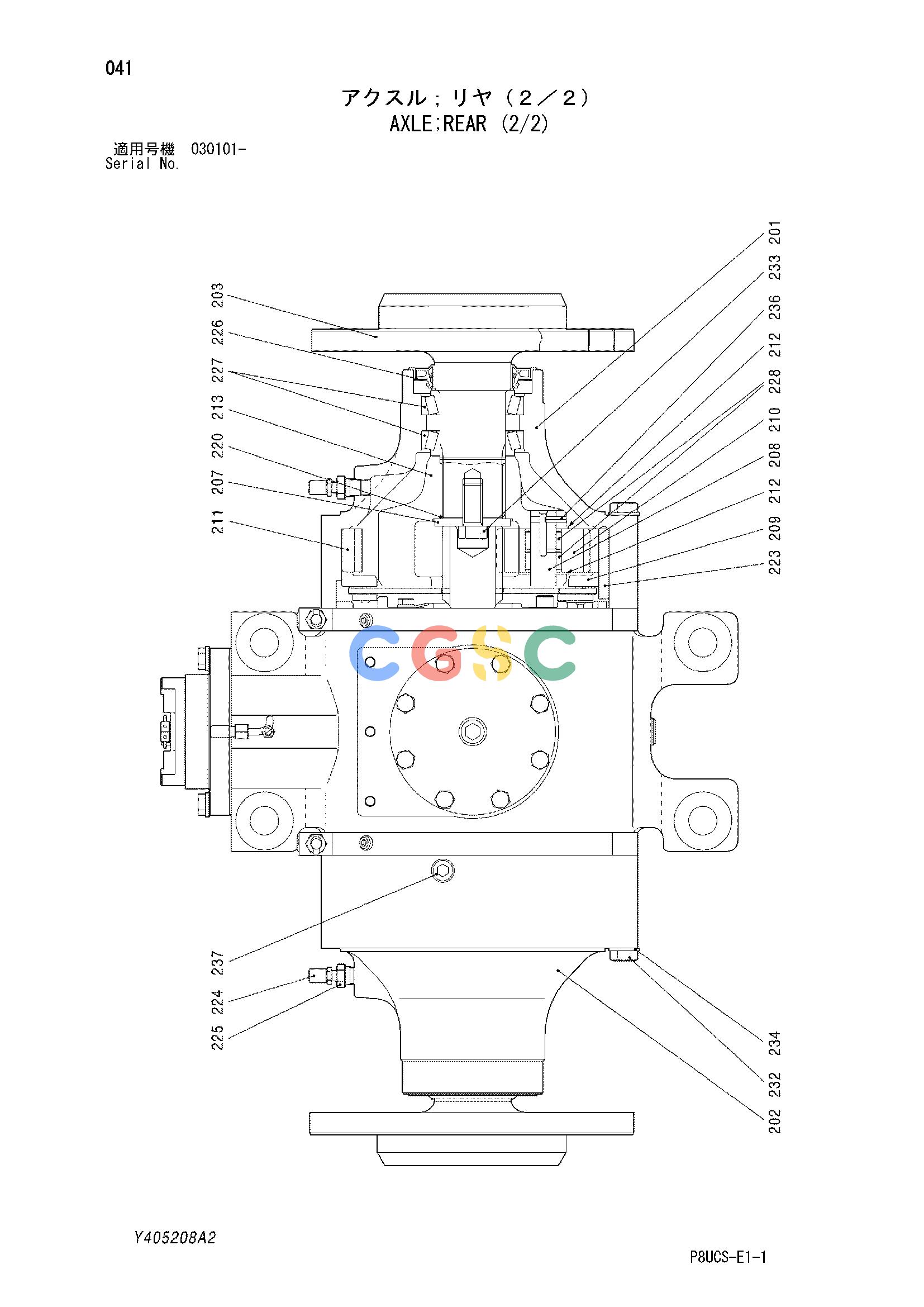

日立零件查询（CP220-3）AXLE;REAR (2/2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
699 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y405208 | [1] | AXLE;REAR (2/2) | This PART NO. consists of all parts shown in AXLE;REAR (1/2) to (2/2). |
| 201. | Y413399 | [1] | HOUSING | |
| 202. | Y413400 | [1] | HOUSING | |
| 203. | Y413397 | [2] | SHAFT;DRIVE | |
| 207. | Y413402 | [2] | SPACER | |
| 208. | Y413403 | [6] | PIN | |
| 209. | Y413404 | [2] | PLATE | |
| 210. | Y413405 | [6] | GEAR;PLANETARY | |
| 211. | Y413406 | [2] | GEAR;INTERNAL | |
| 212. | Y413407 | [12] | WASHER;THRUST | |
| 213. | Y413398 | [2] | CASE;GEAR | |
| 220. | Y413409 | [1] | SHIM ASS'Y | |
| 220A. | Y413795 | [2] | SHIM 0.15mm | |
| 220B. | Y413796 | [6] | SHIM 0.2mm | |
| 220C. | Y413797 | [2] | SHIM 0.3mm | |
| 223. | Y413410 | [6] | PIN | |
| 224. | 0428508 | [2] | BREATHER;AIR | |
| 225. | Y413411 | [2] | BUSHING | |
| 226. | Y412329 | [2] | SEAL;OIL | |
| 227. | Y412330 | [4] | BRG.;ROL. | |
| 228. | Y413412 | [12] | BRG.;NEEDLE | |
| 232. | Y413413 | [24] | BOLT | |
| 233. | Y413414 | [2] | BOLT | |
| 234. | Y413415 | [24] | WASHER | |
| 236. | Y413416 | [6] | PIN;SPRING | |
| 237. | Y413417 | [2] | PLUG | |
