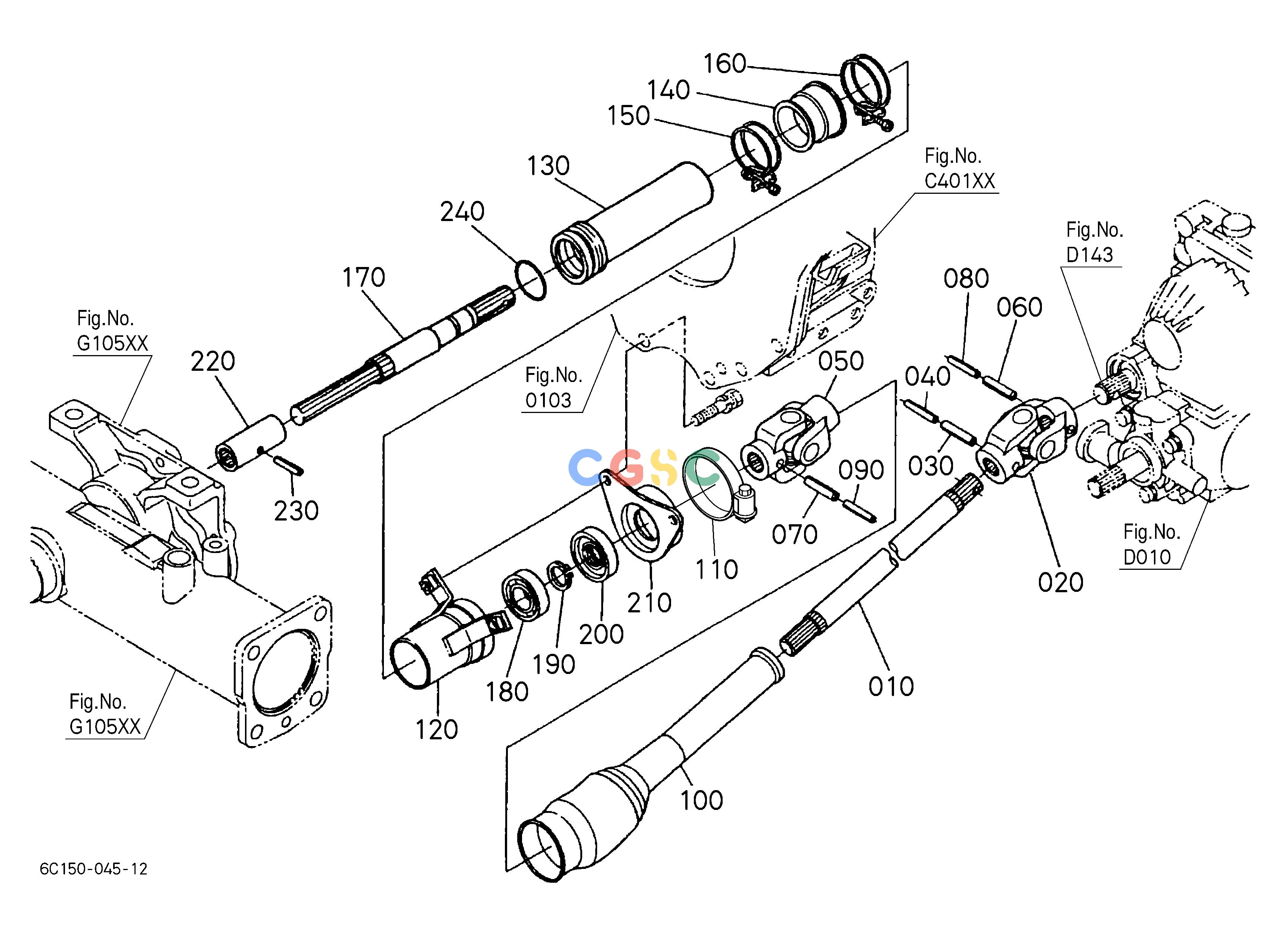

久保田零件查询G13502 FRONT DRIVE SHAFT [4WD] [BI-SPEED TURN TYPE] FRONT AXLEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
515 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C05057512
|
[1] |
SHAFT DRIVE REAR
|
2.5740(lbs); 1.170
|
| 020. |
6C04057500
|
[1] |
ASSY JOINT UNIVERSAL
|
1.3200(lbs); 0.600
|
| 030. |
0541100640
|
[1] |
PIN SPRING
|
0.0132(lbs); 0.006
|
| 040. |
3272157680
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 050. |
6C04057542
|
[1] |
ASSY JOINT UNIVERSAL
|
1.5180(lbs); 0.690
|
| 060. |
0541100640
|
[1] |
PIN SPRING
|
0.0132(lbs); 0.006
|
| 070. |
0541100640
|
[1] |
PIN SPRING
|
0.0132(lbs); 0.006
|
| 080. |
3272157680
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 090. |
3272157680
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 100. |
6C04057550
|
[1] |
COVER
|
0.0880(lbs); 0.040
|
| 110. |
0931889069
|
[1] |
CLAMP HOSE
|
0.0770(lbs); 0.035
|
| 110. |
6610358310
|
[1] |
BAND
|
0.0440(lbs); 0.020
|
| 120. |
6C04057610
|
[1] |
COVER FRONT SHAFT
|
0.5456(lbs); 0.248
|
| 130. |
6C04077670
|
[1] |
COVER FRONT SHAFT
|
0.2508(lbs); 0.114
|
| 140. |
6C04057650
|
[1] |
COVER FRONT SHAFT
|
0.0770(lbs); 0.035
|
| 150. |
0931889052
|
[1] |
CLAMP HOSE
|
0.0660(lbs); 0.030
|
| 160. |
0931889058
|
[1] |
CLAMP HOSE
|
0.0616(lbs); 0.028
|
| 170. |
6C04077660
|
[1] |
SHAFT FRONT DRIVE
|
0.8800(lbs); 0.400
|
| 180. |
0814106204
|
[1] |
BEARING BALL
|
0.2222(lbs); 0.101
|
| 190. |
0461200200
|
[1] |
CIR CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 200. |
6C04057630
|
[1] |
SEAL OIL
|
0.0550(lbs); 0.025
|
| 210. |
6C04057640
|
[1] |
SUPPORT
|
0.3080(lbs); 0.140
|
| 220. |
T007014710
|
[1] |
COUPLING
|
0.3520(lbs); 0.160
|
| 220. |
H313044520
|
[1] |
COUPLING
|
0.3520(lbs); 0.160
|
| 230. |
0541100430
|
[1] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 240. |
0481106400
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 240. |
0481606400
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
