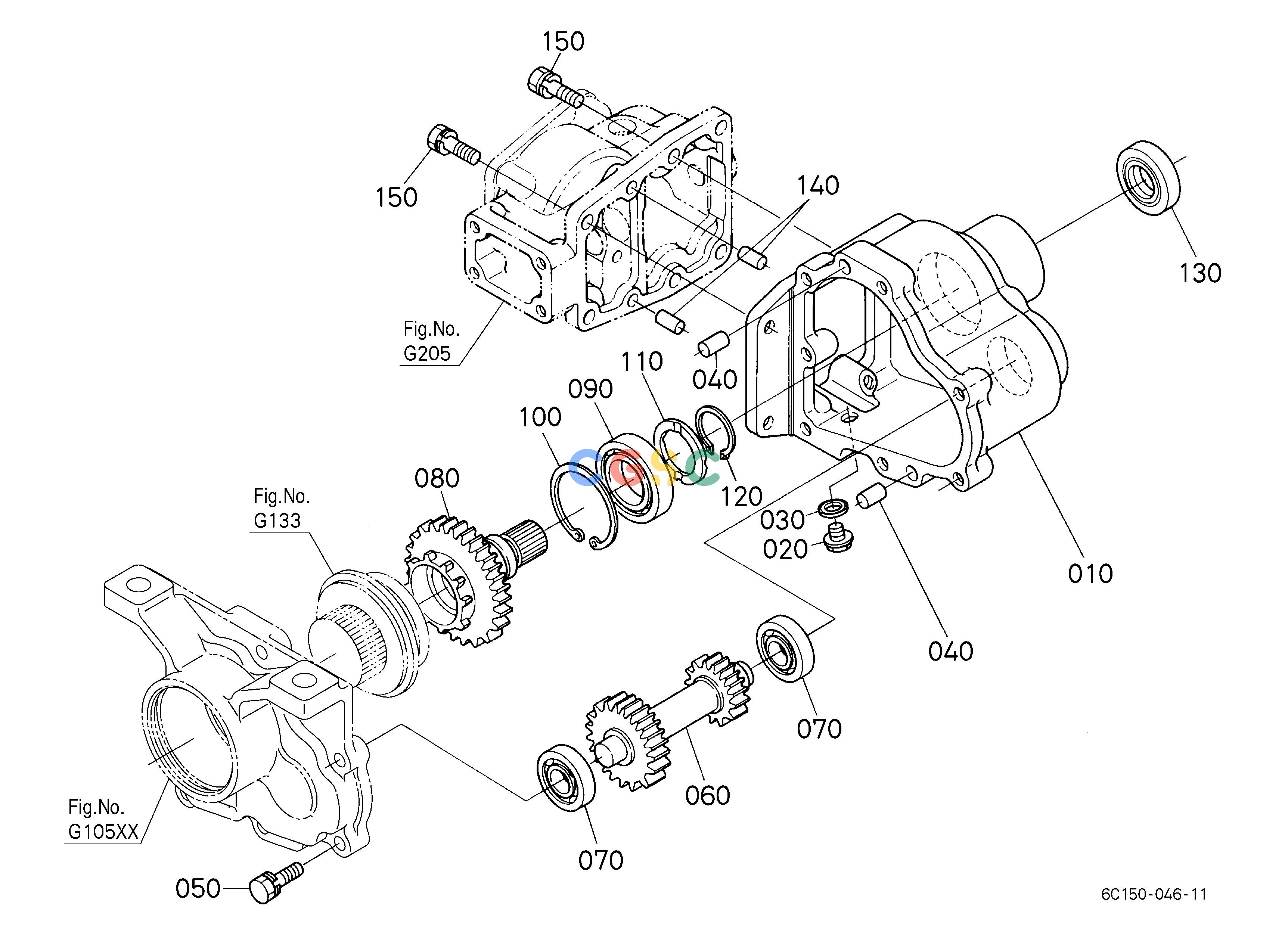

久保田零件查询G20100 BI-SPEED TURN GEAR CASE [BI-SPEED TURN TYPE] FRONT AXLEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
457 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04077620
|
[1] |
CASE BI-S.TURN GEAR
|
7.2600(lbs); 3.300
|
| 020. |
0177451010
|
[1] |
BOLT FLANGE
|
0.0374(lbs); 0.017
|
| 030. |
0471701000
|
[1] |
WASHER WITH RUBBER
|
0.0022(lbs); 0.001
|
| 040. |
6641856660
|
[2] |
PIN STRAIGHT
|
0.0198(lbs); 0.009
|
| 050. |
0112350830
|
[7] |
BOLT
|
0.0330(lbs); 0.015
|
| 060. |
6C04077590
|
[1] |
GEAR-SHAFT
|
0.9680(lbs); 0.440
|
| 070. |
0810106203
|
[2] |
BEARING BALL
|
0.1386(lbs); 0.063
|
| 080. |
6C04077643
|
[1] |
GEAR-SHAFT
|
1.2760(lbs); 0.580
|
| 090. |
0810106006
|
[1] |
BEARING BALL
|
0.2574(lbs); 0.117
|
| 100. |
0461100550
|
[1] |
CIR CLIP INTERNAL
|
0.0220(lbs); 0.010
|
| 110. |
3534021760
|
[1] |
COLLAR THRUST
|
0.0220(lbs); 0.010
|
| 120. |
0461200300
|
[1] |
CIR CLIP EXTERNAL
|
0.0066(lbs); 0.003
|
| 130. |
0950030458
|
[1] |
SEAL OIL
|
0.0198(lbs); 0.009
|
| 140. |
0501200812
|
[2] |
PIN STRAIGHT
|
0.0132(lbs); 0.006
|
| 150. |
6C04077770
|
[6] |
BOLT
|
0.0286(lbs); 0.013
|
