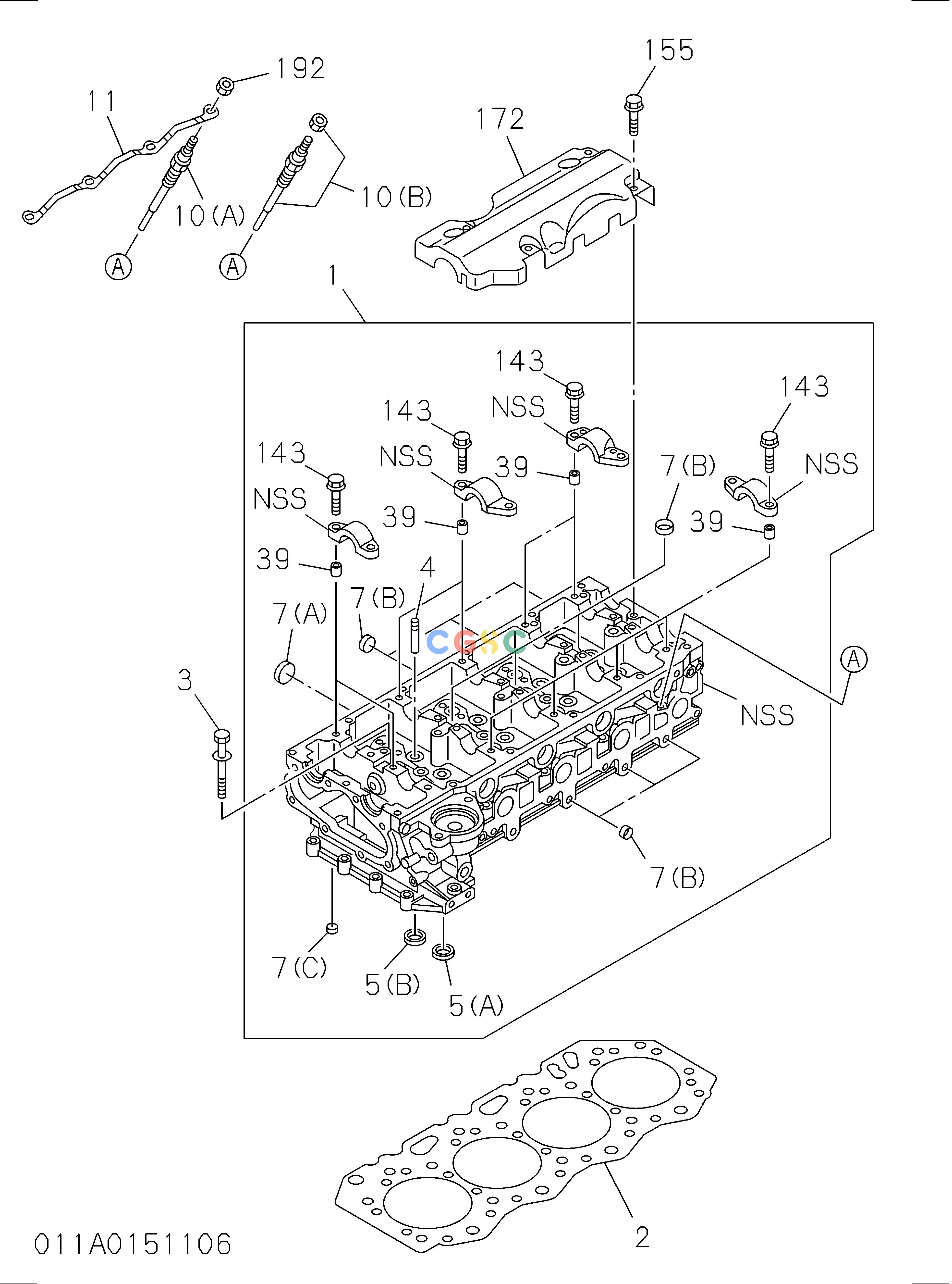

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 001. | 8973559709 | [1] | HEAD ASM; CYL | |
| 001. | 8981756061 | [1] | HEAD ASM; CYL | |
| 002. | 8973288662 | [1] | GASKET; CYL HD | A T=1.05 1-NOTCH ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 002. | 8973288672 | [1] | GASKET; CYL HD | A T=1.10 2-NOTCH ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 002. | 8973288682 | [1] | GASKET; CYL HD | A T=1.15 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 002. | 8981359530 | [1] | GASKET; CYL HD | A T=1.05 1-NOTCH ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 002. | 8981359540 | [1] | GASKET; CYL HD | A T=1.10 2-NOTCH ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 002. | 8981359550 | [1] | GASKET; CYL HD | A T=1.15 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 002. | 8973288662 | [1] | GASKET; CYL HD | T=1.05 1-NOTCH ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 002. | 8973288672 | [1] | GASKET; CYL HD | T=1.10 2-NOTCH ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 002. | 8973288682 | [1] | GASKET; CYL HD | T=1.15 3-NOTCH ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 003. | 8971445832 | [18] | BOLT; CYL HD TO BLOCK | M11X114 |
| 003. | 8982010190 | [18] | BOLT; CYL HD TO BLOCK | M11X114 |
| 004. | 8942394230 | [16] | GUIDE; VLV | |
| 005(A). | 8973113780 | [8] | SEAT; VLV INSERT | INLET |
| 005(B). | 8973113790 | [8] | SEAT; VLV INSERT | EXH |
| 007(A). | 1096000122 | [2] | CUP; SEALING,CYL HEAD | OD=32 |
| 007(B). | 5112190080 | [13] | CUP; SEALING,CYL HEAD | OD=18 |
| 007(C). | 5112190110 | [7] | CUP; SEALING,CYL HEAD | OD=14 |
| 009. | 8980170630 | [2] | STUD; INL MANIF | M8X71 L=83 |
| 010(A). | 8980542560 | [4] | PLUG; GLOW | NGK 24V |
| 011. | 8980143350 | [1] | CONNECTOR; GLOW PLUG | |
| 012. | 8980520410 | [1] | HANGER; ENG,RR | |
| 013. | 0280508200 | [2] | BOLT; HANGER | M8X20 FLANGE |
| 014(A). | 8980484460 | [4] | STUD; EXH MANIF | M10X70 L=83 |
| 014(B). | 8973070752 | [4] | STUD; EXH MANIF | M10X33 L=48 |
| 015. | 0287510250 | [2] | BOLT; HANGER,FRT | M10X25 FLANGE |
| 039. | 8973291291 | [20] | DOWEL; CAP,CM/SHF | |
| 091. | 8943432111 | [1] | PIPE; HTR | |
| 123. | 8973666320 | [1] | BOLT; COVER | M8X20 FLANGE |
| 143. | 0286508400 | [20] | BOLT; FIX | M8X40 FLANGE |
| 155. | 0583306100 | [4] | BOLT; BAFFLE PLATE | M6X10 HEX SOCKET |
| 168. | 8980201660 | [1] | HANGER; ENG,FRT | |
| 172. | 8980168650 | [1] | PLATE; BAFFLE,CYL HD | |
| 192. | 8973688530 | [4] | NUT; GLOW PLUG | M4 FLANGE |
| 224. | 0911802080 | [3] | NUT; COVER | M8 FLANGE |
| 225(A). | 0410108500 | [2] | STUD; COVER | M8X50 L=62 |
| 225(B). | 8980077800 | [1] | STUD; COVER | M8X80 L=91 |
| 225(C). | 8980170620 | [1] | STUD; COVER | M8X15.5 L=33 |
| 230. | 1096390340 | [4] | GASKET; SLEEVE,INJECTOR | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 232(A). | 8973666330 | [1] | STUD; CAM,CARRIER | M8X15 M8X17 L=40 |
| 232(B). | 8973754600 | [1] | STUD; CAM,CARRIER | M6X12 M8X17 L=37 |
| 262. | 8973555164 | [1] | COVER; CYL HEAD | |
| 263(A). | 0280508600 | [1] | BOLT; CYL HD | M8X60 FLANGE |
| 263(B). | 0286508350 | [3] | BOLT; CYL HD | M8X35 FLANGE |
| 267. | 8944146880 | [1] | CAP; PIPE,HTR | A |
| 267. | 8941077930 | [1] | CAP; PIPE,HTR | |
| 268. | 8941258621 | [1] | CLIP; CAP | ID=20.8 |
