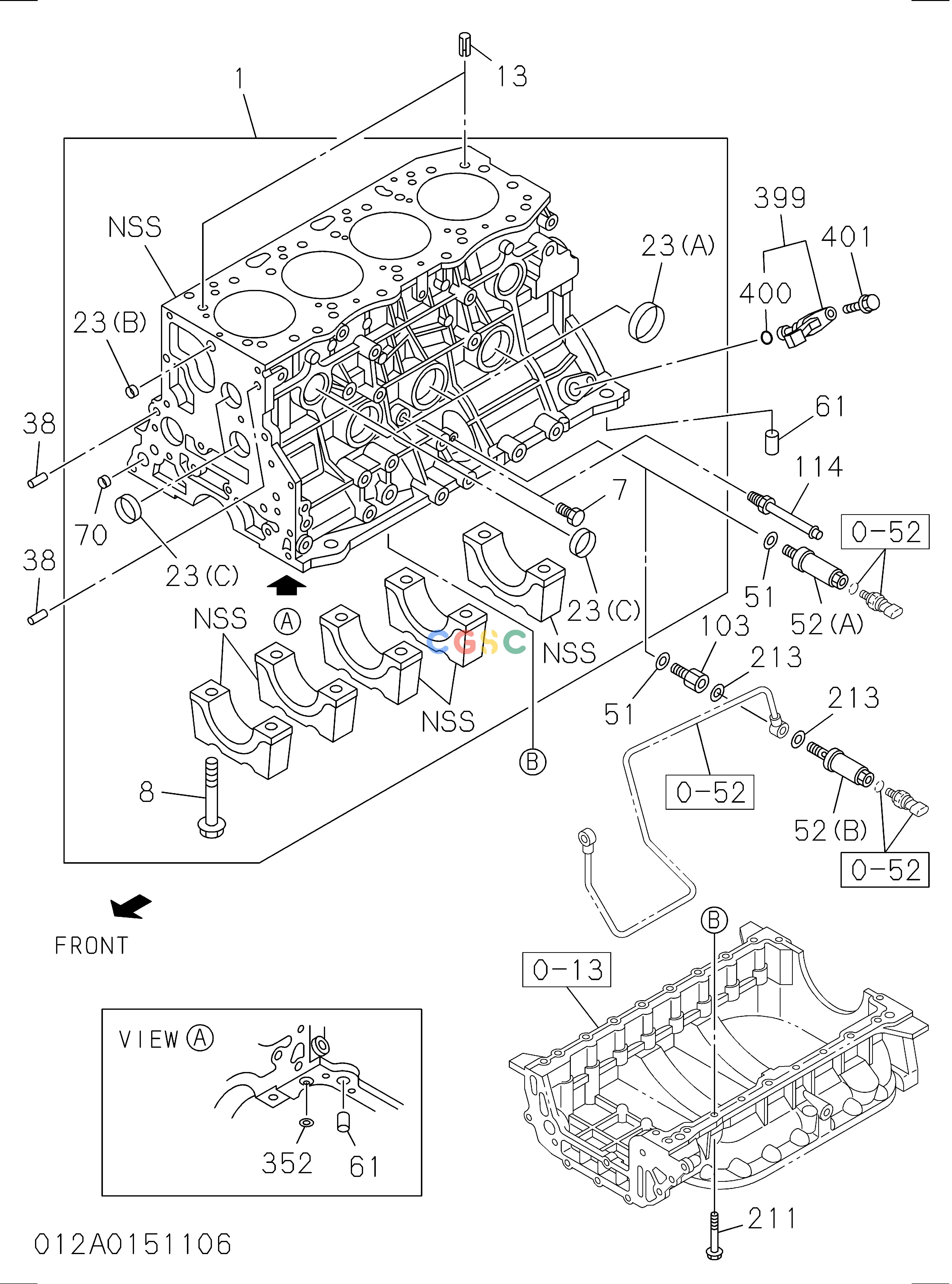

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 001. | 8980138242 | [1] | BLOCK ASM; CYL | |
| 007. | 9096640010 | [1] | PLUG; WATER DRAIN | PT 1/4 |
| 008. | 8944326420 | [10] | BOLT; BRG CAP | M14X89 FLANGE |
| 013. | 8944533440 | [2] | DOWEL; C/BL TO HD | |
| 015. | 1096050500 | [5] | PLUG; OIL GALLERY | PT 1/8 |
| 021(A). | 5112190170 | [1] | CUP; SEALING,RR | OD=38 |
| 021(B). | 5112190180 | [1] | CUP; SEALING,RR | OD=36 |
| 021(C). | 5096000130 | [1] | CUP; SEALING,RR | OD=12.3 |
| 023(A). | 8970365501 | [3] | CUP; SEALING,C/BL FRT & RR | OD=45 |
| 023(B). | 5112190080 | [2] | CUP; SEALING,C/BL FRT & RR | OD=18 |
| 023(C). | 5112190150 | [4] | CUP; SEALING,C/BL FRT & RR | OD=32 |
| 023(D). | 5112190180 | [2] | CUP; SEALING,C/BL FRT & RR | OD=36 |
| 029. | 9132130350 | [1] | GASKET; COVER,OIL PORT | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 038. | 8971354230 | [2] | PIN; TIMING GEAR CASE | L=20 OD=10 |
| 051. | 8943362920 | [1] | GASKET; OIL PRESS WARNING SW,C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 052(A). | 8980194751 | [1] | NIPPLE; OIL PRESS WARNING SW,C/BL | |
| 053. | 9096065350 | [1] | BOLT; REAMER | M10X43 |
| 061. | 9098785970 | [2] | PIN; STRAIGHT | |
| 070. | 5111290060 | [6] | CUP; SEALING,FRT & RR | OD=16 |
| 083. | 9081510300 | [1] | PIN; FLYWHEEL HSG | |
| 211. | 0286508250 | [19] | BOLT; CRANKCASE | M8X25 FLANGE |
| 218. | 9095714140 | [1] | GASKET; PLUG,C/BL SIDE | ID=14.2 OD=20.0 ALSO INCLUDED IN GASKET SET(ENGINE) |
| 303(A). | 9095672180 | [1] | GASKET; PLUG | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 303(B). | 9095672300 | [1] | GASKET; PLUG | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 352. | 8980595080 | [1] | GASKET; C/BL TO CRANKCASE | C ALSO INCLUDED IN GASKET SET(ENGINE) |
| 352. | 8980986210 | [1] | GASKET; C/BL TO CRANKCASE | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 399. | 8973121081 | [1] | SENSOR; CRANKSHAFT POSITION | |
| 400. | 8973694040 | [1] | GASKET; CRANKSHAFT POSITION SENSOR | |
| 401. | 0280506160 | [1] | BOLT; SENSOR | M6X16 FLANGE |
| 448. | 8941526130 | [1] | PLUG; C/BL | M14X14 |
| 465(A). | 8970636120 | [1] | PLUG | |
| 465(B). | 8980388531 | [1] | PLUG |
