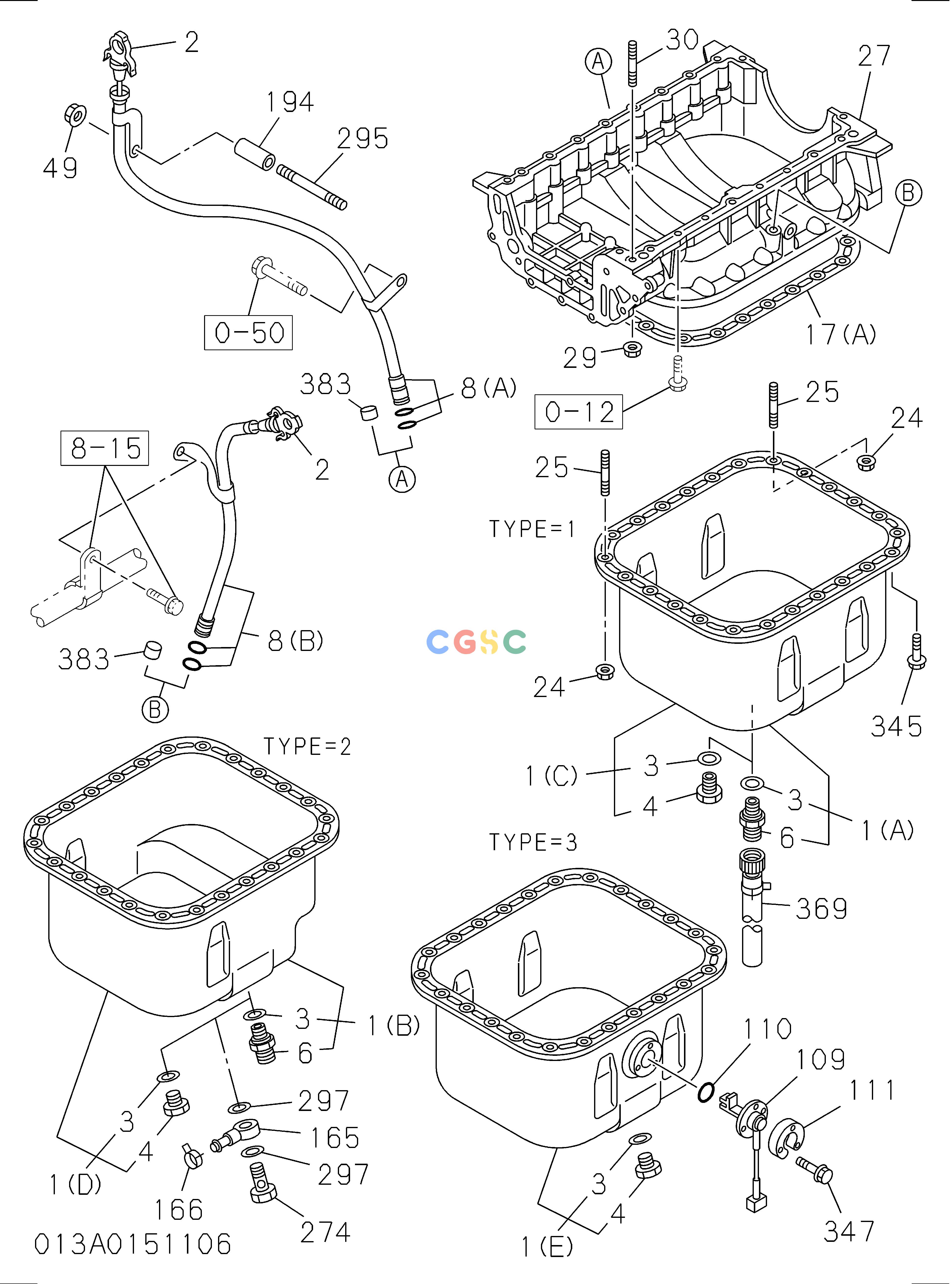

日立零件查询（CP220-3）013: OIL PAN AND LEVEL GAUGE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
974 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001(A). | 8980387651 | [1] | PAN ASM; OIL | TYPE=1 |
| 002. | 8980388661 | [1] | GAUGE; OIL LEVEL | |
| 003. | 1096300900 | [1] | GASKET; DRAIN PLUG | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 006. | 1096801060 | [1] | PLUG; OIL DRAIN | |
| 008(A). | 8980195133 | [1] | TUBE; GUIDE,OIL LEVEL GAUGE | |
| 017(A). | 8980195052 | [1] | GASKET; OIL PAN | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 024. | 0911802080 | [2] | NUT; OIL PAN | M8 FLANGE |
| 025. | 0410108160 | [2] | STUD; OIL PAN | M8X16 L=28 |
| 027. | 8980148246 | [1] | CRANKCASE | |
| 029. | 0911802080 | [1] | NUT; CRANKCASE | M8 FLANGE |
| 030. | 0410108400 | [1] | STUD; CRANKCASE | M8X40 L=52 |
| 049. | 0911802100 | [1] | NUT; GUIDE TUBE | M10 FLANGE |
| 194. | 8973050810 | [1] | SPACER; GUIDE TUBE | |
| 295. | 0440110700 | [1] | STUD; GUIDE TUBE | M10X70 L=85 |
| 345. | 0280508160 | [22] | BOLT; OIL PAN | M8X16 FLANGE |
| 383. | 5111290030 | [1] | CUP; SEALING | OD=15.6 |
