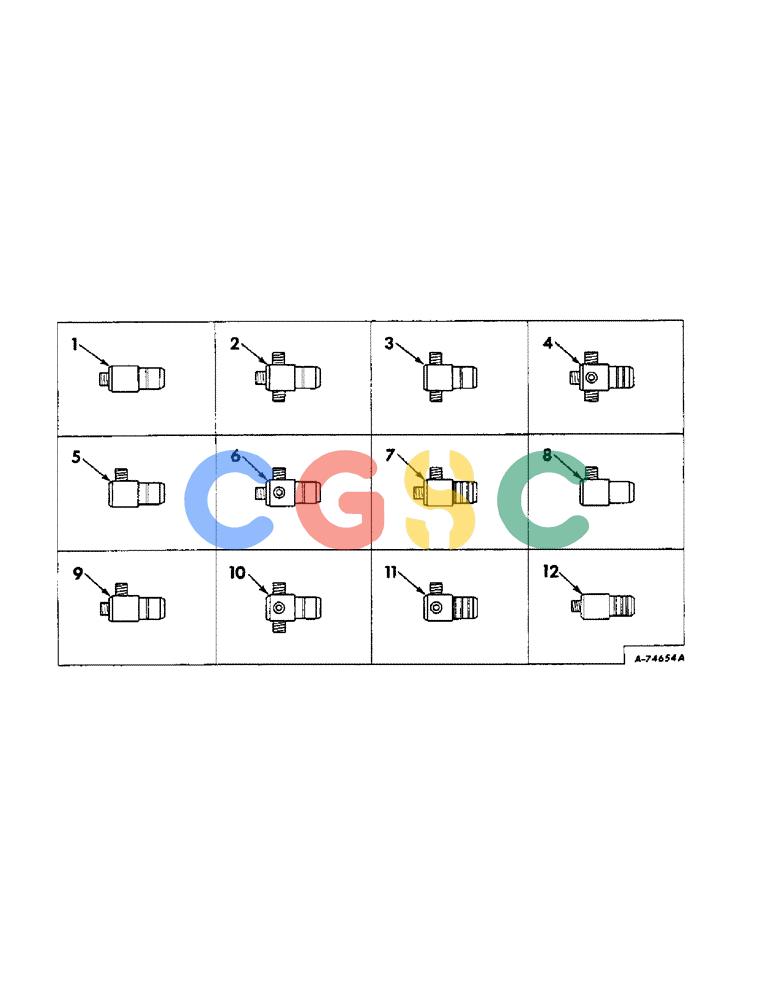

凯斯零件查询(37) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/63-12/88) (B-62) - CENTRALIZED LUBRICATION ATTACHMENT VALVES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
906 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
585854R91
|
[1] |
|
P
VALVE ASSY, top terminating, snap on, 1 ring .006 capacity
|
| 2. |
585865R91
|
[1] |
|
P
VALVE ASSY, top and 180 deg, snap on, 1 ring .006 capacity
|
| 3. |
585861R91
|
[1] |
|
P
VALVE ASSY, 180 deg, snap on, 1 ring .006 capacity
|
| 4. |
668598R91
|
[1] |
|
P
VALVE ASSY, top and tee, snap on, 2 rings .009 capacity
|
| 5. |
585857R91
|
[1] |
|
P
VALVE ASSY, 90 deg terminating, snap on, 1 ring .006 capacity
|
| 6. |
668599R91
|
[1] |
|
P
VALVE ASSY, top and 90 deg elbow, snap on, 1 ring .006 capacity
|
| 7. |
668802R91
|
[1] |
|
P
VALVE ASSY, top and 90 deg, snap on, 3 rings .021 capacity
|
| 8. |
668601R91
|
[1] |
|
P
VALVE ASSY, 90 deg terminating, snap on, no ring .003 capacity
|
| 9. |
588291R91
|
[1] |
|
P
VALVE ASSY, 90 deg terminating, snap on, 1 ring .006 capacity
|
| 10. |
668600R91
|
[1] |
|
P
VALVE ASSY, tee, snap on, 1 ring .006 capacity
|
| 11. |
631345R91
|
[1] |
|
P
VALVE ASSY, 90 deg elbow, snap on, 3 rings .021 capacity
|
| 12. |
585856R91
|
[1] |
|
P
VALVE ASSY, top terminating, snap on, 3 rings .021 capacity
|
