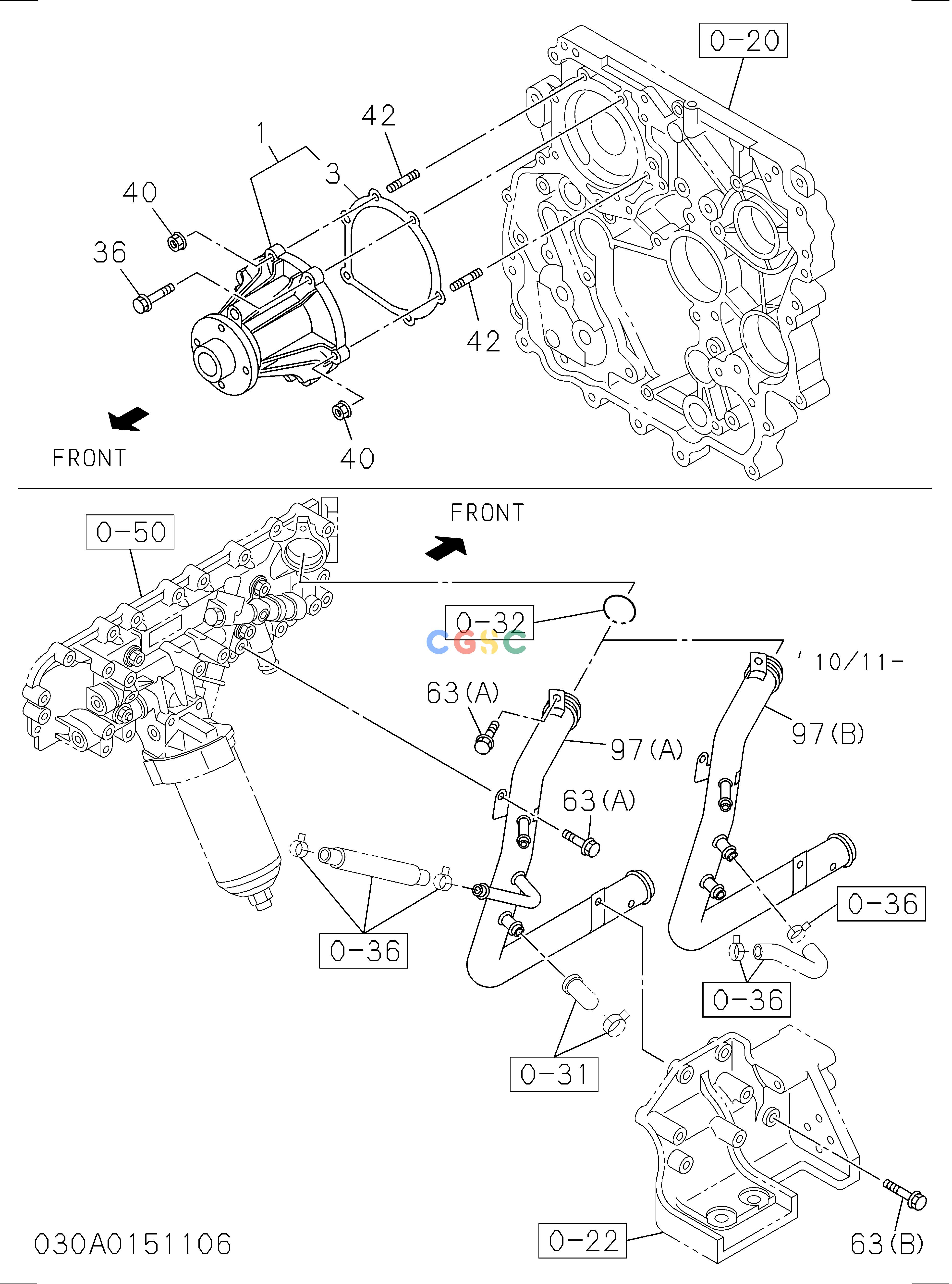

日立零件查询（CP220-3）030: WATER PUMP AND CORROSION RESISTOR Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
461 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001. | 8980476883 | [1] | PUMP ASM; WATER,W/GASKET | |
| 003. | 8973121560 | [1] | GASKET; PUMP TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 036. | 0280508600 | [4] | BOLT; WATER PUMP TO C/BL | M8X60 FLANGE |
| 040. | 0911802080 | [2] | NUT; WATER PUMP | M8 FLANGE |
| 042. | 0410108300 | [2] | STUD; WATER PUMP | M8X30 L=41 |
| 063(A). | 0280508160 | [2] | BOLT; INL PIPE | M8X16 FLANGE |
| 063(B). | 0286508300 | [1] | BOLT; INL PIPE | M8X30 FLANGE |
| 097(A). | 8980196801 | [1] | PIPE; WATER | |
| 097(B). | 8981793100 | [1] | PIPE; WATER | |
