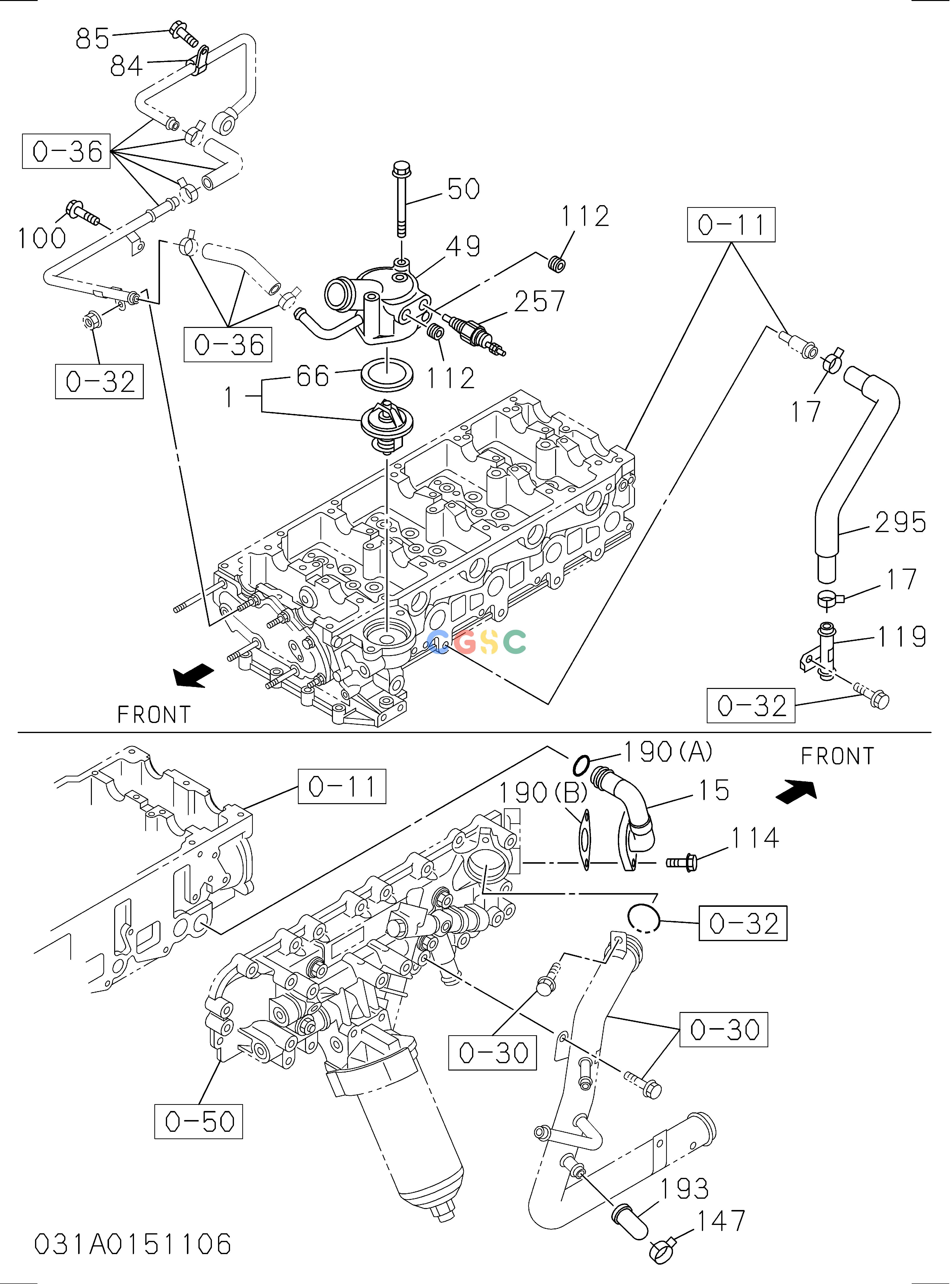

日立零件查询（CP220-3）031: THERMOSTAT AND HOUSING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
699 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001. | 8980170271 | [1] | THERMOSTAT | 85�C |
| 015. | 8973187322 | [1] | PIPE; BYPASS | |
| 017. | 8941258621 | [2] | CLIP; WATER HOSE | ID=20.8 |
| 049. | 8980196950 | [1] | PIPE; WATER OUTLET | |
| 050. | 0280508800 | [2] | BOLT; OUTLET PIPE | M8X80 FLANGE |
| 066. | 8981145870 | [1] | GASKET; THERMOSTAT | |
| 084. | 0952350250 | [1] | CLIP; WATER PIPE | ID=11 L=16 |
| 085. | 0280506120 | [1] | BOLT; CLIP | M6X12 FLANGE |
| 100. | 0280506120 | [1] | BOLT; WATER PIPE | M6X12 FLANGE |
| 112. | 5096050050 | [1] | PLUG | PT 3/8 |
| 114. | 0286508250 | [2] | BOLT; BYPASS PIPE | M8X25 FLANGE |
| 119. | 8980387741 | [1] | PIPE; HTR | |
| 147. | 8941258621 | [1] | CLIP; RUBBER CAP | ID=20.8 |
| 190(A). | 0956902260 | [1] | GASKET; BYPASS PIPE | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 190(B). | 8980093220 | [1] | GASKET; BYPASS PIPE | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 193. | 8944146880 | [1] | CAP; RUBBER | A |
| 193. | 8941077930 | [1] | CAP; RUBBER | |
| 257. | 8971256001 | [1] | SWITCH; WARNING,OVER HEAT | |
| 295. | 8980555700 | [1] | HOSE; RUBBER,HTR | |
