日立零件查询（CP220-3）033: FAN AND FAN BELT Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
685 次

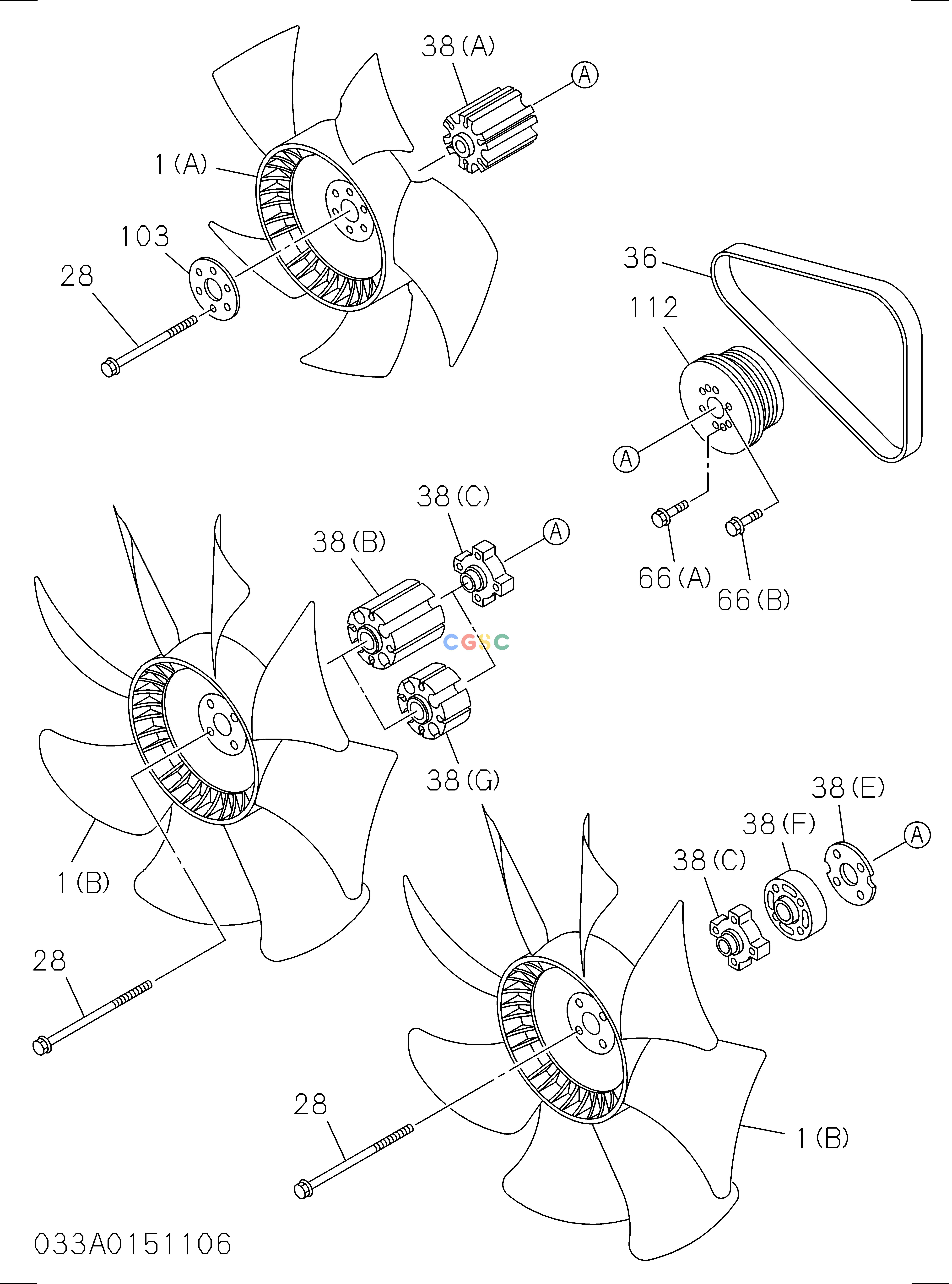

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001(A). | 8980185071 | [1] | FAN; COOLING | 5 BLADE OD=650 |
| 028. | 8972264701 | [6] | BOLT; COOLING FAN | M10X125 FLANGE |
| 036. | 8980388560 | [1] | BELT; COOLING FAN | L=996 |
| 038(A). | 8980388670 | [1] | SPACER; FAN | H=101.5 OD=100 |
| 066(A). | 0208006120 | [2] | BOLT; PULLEY | M6X12 |
| 071. | 8943881781 | [1] | BOLT; ADJ PLATE,GEN | |
| 080(A). | 8980387851 | [1] | PLATE; ADJ | |
| 081(A). | 8972572230 | [1] | PIECE; SLIDING | |
| 082. | 0911802080 | [1] | NUT; ADJ PLATE | M8 FLANGE |
| 088. | 0916147080 | [1] | WASHER; PL,ADJ PLATE | ID=8.4 OD=22 |
| 096. | 0286508200 | [1] | BOLT; ADJ PLATE | M8X20 FLANGE |
| 103. | 8980201440 | [1] | PLATE; FAN CLU | |
| 112. | 8980388130 | [1] | PULLEY; FAN CENTER | |
