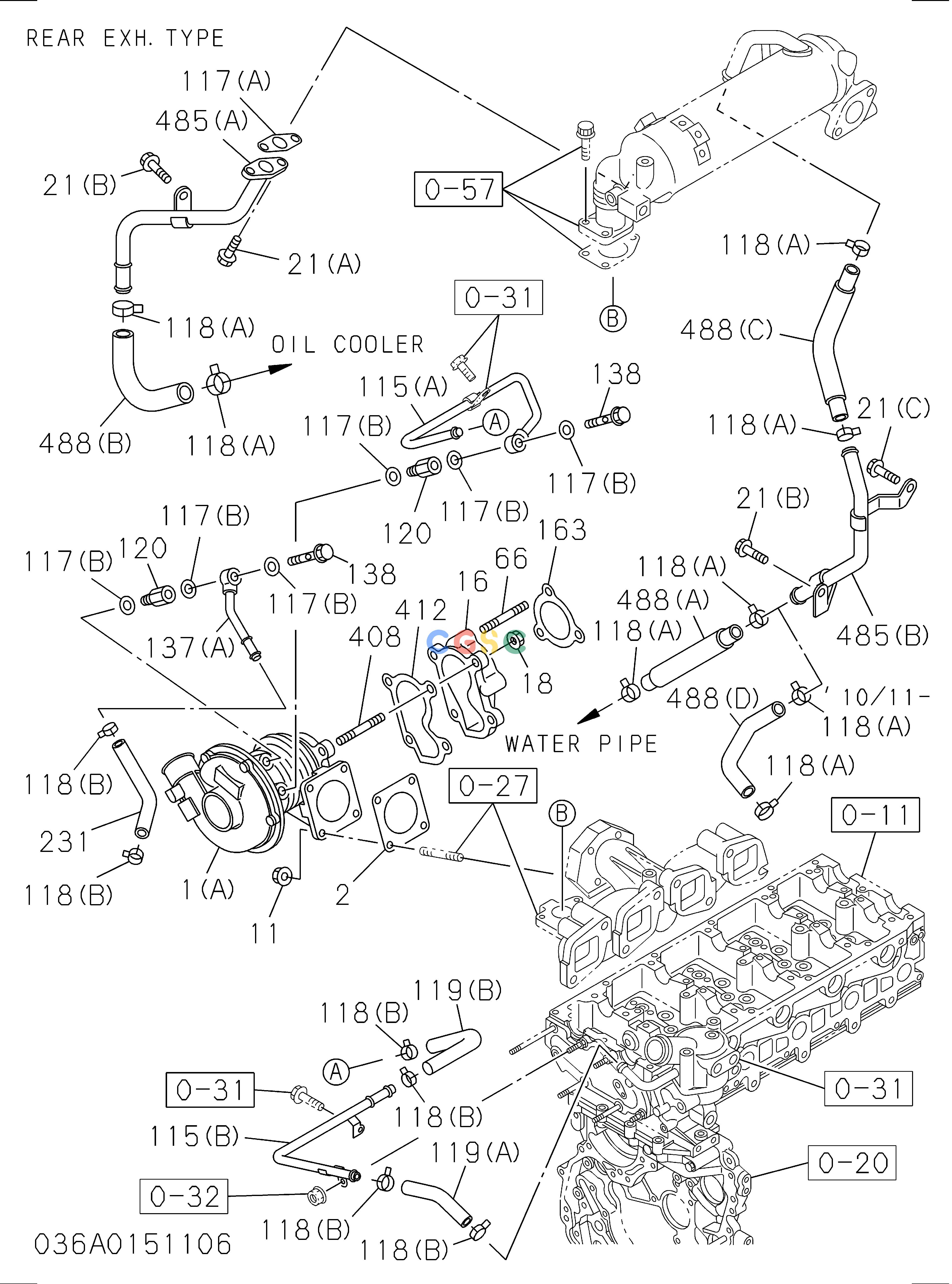

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 001(A). | 8980681970 | [1] | TURBOCHARGER ASM | |
| 001(A). | 8981851951 | [1] | TURBOCHARGER ASM | |
| 002. | 8944336050 | [1] | GASKET; TURBOCHARGER TO EXH MANIF | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 011. | 8971616070 | [4] | NUT; TURBOCHARGER | M8 FLANGE |
| 016. | 8980199011 | [1] | ADAPTER; EXH PIPE | |
| 018. | 8971616070 | [4] | NUT; EXH PIPE | M8 FLANGE |
| 021(A). | 0280506200 | [2] | BOLT; PIPE | M6X20 FLANGE |
| 021(B). | 0280508120 | [2] | BOLT; PIPE | M8X12 FLANGE |
| 021(C). | 0280508160 | [1] | BOLT; PIPE | M8X16 FLANGE |
| 066. | 9041308250 | [3] | STUD; EXH PIPE | |
| 115(A). | 8980196981 | [1] | PIPE; WATER,TURBOCHARGER OUT | |
| 115(B). | 8980196990 | [1] | PIPE; WATER,TURBOCHARGER OUT | |
| 117(A). | 8972621170 | [1] | GASKET; WATER PIPE | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 117(B). | 9095714120 | [6] | GASKET; WATER PIPE | A ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE) |
| 117(B). | 9099208731 | [6] | GASKET; WATER PIPE | ID=12.2 ALSO INCLUDED IN GASKET SET(ENGINE) |
| 118(A). | 8941258621 | [6] | CLIP; WATER HOSE | ID=20.8 |
| 118(B). | 8943679430 | [6] | CLIP; WATER HOSE | ID=12.8 |
| 119(A). | 0035593000 | [1] | HOSE; WATER,TURBOCHARGER | L=140 S.B. L=3000 |
| 119(B). | 8980197700 | [1] | HOSE; WATER,TURBOCHARGER | |
| 120. | 8944725830 | [2] | ADAPTER; WATER | |
| 137(A). | 8980197000 | [1] | PIPE; WATER,TURBOCHARGER IN | |
| 138. | 8980387080 | [2] | BOLT; EYE,WATER PIPE | A M12X24 FLANGE |
| 138. | 1096750810 | [2] | BOLT; EYE,WATER PIPE | M12X24 FLANGE |
| 231. | 8980197710 | [1] | HOSE; RUBBER,TURBOCHARGER OUT | |
| 408. | 8973780600 | [4] | STUD; TURBOCHARGER TO ADAPTER | M8X20 L=31 |
| 412. | 8944336040 | [1] | GASKET; TURBOCHAGER | ALSO INCLUDED IN GASKET SET(ENG. & HEAD) |
| 485(A). | 8980197011 | [1] | PIPE; WATER EGR | |
| 485(B). | 8980197021 | [1] | PIPE; WATER EGR | |
| 488(A). | 0035663000 | [1] | HOSE; RUBBER | L=100 S.B. L=3000 |
| 488(B). | 8980425240 | [1] | HOSE; RUBBER | |
| 488(C). | 8980197720 | [1] | HOSE; RUBBER | |
| 488(D). | 8981793140 | [1] | HOSE; RUBBER |
