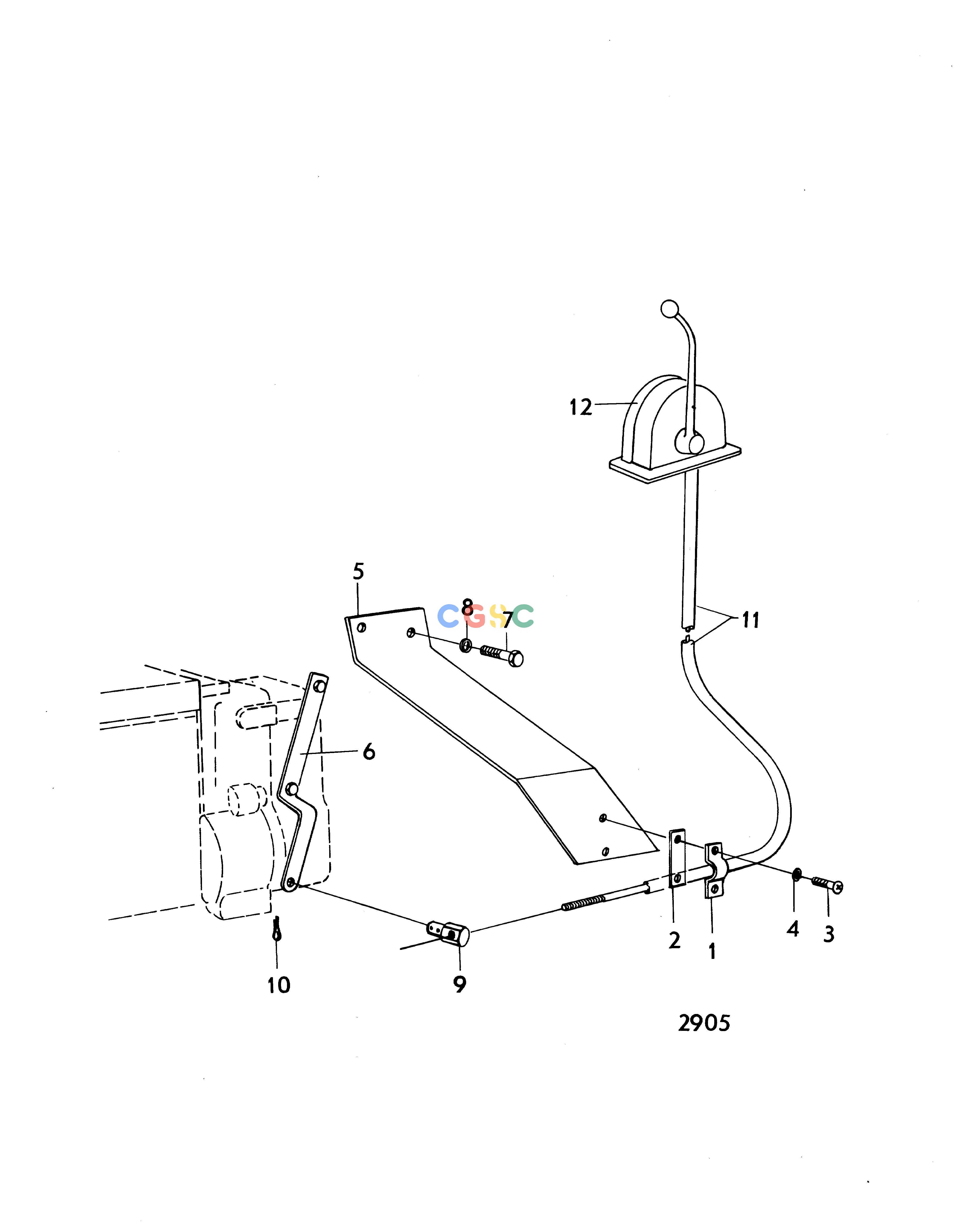

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCControlsEngine Speed Control and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
820 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21471054
|
[1] |
Bracket
|
|
| 2. |
819068
|
[1] |
Washer
|
|
| 3. |
950021
|
[2] |
Cross recessed screw
|
|
| 4. |
941905
|
[2] |
Spring washer
|
|
| 5. |
823696
|
[1] |
Bracket
|
|
| 6. |
823695
|
[1] |
Control arm
|
|
| 7. |
940114
|
[2] |
Hexagon screw
|
|
| 8. |
942336
|
[2] |
Spring washer
|
|
| 9. |
804312
|
[1] |
Cube
|
|
| 10. |
17276
|
[1] |
Split pin
|
|
| 11. |
|
|
|
See group 9
|
| 12. |
|
|
|
See group 9
|
