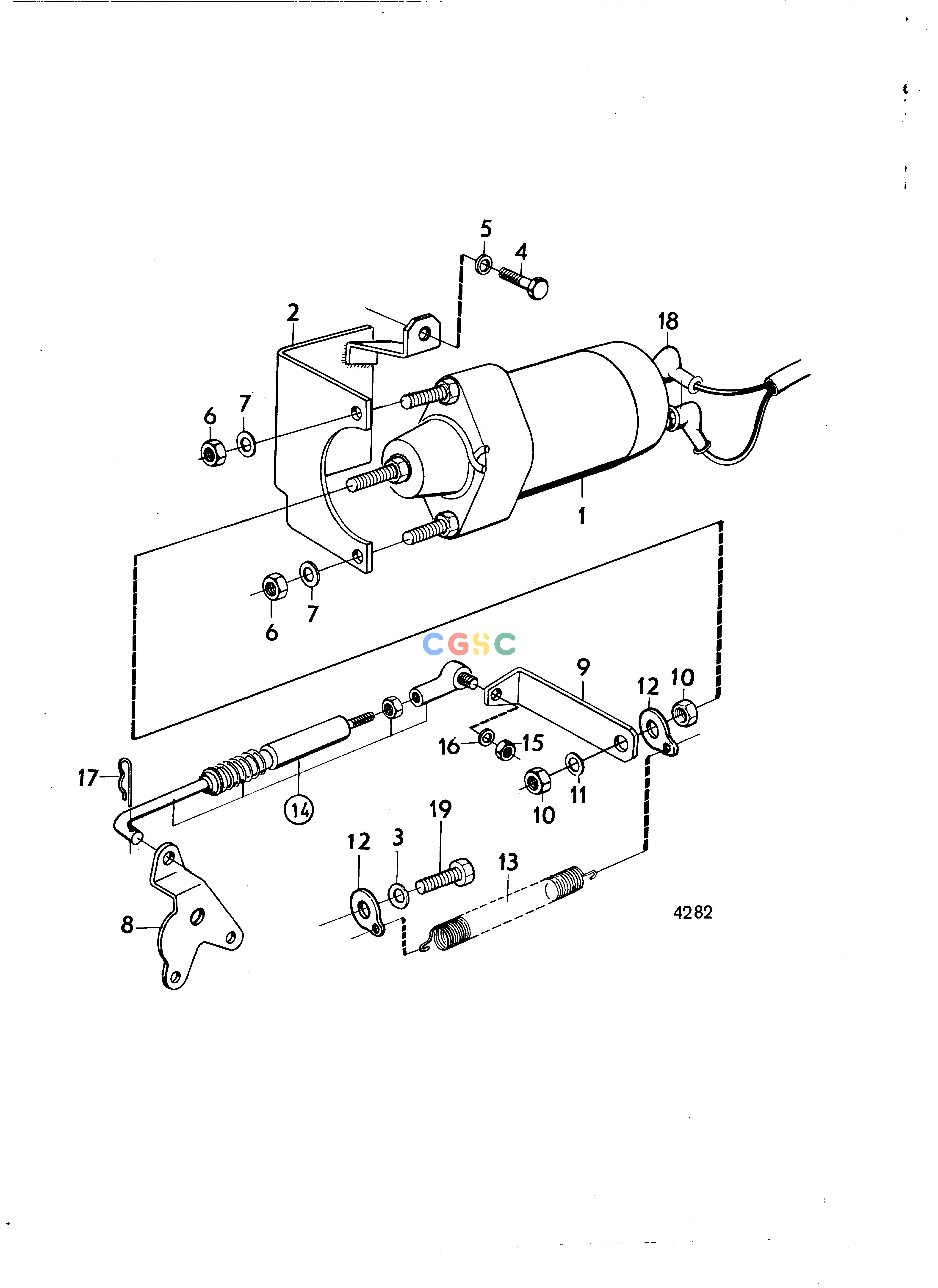

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCControlsStop Solenoid and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
919 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
842549
|
[1] |
Stop solenoid
|
24V
|
| 2. |
842547
|
[1] |
Bracket
|
|
| 3. |
941906
|
[1] |
Spring washer
|
|
| 4. |
955534
|
[2] |
Hexagon screw
|
|
| 5. |
942336
|
[2] |
Spring washer
|
|
| 6. |
955826
|
[2] |
Hexagon nut
|
|
| 7. |
941907
|
[2] |
Spring washer
|
|
| 8. |
821134
|
[1] |
Lever
|
|
| 9. |
842546
|
[1] |
Attaching plate
|
|
| 10. |
955856
|
[2] |
Nut
|
|
| 11. |
941906
|
[1] |
Spring washer
|
|
| 12. |
|
|
|
|
| 13. |
819809
|
[1] |
Spring
|
|
| 14. |
842541
|
[1] |
Link rod
|
|
| 15. |
955844
|
[1] |
Hexagon nut
|
|
| 16. |
941905
|
[1] |
Spring washer
|
|
| 17. |
664822
|
[1] |
Split pin
|
(678146)
|
| 18. |
76614
|
[2] |
Rubber collar
|
|
| 19. |
955272
|
[1] |
Hexagon screw
|
|
