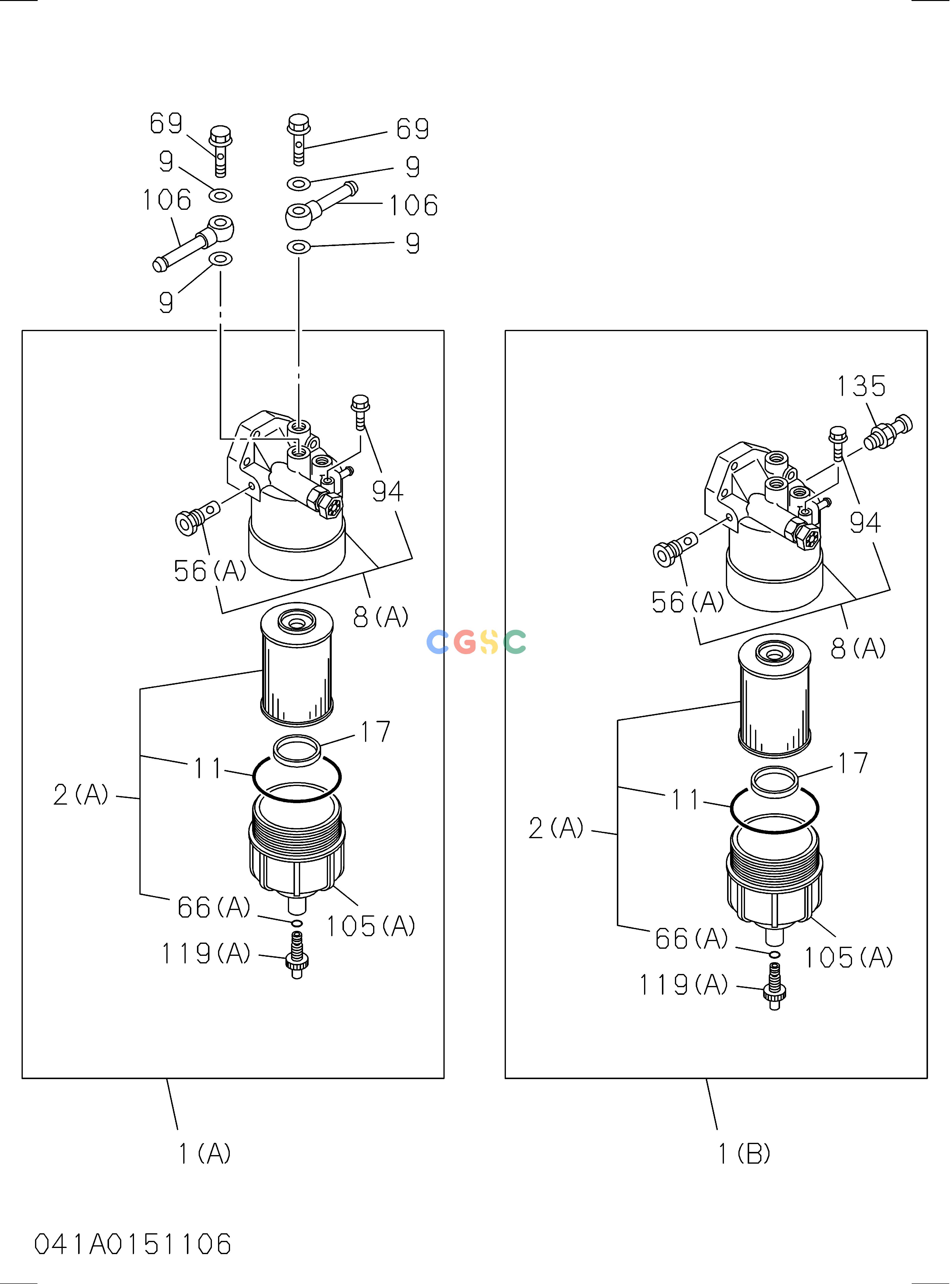

日立零件查询（CP220-3）041: FUEL FILTER AND BRACKET Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
525 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001(A). | 8980139863 | [1] | FILTER ASM; FUEL | |
| 001(B). | 8980945461 | [1] | FILTER ASM; FUEL | C |
| 001(B). | 8981438250 | [1] | FILTER ASM; FUEL | |
| 001(B). | 8981660911 | [1] | FILTER ASM; FUEL | DUAL ELEMENT |
| 002(A). | 8980088401 | [1] | ELEMENT KIT; FUEL FILTER | C |
| 002(A). | 8981430410 | [1] | ELEMENT KIT; FUEL FILTER | SINGLE GREEN |
| 002(A). | 8981527381 | [1] | ELEMENT KIT; FUEL FILTER | DUAL GREEN |
| 008(A). | 8980864340 | [1] | COVER; FUEL FILTER | |
| 009. | 1096300860 | [4] | GASKET; EYE JOINT | ID=16.2 |
| 011. | 8980088420 | [1] | GASKET; CASE TO BODY,FUEL FILTER | |
| 017. | 8980088490 | [1] | FLOAT; FUEL FILTER | |
| 056(A). | 8980088471 | [1] | PLUG; FUEL FILTER | |
| 066(A). | 8980088430 | [1] | GASKET; PLUG,FUEL FILTER | |
| 069. | 1096750951 | [2] | BOLT; EYE,FUEL FILTER | M16X30 FLANGE |
| 094. | 8980088460 | [1] | VALVE; FUEL FILTER | |
| 105(A). | 8980088440 | [1] | CASE; FUEL FILTER | |
| 106. | 8973834270 | [2] | PIPE; FUEL | |
| 119(A). | 8980088480 | [1] | PLUG; DRAIN,FUEL FILTER | |
| 135. | 8980864330 | [1] | SENSOR | |
