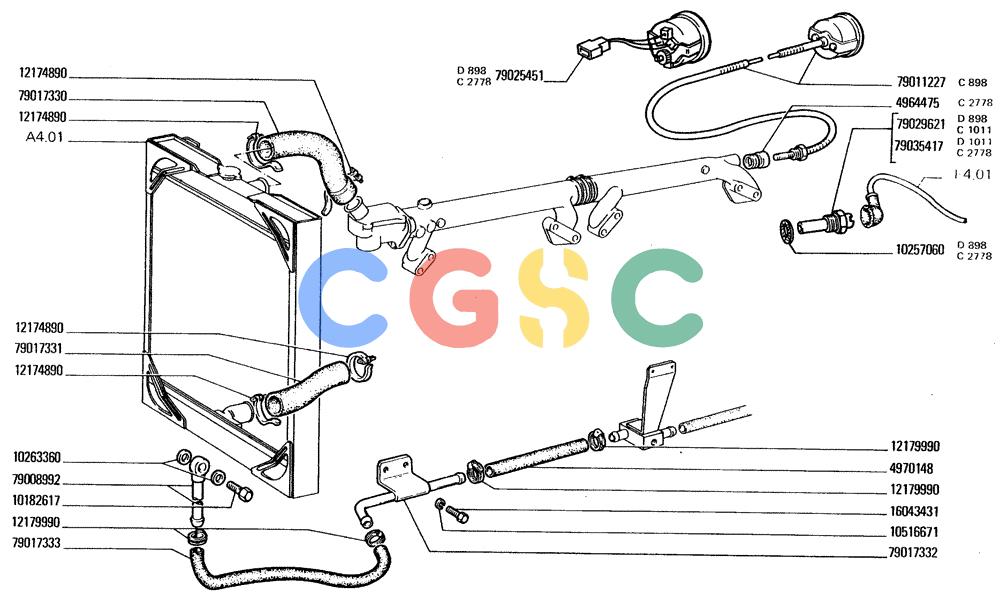

纽荷兰零件查询(FD20) - CRAWLER DOZER (A4.02[006]) - WATER PUMP AND LINES New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
572 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 4964475. | 4964475 | [1] | HYD CONNECTOR | MODFITTING |
| 4970148. | 4970148 | [1] | HOSE | LECPIPE |
| 10182617. | 10182617 | [1] | BANJO BOLT,M20 x 1.5 x 36mm | TTFUNION |
| 10257060. | 10257060 | [1] | SEALING WASHER,16.3mm ID x 22mm OD x 1.5mm Thk | BHBSEALING, M16.3 x 22 x 1.5, Copper Superseded by part number: 16508260 |
| 10263360. | 10263360 | [2] | SEAL,20.3mm ID x 26mm OD x 1mm Thk | TTFWASHER, SEALING, , Copper M20.3 x 26 x 1 |
| 10516671. | 10516671 | [4] | LOCK WASHER | BHBLOCKWASHER Superseded by part number: 83990583 |
| 1214890. | 12174890 | [4] | HOSE CLIP | MODCOLLAR Superseded by part number: 17765092 |
| 12179990. | 12179990 | [4] | HOSE CLIP | MKTCOLLAR Superseded by part number: |
| 16043431. | 16043431 | [4] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB Superseded by part number: 16605534 |
| 79008992. | 79008992 | [1] | RIGID TUBE | LECPIPE |
| 79011227. | 79011227 | [1] | THERMOMETER | LECTEMPERATURE GAUGE Superseded by part number: 79029621, 79025451, 79013422, 10257060 |
| 79017330. | 79017330 | [1] | HOSE | LECSLEEVE |
| 79017331. | 79017331 | [1] | HOSE | LECSLEEVE |
| 79017332. | 79017332 | [1] | RIGID TUBE | LECPIPE |
| 79017333. | 79017333 | [1] | HOSE | LECSLEEVE |
| 79025451. | 79025451 | [1] | THERMOMETER | MODTEMPERATURE GAUGE Superseded by part number: 79066169 |
| 79029621. | 79029621 | [1] | SENDER UNIT | MKTSENDING UNIT Superseded by part number: 79035417 |
| 79035417. | 79035417 | [1] | SENDER UNIT | MODSENDING UNIT Superseded by part number: 79072544 |
