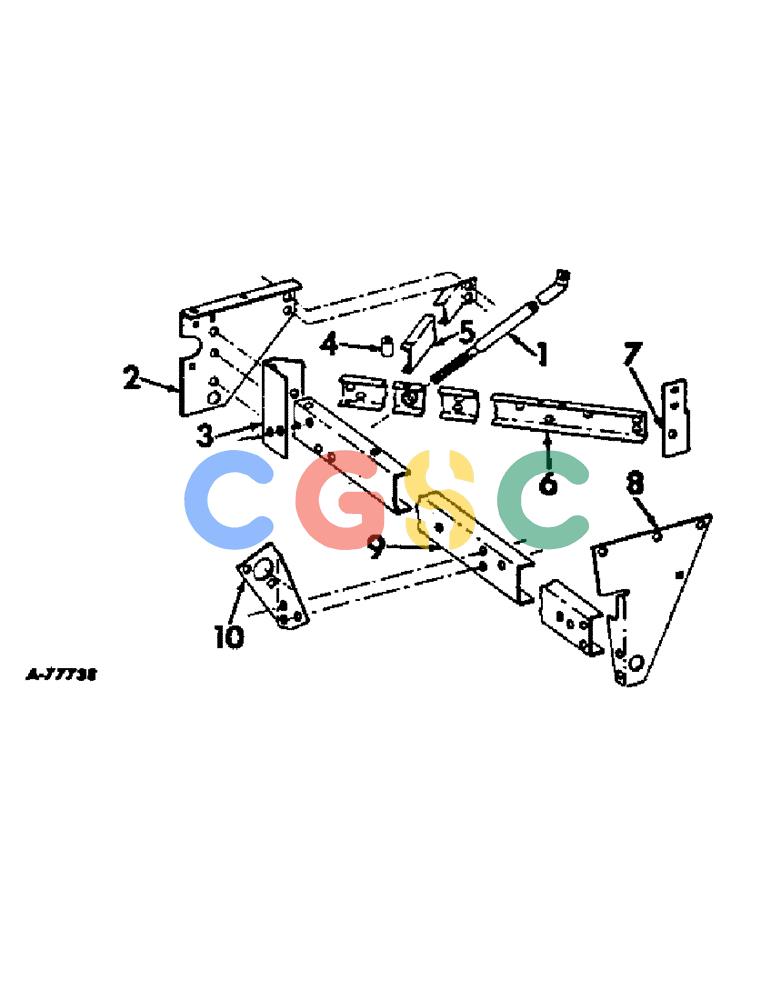

| 1. |
671622R91
|
[1] |
SUPPORT ASSY.
|
IH
SUPPORT ASSY, bale chamber
|
| . . |
280954
|
[2] |
NUT,3/4"-10, G5
|
NH
|
| 2. |
670444R2
|
[1] |
SUPPORT
|
IH
GUSSET, right axle
|
| 3. |
670439R2
|
[1] |
BRACKET
|
IH
axle channel tie
|
| . . |
180145
|
[4] |
BOLT,Hex, 7/16" - 14 x 1", Gr 5
|
IH
SCREW, 7/16-14 x 1 C-Z hex-hd cap Superseded by part number: 9706729
|
| . . |
18421R1
|
[1] |
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
|
IH
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd Superseded by part number: 412-716
|
| . . |
271501
|
[5] |
SOCKET
|
NNA
NUT, 7/16-14 C-Z hex.
|
| . . |
120383
|
[5] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| . . |
180122
|
[2] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
IH
3/8-16 x 1 C-Z hex-hd cap Superseded by part number: 113-207
|
| . . |
120377
|
[2] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[2] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 4. |
670446R1
|
[1] |
SPACER,1/2" Pipe x 3"
|
IH
diagonal brace cross
|
| . . |
18814R1
|
[1] |
BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2
|
IH
1/2 x 4-1/2 C-Z hex-hd mach Superseded by part number: 113-411
|
| . . |
120378
|
[1] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| . . |
120384
|
[1] |
WASHER,1/2"
|
IH
LOCK, 1/2" Superseded by part number: 116121
|
| . . |
20869R1
|
[1] |
WASHER
|
IH
17/32 x 7/8 x 16 ga C-Z (or as required) Superseded by part number: 86622500
|
| 5. |
670445R1
|
[1] |
CHANNEL
|
IH
diagonal brace cross
|
| . . |
18494R1
|
[2] |
BOLT,Hex, 3/8" - 16 x 1", Gr 2
|
IH
3/8 x 1 C-Z hex-hd mach Superseded by part number: 424-616
|
| 6. |
670442R11
|
[1] |
CHANNEL
|
IH
ASSY, diagonal brace
|
| . . |
NLS
|
[1] |
NO LONGER SERVICED
|
BAS
NUT, 7/16-14 C-Z hex.
|
| 7. |
670443R1
|
[2] |
SUPPORT
|
IH
BRACKET, diagonal brace
|
| . . |
17351R1
|
[2] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 C-Z sq-nk crg Superseded by part number: 88682
|
| . . |
18508R1
|
[4] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8 x 3/4 C-Z sq-nk crg Superseded by part number: 86508748
|
| 8. |
670438R1
|
[1] |
SUPPORT
|
IH
GUSSET, left axle
|
| . . |
113-206
|
[3] |
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
|
CAS
3/8-16 x 3/4 znd hex-hd cap Superseded by part number: 86500692
|
| . . |
180147
|
[2] |
SCREW,Hex, 7/16" - 14 x 1 1/4", Gr 5
|
IH
7/16-14 x 1-1/4 C-Z hex-hd cap Superseded by part number: 9627887
|
| 9. |
670437R3
|
[1] |
AXLE
|
IH
CHANNEL, axle
|
| 10. |
670441R1
|
[1] |
GUSSET
|
IH
ANGLE, center axle gusset
|
