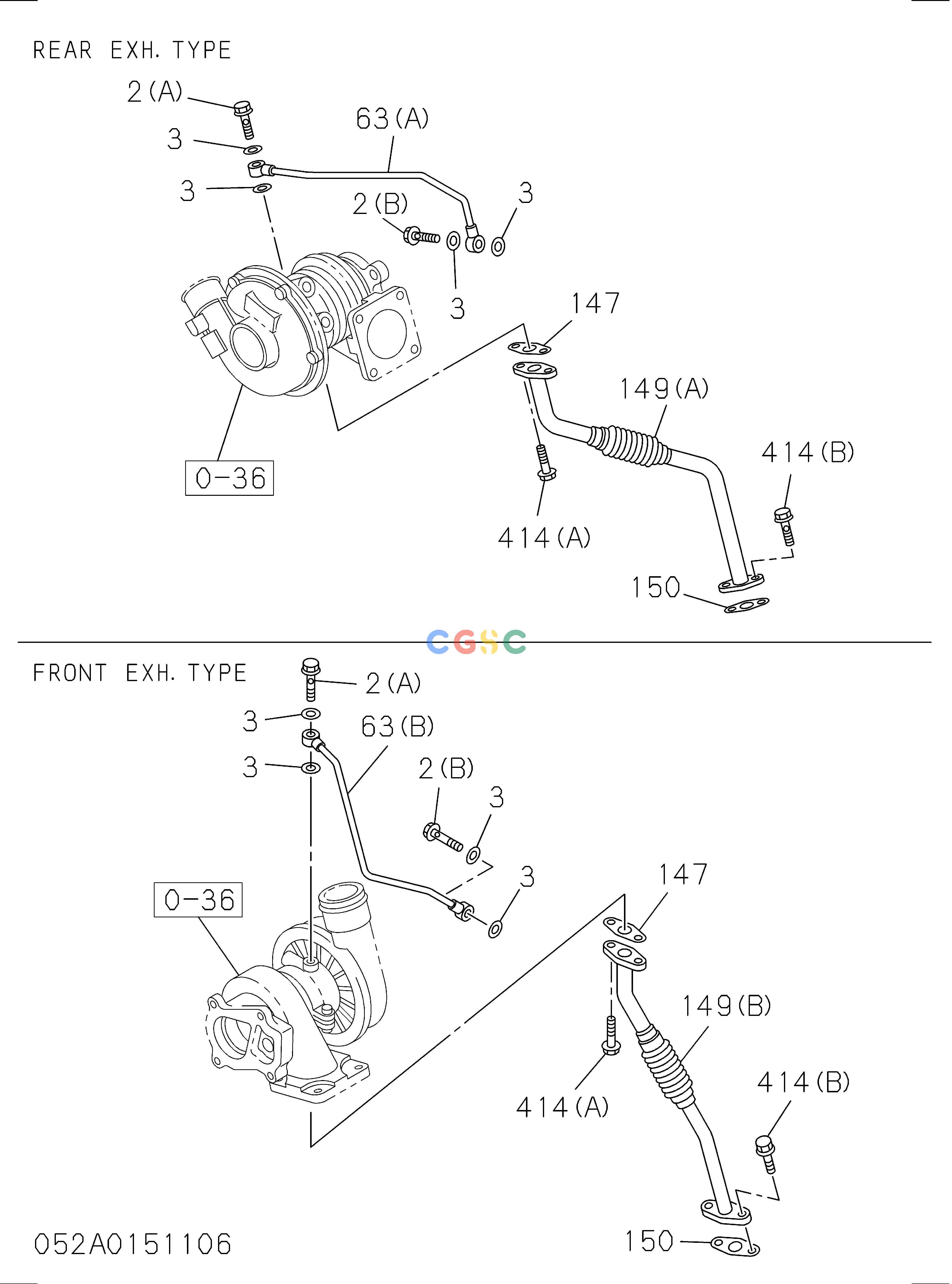

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 002(A). | 8944435350 | [1] | BOLT; EYE,OIL PIPE | M10X27 |
| 002(B). | 9099062051 | [1] | BOLT; EYE,OIL PIPE | M10X24 |
| 003. | 9095714100 | [4] | GASKET; EYE BOLT,OIL PIPE | ID=10.2 OD=16.0 ALSO INCLUDED IN GASKET SET(ENGINE) |
| 029(A). | 0280508100 | [1] | BOLT; OIL PIPE,OIL JET | M8X10 FLANGE |
| 029(B). | 8971172981 | [4] | BOLT; OIL PIPE,OIL JET | M6X20 |
| 057. | 8973121323 | [1] | PIPE; OIL,OIL JET | |
| 058. | 8972390481 | [1] | VALVE; RELIEF,OIL JET,PISTON COOLING | |
| 063(A). | 8980195110 | [1] | PIPE; OIL,TURBOCHARGER FEED | |
| 147. | 8980294750 | [1] | GASKET; OIL PIPE TO TURBOCHARGER | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 149(A). | 8980195121 | [1] | PIPE; OIL RETURN,TURBOCHARGER | |
| 150. | 8980294760 | [1] | GASKET; OIL PIPE TO C/BL | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 414(A). | 0286506200 | [2] | BOLT; OIL PIPE | M6X20 FLANGE |
| 414(B). | 0286508200 | [2] | BOLT; OIL PIPE | C M8X20 FLANGE |
| 414(B). | 8973666320 | [2] | BOLT; OIL PIPE | M8X20 FLANGE |
| 495. | 8980274560 | [1] | SENSOR; OIL PRESS | |
| 572. | 1096300850 | [1] | GASKET; SENSOR | ID=14.2 OD=19.2 ALSO INCLUDED IN GASKET SET(ENGINE) |
