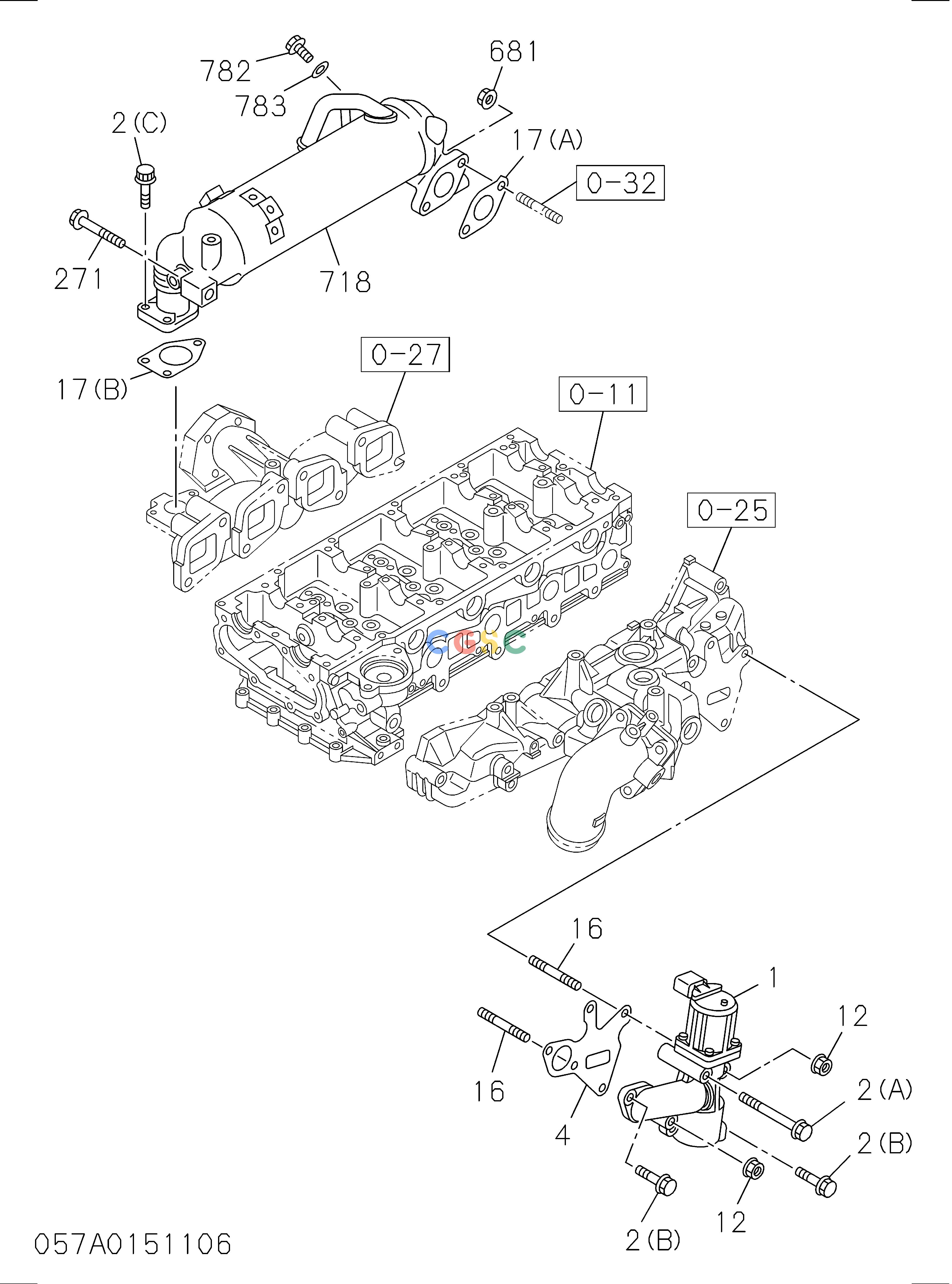

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 001. | 8981843011 | [1] | VALVE; EGR | 24V |
| 002(A). | 0280508800 | [1] | BOLT; EGR VLV | M8X80 FLANGE |
| 002(B). | 0286508250 | [2] | BOLT; EGR VLV | M8X25 FLANGE |
| 002(C). | 8971315971 | [3] | BOLT; EGR VLV | M8X35 W/PL WASHER |
| 004. | 8973841191 | [1] | GASKET; EGR VLV | C ALSO INCLUDED IN GASKET SET(ENGINE) |
| 004. | 8980945282 | [1] | GASKET; EGR VLV | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 012. | 0911802080 | [2] | NUT; EGR VLV | M8 FLANGE |
| 016. | 0410108500 | [2] | STUD; EGR VLV | M8X50 L=62 |
| 017(A). | 8973576843 | [1] | GASKET; EGR PIPE | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 017(B). | 8980175510 | [1] | GASKET; EGR PIPE | ALSO INCLUDED IN GASKET SET(ENGINE) |
| 271. | 0281510450 | [1] | BOLT; BRKT | M10X45 FLANGE |
| 681. | 0911802080 | [2] | NUT; EGR PIPE | M8 FLANGE |
| 718. | 8980681643 | [1] | COOLER; EGR | |
| 782. | 8980727120 | [1] | PLUG; EGR COLLER | |
| 783. | 9095714100 | [1] | GASKET; PLUG | ID=10.2 OD=16.0 ALSO INCLUDED IN GASKET SET(ENGINE) |
