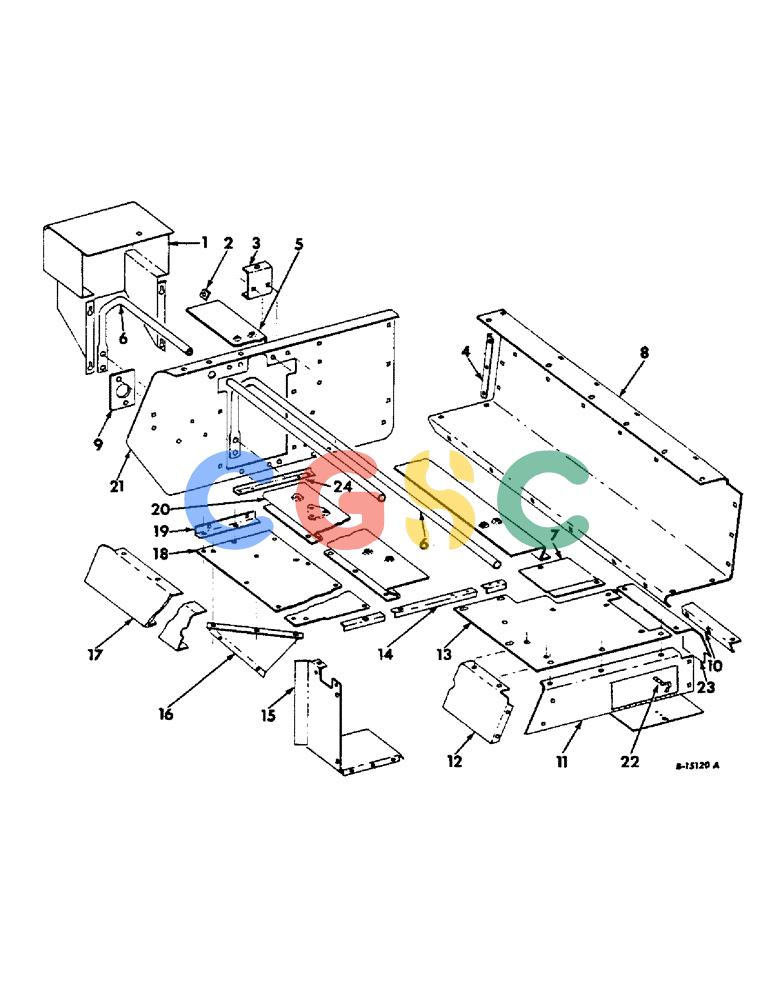

| 1. |
670449R91
|
[1] |
COVER
|
IH
ASSY, feeder
|
| . . |
18673R1
|
[4] |
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
|
IH
BOLT, 5/16 x 1/2 C-Z sq-nk crg Superseded by part number: 411-58
|
| . . |
938017R1
|
[4] |
FLANGE NUT,Flg, USR, 5/16"-18
|
IH
5/16-18 spinlock Superseded by part number: 145458
|
| . . |
20716R1
|
[1] |
SCREW,Sl Pan Hd, 5/16" - 18 x 1/2"
|
IH
5/16 x 1/2 slt pan hd C-Z
|
| . . |
80681
|
[1] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| . . |
21739R1
|
[1] |
WASHER
|
IH
11/32 x 9/16 x 16 ga C-Z Superseded by part number: 131402H
|
| 2. |
670465R1
|
[4] |
BUMPER
|
IH
crg, 000504 thru 003106
|
| . . |
18494R1
|
[4] |
BOLT,Hex, 3/8" - 16 x 1", Gr 2
|
IH
3/8 x 1 C-Z hex-hd mach Superseded by part number: 424-616
|
| . . |
120377
|
[4] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[4] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| . . |
142619H
|
[4] |
WASHER
|
IH
13/32 x 3/4 x 11 ga C-Z Superseded by part number: 86624144
|
| 2. |
202607C1
|
[2] |
STOP
|
IH
BUMPER, carriage, 003107 and up
|
| . . |
18778R1
|
[4] |
SCREW,Hex, 3/8"-16 x 3/4", G2
|
IH
BOLT, 3/8 x 3/4 znd hex-hd mach. Superseded by part number: 180120
|
| . . |
619856R1
|
[4] |
WASHER
|
IH
13/32 x 1 x 16 ga C-Z Superseded by part number: 87613182
|
| 3. |
670467R1
|
[1] |
BRACKET
|
IH
rear rail support
|
| . . |
16897R1
|
[4] |
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 5/16 x 3/4 C-Z sq-nk crg Superseded by part number: 412-512
|
| . . |
120376
|
[4] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| . . |
619855R1
|
[2] |
WASHER
|
IH
11/32 x 3/4 x 16 ga C-Z Superseded by part number: 86637953
|
| . . |
670454R1
|
[1] |
NUT
|
IH
5/16-18 speed grip
|
| 4. |
670457R1
|
[1] |
ANGLE
|
IH
cross conveyor side sheet
|
| 5. |
670466R3
|
[1] |
RAIL
|
IH
feeder crg rear
|
| . . |
18764R1
|
[7] |
HARDWARE,Hex, 5/16"-18 x 3/4", G2
|
IH
BOLT, 5/16 x 3/4 C-Z hex-hd mach Superseded by part number: 424-512
|
| 6. |
670468R91
|
[2] |
BRACKET
|
IH
PIPE ASSY, cross conveyor
|
| . . |
18684R1
|
[2] |
BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2
|
IH
3/8 x 1-1/4 C-Z sq-nk crg Superseded by part number: 550796R1
|
| . . |
17351R1
|
[2] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 C-Z sq-nk crg Superseded by part number: 88682
|
| 7. |
673996R1
|
[1] |
SUPPORT
|
IH
PLATE, cross conveyor extension LH
|
| . . |
670472R1
|
[1] |
SPRING NUT,J, Ret, 5/16"-18
|
IH
5/16-18 speed grip Superseded by part number: 131-890
|
| 8. |
670455R1
|
[1] |
GUARD
|
IH
SHEET, feed opening
|
| . . |
133837
|
[2] |
SCREW, 5/16-18 x 1 C-Z slt-f-hd
|
|
| 9. |
670531R1
|
[1] |
|
P
PLATE, pickup pivot RH brg
|
| 10. |
670458R1
|
[1] |
ANGLE
|
IH
cross deck support
|
| 11. |
673991R1
|
[1] |
DOOR SEAL
|
IH
DOOR ASSY, clean-out
|
| 12. |
670473R1
|
[1] |
SUPPORT ASSY.
|
IH
SUPPORT, cross conveyor LH front
|
| . . |
18473R1
|
[4] |
SCREW,Hex, 5/16"-18 X 5/8", G2
|
IH
BOLT, 5/16 x 5/8 C-Z hex-hd mach Superseded by part number: 326-512
|
| 13. |
670479R2
|
[1] |
PLATE
|
IH
COVER, cross conveyor LH
|
| 14. |
670641R2
|
[1] |
ANGLE
|
IH
knotter shield support
|
| . . |
144811
|
[1] |
SCREW,Sl Rnd Hd, #10 - 12 x 1/2"
|
IH
10-12 x 1/2 C-Z slt-rd-hd tap Superseded by part number: 143306C1
|
| 15. |
670460R91
|
[1] |
|
P
OPENING ASSY, feed
|
| . . |
440-12510
|
[2] |
SCREW,Cross Pan Hd, 1/4"-20 x 5/8"
|
CAS
1/4-20 x 5/8 C-Z slt-truss-hd mach Superseded by part number: 86511931
|
| . . |
120375
|
[2] |
NUT,Hex, 1/4" - 20, Gr 5
|
IH
Superseded by part number: 7770
|
| . . |
492-11025
|
[2] |
LOCK WASHER,1/4"
|
CAS
WASHER, LOCK, 1/4" Superseded by part number: 72187247, 80682
|
| 16. |
670478R1
|
[1] |
DEFLECTOR
|
IH
hay
|
| 17. |
670474R1
|
[1] |
COVER ASSY
|
IH
COVER, cross conveyor front Superseded by part number: 670474R2
|
| 18. |
670475R1
|
[1] |
PLATE
|
IH
SHEET, cross conveyor top
|
| 19. |
670477R1
|
[1] |
ANGLE
|
IH
cross conveyor side sheet front
|
| 20. |
670464R4
|
[1] |
RAIL
|
IH
feeder crg front
|
| . . |
21737R1
|
[2] |
BOLT,Sq Nk, 5/16" - 18 x 5/8", Gr 2
|
IH
5/16 x 5/8 C-Z sq-nk crg Superseded by part number: 598802R1
|
| 21. |
670453R1
|
[1] |
SHEET
|
IH
cross conveyor side
|
| . . |
18508R1
|
[4] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8 x 3/4 C-Z sq-nk crg Superseded by part number: 86508748
|
| 22. |
673995R1
|
[1] |
LATCH
|
IH
door
|
| . . |
436693
|
[2] |
SCREW,Slotted Pan Hd, #8-32 x 3/8"
|
IH
8-32 x 3/4 znd slt-pan-hd mach Superseded by part number: 470-1086
|
| . . |
120622
|
[2] |
NUT,#8-32
|
IH
Superseded by part number: 86977693
|
| . . |
121841
|
[2] |
LOCK WASHER,#8
|
IH
WASHER, LOCK, #8 Superseded by part number: 87812
|
| 23. |
200430C1
|
[1] |
BAFFLE
|
IH
breast plate
|
| 24. |
202608C1
|
[1] |
ANGLE
|
IH
carriage stop
|
