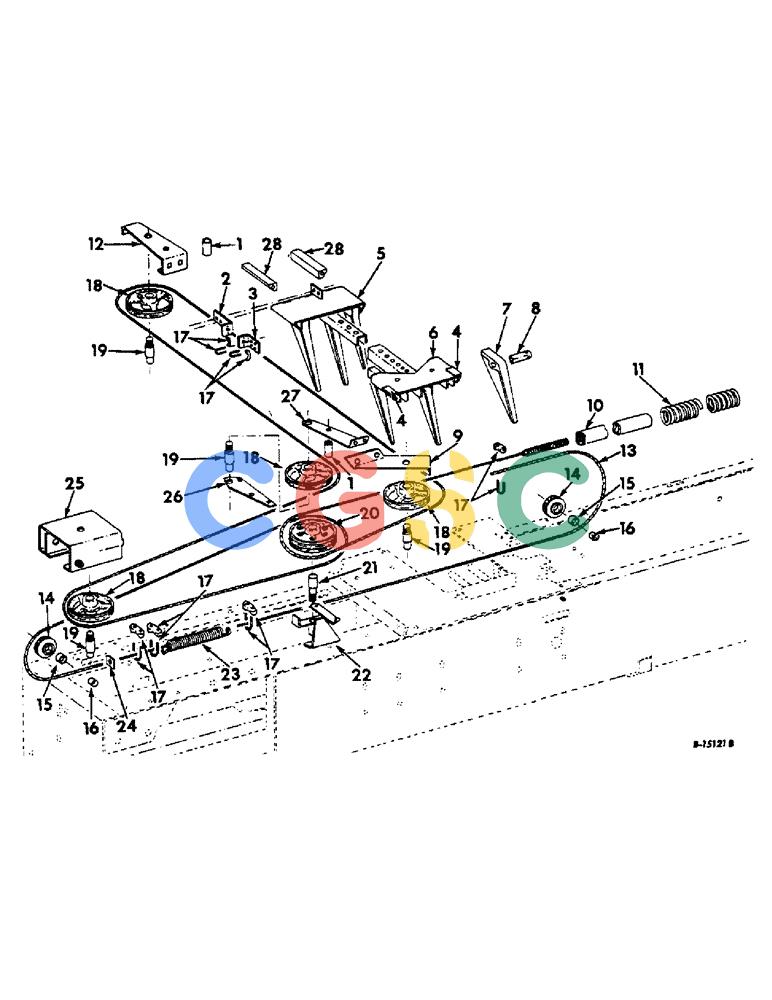

| 1. |
670491R1
|
[1] |
SPACER
|
IH
pulley center
|
| . . |
18801R1
|
[1] |
BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 2
|
IH
7/16 x 2-3/4 C-Z hex-hd mach Superseded by part number: 88870
|
| . . |
271501
|
[1] |
SOCKET
|
NNA
NUT, 7/16-14 C-Z hex.
|
| . . |
120383
|
[1] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| . . |
18784R1
|
[1] |
BOLT,Hex, 3/8"-16 x 2 3/4", G2
|
IH
3/8 x 2-3/4 C-Z hex-hd mach Superseded by part number: 88444
|
| . . |
120377
|
[1] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[1] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 2. |
670508R2
|
[1] |
BRACKET
|
IH
feeder drive, 000504 thru 003106
|
| 2. |
202609C1
|
[1] |
SUPPORT
|
IH
BRACKET, feeder drive, 003107 and up
|
| . . |
477795R1
|
[2] |
SCREW
|
IH
BOLT, 3/8-16 x 1 long-nk crg Superseded by part number: 80280503
|
| . . |
472144R1
|
[2] |
NUT
|
IH
3/8-16 C-Z hex. lock Superseded by part number: 385525R1
|
| 3. |
670507R1
|
[1] |
SUPPORT
|
IH
BRACKET, feeder cable
|
| . . |
132848
|
[2] |
SCREW,Sl Rnd Hd, #10 - 24 x 1"
|
IH
10-24 x 1 C-Z slt-rd-hd mach tension bolt Superseded by part number: 86511923
|
| . . |
120361
|
[2] |
NUT,Hex Mach Screw, #10 - 24
|
IH
Superseded by part number: 87304
|
| . . |
120217
|
[2] |
LOCK WASHER,#10
|
IH
WASHER, LOCK, #10 Superseded by part number: 80684
|
| 4. |
670514R1
|
[12] |
INSERT
|
IH
feeder crg runner, 000504 thru 003106
|
| 5. |
202616C91
|
[1] |
CARRIER
|
IH
CARRIAGE ASSY W/BLOCKS, feeder RH
|
| . . |
113-206
|
[2] |
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd
|
CAS
3/8-16 x 3/4 C-Z hex-hd cap Superseded by part number: 86500692
|
| 6. |
202615C91
|
[1] |
FRAME
|
IH
CARRIAGE ASSY W/BLOCKS, feeder LH
|
| 7. |
670515R11
|
[6] |
FINGER ASSY.
|
IH
ASSY, feeder
|
| 8. |
670517R1
|
[6] |
SHAFT
|
IH
finger pivot
|
| . . |
21628R1
|
[6] |
PIN
|
CAS
1/8 x 3/4 znp self-opening cot. Superseded by part number: 80756
|
| . . |
149750R1
|
[6] |
WASHER
|
IH
.469 x 1 x .031 flat (or as required)
|
| 9. |
670493R1
|
[1] |
BRACKET
|
IH
pulley LH
|
| . . |
18494R1
|
[1] |
BOLT,Hex, 3/8" - 16 x 1", Gr 2
|
IH
3/8 x 1 C-Z hex-hd mach Superseded by part number: 424-616
|
| . . |
18495R1
|
[1] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
|
IH
3/8 x 1-1/4 C-Z hex-hd mach Superseded by part number: 180124
|
| 10. |
200423C1
|
[1] |
GUIDE
|
IH
PILOT ASSY, feeder relief spring
|
| 11. |
520160R1
|
[1] |
SPRING
|
IH
feeder relief
|
| . . |
478258R1
|
[1] |
WASHER
|
IH
1-5/32 x 1-3/4 x 11 ga C-Z Superseded by part number: 495-81190
|
| . . |
553050R1
|
[1] |
LOCK PIN,1/4" x 1 3/4", Slotted
|
IH
Pin, 1/4" x 1 3/4", Slotted Superseded by part number: 87343
|
| . . |
120378
|
[1] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| 12. |
670492R1
|
[1] |
BRACKET
|
IH
pulley RH
|
| . . |
17351R1
|
[2] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 znd sq-nk crg Superseded by part number: 88682
|
| . . |
12872R1
|
[2] |
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
|
IH
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd Superseded by part number: 598803R1
|
| . . |
120376
|
[2] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| . . |
80681
|
[2] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 13. |
670501R11
|
[1] |
CABLE,10122mm L
|
IH
W/INSTRUCTIONS, feeder drive
|
| 14. |
670498R11
|
[2] |
PULLEY
|
IH
ASSY, idler front relief spring
|
| 15. |
670499R1
|
[2] |
BUSHING
|
IH
BEARING, idler knotter drive
|
| 16. |
670500R1
|
[2] |
BUSHING
|
IH
idler pulley
|
| . . |
18810R1
|
[1] |
BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2
|
IH
1/2 x 2-1/4 hex-hd mach Superseded by part number: 113-441
|
| . . |
120384
|
[1] |
WASHER,1/2"
|
IH
LOCK, 1/2" Superseded by part number: 116121
|
| . . |
21740R1
|
[2] |
WASHER
|
IH
17/32 x 1-1/2 x 16 ga C-Z Superseded by part number: 495-81161
|
| . . |
120238
|
[1] |
JAM NUT,Jam, 1/2"-13, G5
|
IH
1/2-13 znd hex. jam Superseded by part number: 329-148
|
| 17. |
670502R91
|
[6] |
BOLT
|
IH
CLAMP ASSY, feeder cable
|
| . . |
21739R1
|
[12] |
WASHER
|
IH
11/32 x 9/16 x 16 ga C-Z Superseded by part number: 131402H
|
| 18. |
670488R1
|
[4] |
PULLEY
|
IH
feeder drive
|
| 19. |
670487R91
|
[4] |
BALL BEARING,0.6267" ID x 1.1811" OD x 1.531"
|
IH
ASSY, feeder pulley (replaces 640487R91)
|
| 20. |
670485R1
|
[1] |
PULLEY
|
IH
plunger
|
| 21. |
674464R91
|
[1] |
BEARING ASSY,0.6267" ID x 1.1811" OD x 1.531"
|
IH
ASSY, plunger pulley, replaces 271844R91
|
| . . |
84983
|
[1] |
SET SCREW,3/8" x 1"
|
GI
SCREW, 3/8-16 x 1 znd sq-hd cup-pt set
|
| . . |
124829
|
[1] |
JAM NUT,Hex, 3/8" - 16, Gr 5
|
IH
Superseded by part number: 329-146
|
| 22. |
670480R92
|
[1] |
SUPPORT ASSY.
|
IH
BRACKET ASSY, plunger pulley Superseded by part number: 3101520R1
|
| . . |
180175
|
[3] |
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
|
IH
SCREW, 1/2-13 x 1-1/4 C-Z hex-hd cap Superseded by part number: 113-417
|
| 23. |
670503R1
|
[1] |
SPRING
|
IH
cable tension
|
| 24. |
670465R1
|
[1] |
BUMPER
|
IH
carriage
|
| . . |
668569R1
|
[1] |
WASHER
|
IH
11/32 x 1-1/2 x 11 ga C-Z Superseded by part number: 87020812
|
| 25. |
670494R91
|
[1] |
BRACKET
|
IH
ASSY, front pulley
|
| . . |
9635082
|
[1] |
NUT,5/16" - 18, Gr 5
|
NH
5/16-18 hex.
|
| 26. |
670490R1
|
[1] |
SUPPORT
|
IH
BRACKET, center pulley lower
|
| . . |
16897R1
|
[2] |
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 5/16 x 3/4 C-Z sq-nk crg Superseded by part number: 412-512
|
| . . |
619855R1
|
[2] |
WASHER
|
IH
11/32 x 3/4 x 16 ga C-Z Superseded by part number: 86637953
|
| 27. |
670489R1
|
[1] |
SUPPORT
|
IH
BRACKET, center pulley upper
|
| . . |
469668R1
|
[2] |
WASHER
|
IH
13/32 x 34 x 16 ga C-Z Superseded by part number: 86632580
|
| 28. |
202610C1
|
[4] |
BLOCK
|
IH
carriage wear, 003107 and up
|
