日立零件查询（CP220-3）065: STARTER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
748 次

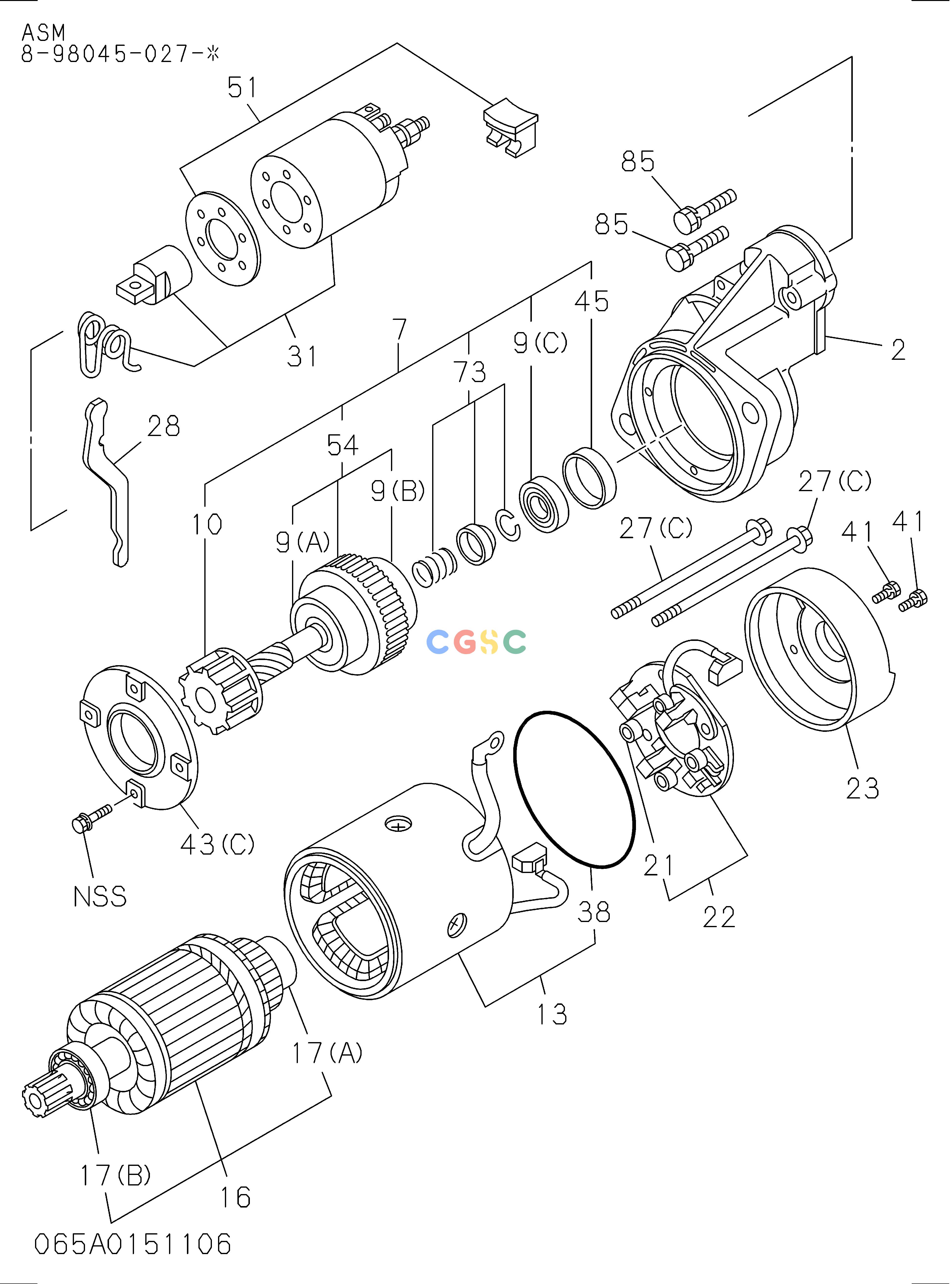

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 002. | 8980566710 | [1] | CASE; PINION,STARTER | |
| 002. | 8980566690 | [1] | CASE; PINION,STARTER | |
| 007. | 8980566640 | [1] | CLUTCH ASM; PINION,STARTER | |
| 009(A). | 8970256730 | [1] | BEARING; GEAR SHAFT STARTER | |
| 009(B). | 8970256740 | [1] | BEARING; GEAR SHAFT STARTER | |
| 009(C). | 8970256760 | [1] | BEARING; GEAR SHAFT STARTER | |
| 010. | 8980566660 | [1] | SHAFT; GEAR STARTER | |
| 013. | 8980566620 | [1] | YOKE; STARTER | |
| 013. | 8980739090 | [1] | YOKE; STARTER | |
| 016. | 8971922990 | [1] | ARMATURE; STARTER | |
| 017(A). | 8942284360 | [1] | BEARING; ARMATURE,STARTER | |
| 017(B). | 8970303870 | [1] | BEARING; ARMATURE,STARTER | |
| 021. | 8941529720 | [4] | SPRING; BRUSH HOLDER STARTER | |
| 022. | 8980566630 | [1] | HOLDER; BRUSH STARTER | C |
| 022. | 8980739330 | [1] | HOLDER; BRUSH STARTER | |
| 023. | 8973194180 | [1] | COVER; RR COVER STARTER | |
| 027(C). | 8971924230 | [2] | BOLT; THROUGH,STARTER | |
| 028. | 8971797760 | [1] | LEVER; SHIFT,STARTER | |
| 031. | 8980566670 | [1] | SWITCH; ENGAGE STARTER | |
| 038. | 8971157630 | [1] | GASKET; RR COVER,STARTER | |
| 041. | 8971171070 | [2] | SCREW; RR COVER,STARTER | |
| 043(C). | 8980566680 | [1] | RETAINER; PINION STARTER | |
| 045. | 8944355670 | [1] | RETAINER; BEARING,STARTER | |
| 051. | 8980566700 | [1] | COVER SET; DUST ENGAGE SW STARTER | |
| 054. | 8980566650 | [1] | CLUTCH; PINION,STARTER | |
| 073. | 8941529780 | [1] | STOPPER SET; PINION | |
| 085. | 8944085000 | [2] | BOLT; ENGAGE SW FIX,STARTER | |
