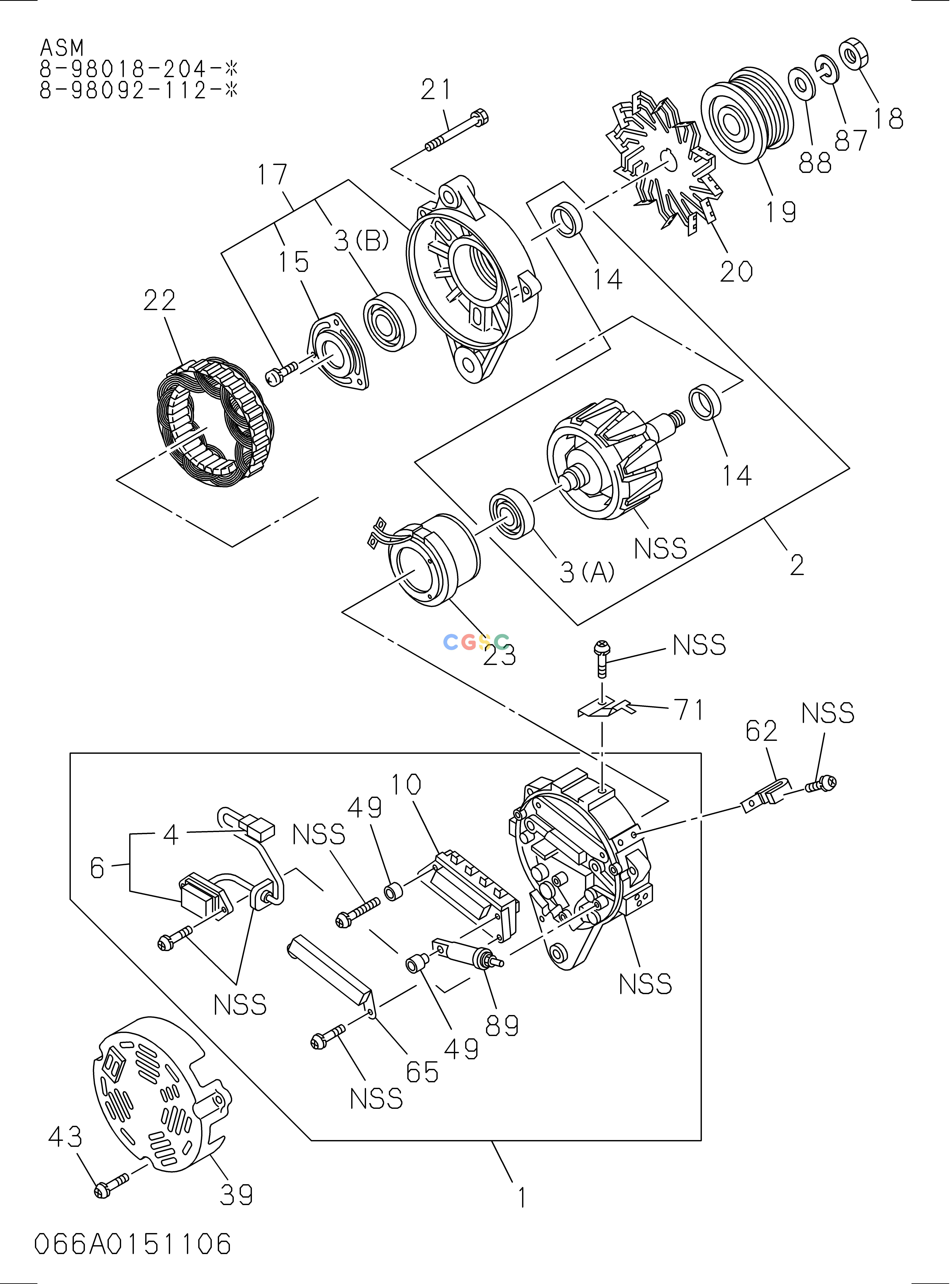

日立零件查询（CP220-3）066: GENERATOR Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
237 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 001. | 8980457280 | [1] | COVER ASM; RR,GEN | |
| 001. | 8980969760 | [1] | COVER ASM; RR,GEN | |
| 002. | 8973828690 | [1] | ROTOR; GEN | |
| 003(A). | 1812297230 | [1] | BEARING; ROTOR,GEN | |
| 003(B). | 1812297580 | [1] | BEARING; ROTOR,GEN | |
| 004. | 8973828840 | [1] | TERMINAL; BRUSH,GEN | |
| 006. | 8980923990 | [1] | REGULATOR ASM; VOLTAGE,GEN | |
| 010. | 8973828790 | [1] | RECTIFIER; GEN | |
| 014. | 8973828700 | [2] | COLLAR; STEEL | |
| 015. | 1812297601 | [1] | RETAINER; ROTOR,GEN | |
| 017. | 8980456870 | [1] | COVER ASM; FRT,GEN | |
| 018. | 1812294740 | [1] | NUT; PULLEY,GEN | |
| 019. | 8980457230 | [1] | PULLEY; GEN | |
| 020. | 8973828740 | [1] | FAN; GEN | |
| 021. | 1812293820 | [3] | BOLT; THROUGH,GEN | |
| 022. | 8973828710 | [1] | STATOR; GEN | |
| 023. | 8980362950 | [1] | COIL; ROTOR GEN | |
| 039. | 8973828821 | [1] | COVER; END,RR COVER,GEN | |
| 043. | 1812297330 | [3] | SCREW; RR END COVER | |
| 049. | 8973828800 | [2] | BUSHING; RECTIFIER,GEN | |
| 062. | 1811180110 | [1] | CLIP; TERMINAL,BRUSH,GEN | |
| 065. | 1841320120 | [1] | CONDENSER; GEN | |
| 071. | 8970290590 | [1] | HOLDER; TERMINAL,GEN | |
| 087. | 1812294790 | [1] | WASHER; PULLEY,GEN | |
| 088. | 1812294780 | [1] | WASHER; PL,PULLEY GEN | |
| 089. | 8973828810 | [1] | BOLT; RECTIFIER,GEN | |
