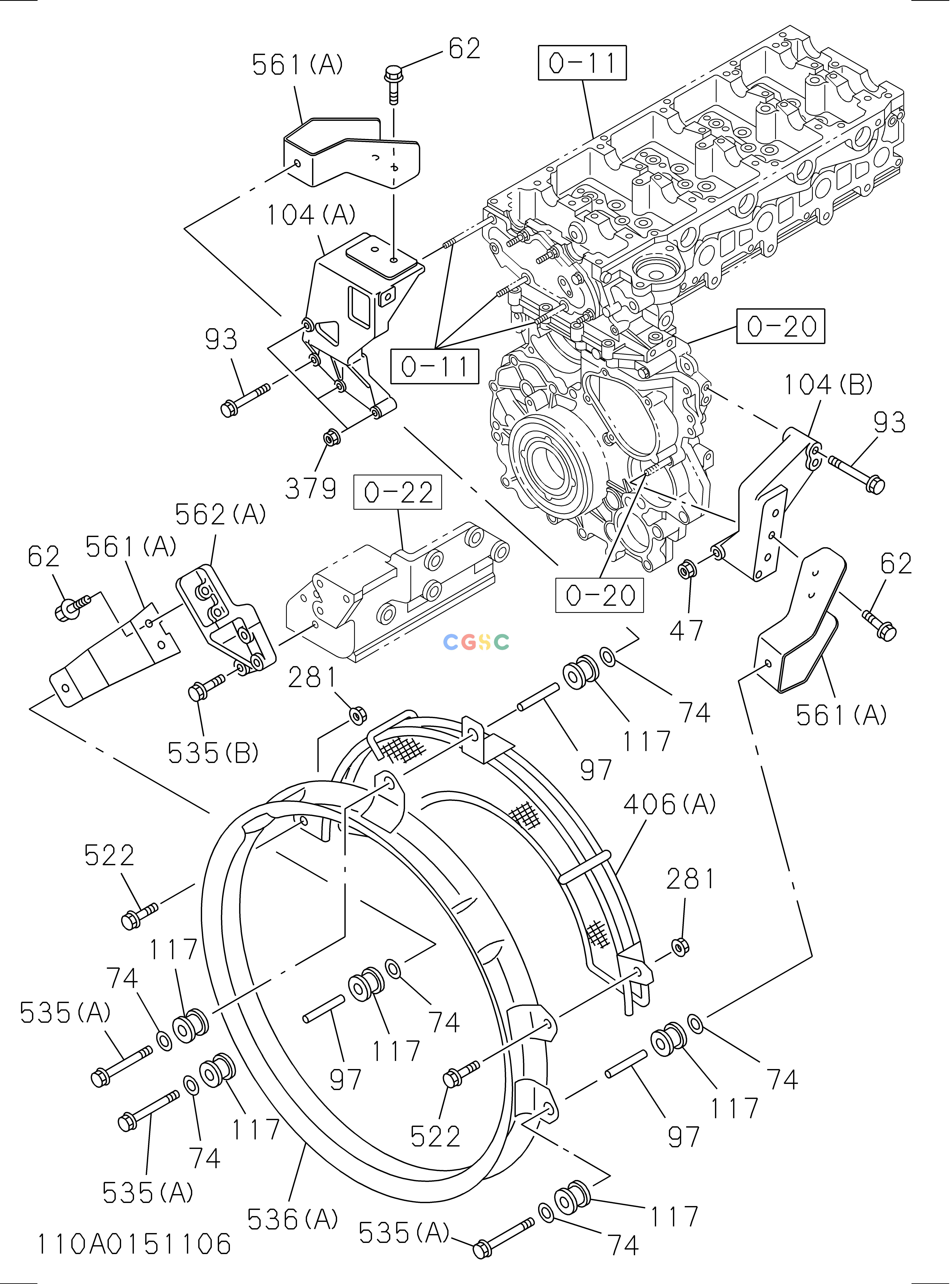

日立零件查询（CP220-3）110: RADIATOR Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
881 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 047. | 0911802080 | [1] | NUT; BRKT | M8 FLANGE |
| 062. | 0280510250 | [6] | BOLT; STAY | M10X25 FLANGE |
| 074. | 0916147100 | [6] | WASHER; PL,FAN GUIDE | ID=10.5 OD=26 |
| 093. | 0280508500 | [3] | BOLT; BRKT FIX | M8X50 FLANGE |
| 097. | 1225590260 | [3] | TUBE; DIST,FAN GUIDE | |
| 104(A). | 8980196451 | [1] | BRACKET; STAY | |
| 104(B). | 8980196471 | [1] | BRACKET; STAY | |
| 117. | 1093370170 | [6] | RUBBER; MTG,FAN GUIDE | |
| 379. | 0911802080 | [3] | NUT; BRKT FIX | M8 FLANGE |
| 406(A). | 8980120093 | [1] | GUARD; FAN | |
| 522. | 0286510200 | [2] | BOLT; FAN GUARD | M10X20 FLANGE |
| 535(A). | 0280510500 | [3] | BOLT; SHROUD FIXING | M10X50 FLANGE |
| 535(B). | 0280508450 | [4] | BOLT; SHROUD FIXING | M8X45 FLANGE |
| 536(A). | 8973711060 | [1] | SHROUD; FAN | |
| 561(A). | 8973759110 | [3] | STAY; SHROUD | |
| 562(A). | 8980196461 | [1] | BRACKET; FAN SHROUD | |
